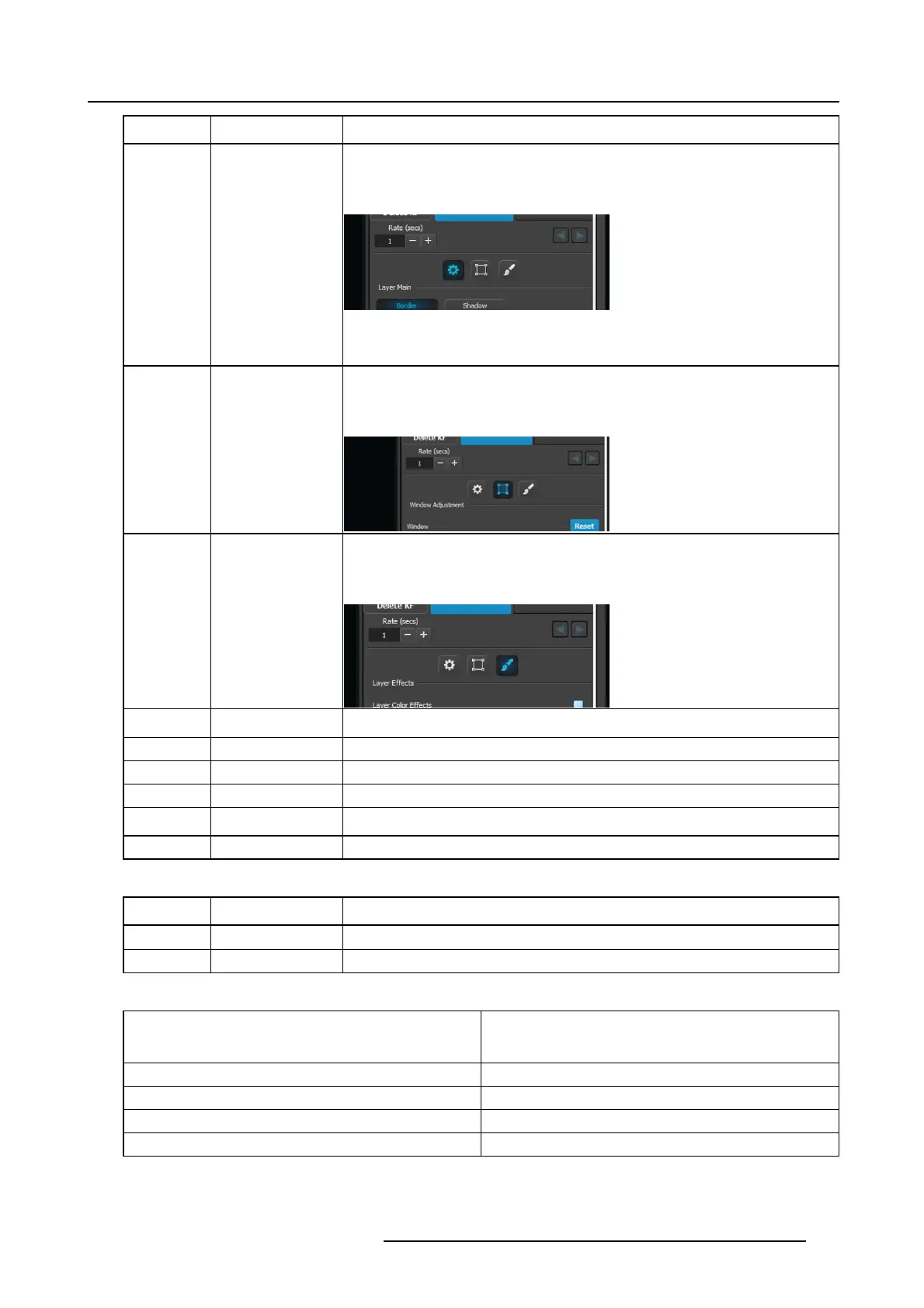

12. Controller Operation
Contextual
Button
Display Description
CD4 Main Thumbnail like G UI “Sprocket”.
Selected layer Adjus tment area is indicated by light blue backlight.
Selects and ope n the Layer Main area:
CD5 Window Thumbnail like GUI “Box”
Selected layer Adjus tment area is indicated b y light blue backlight
Selects and open the W indow Adjustment area:
CD6 Effec ts Thumbnail like GUI “Brush”
Selected layer Adjus tment area is indicated b y light blue backlight
Selects and open the Layer Effects a rea:
CD7
Layer Time
Assigns transition time for the layer like: Currently selected layers/s is a ssigned the time,
in frames for a Layer Transition. Ends with E nter.
CD8 Borderoff/on
CD9 Shadow o ff / on Toggles Bo rder setting of selected layer on vs off
CD10
Reset
Same as Reset in GUI
CD11
Full H
Same as in GU I
CD12
Full V
Same as in GU I
PAGE 2 via PG Do w n (Page1viaPG Up respectively) :
Contextual
Button
Display Description
CD1 Add K eyframe Adds Keyframe to selected Layers.
CD2 Delete Keyframe Deletes Keyframe of selected Layers.
Below layer functions will map per below:
TB/R H Pos / V Pos / Size of s elected layer
We will u se the ring on the trackball for size, the mod buttons will
toggle between H/V or H & V
WH 1 H Pos
WH 2 V Pos
WH 3 Size H
WH 4 Size V
