14. S3 Maintenance

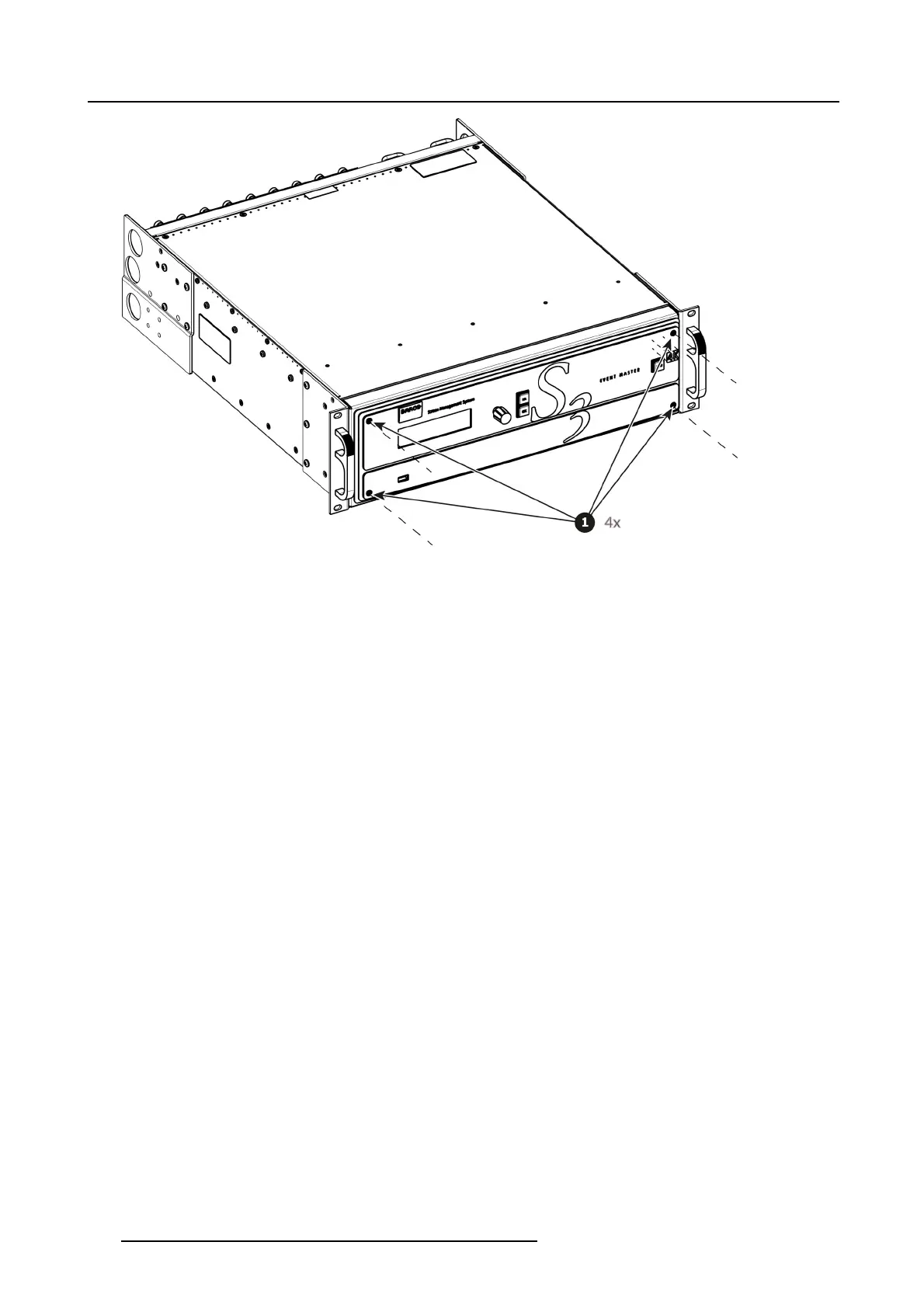

Image 14-11

2. Pull out the F ront cov er and lay it ﬂat in front of the unit.

424

R5905948 EVENT MASTER DEVICES 17/07/2017
