5. Front Panel Menu orientation
To see m ore detailed results of diagnostic testing, run diagnostics from the Event Master Toolset Software.
For details on this fonction, please refer to ch apter " Settings Menu > Web Ap p area > D as hboard", page 207
Temperature

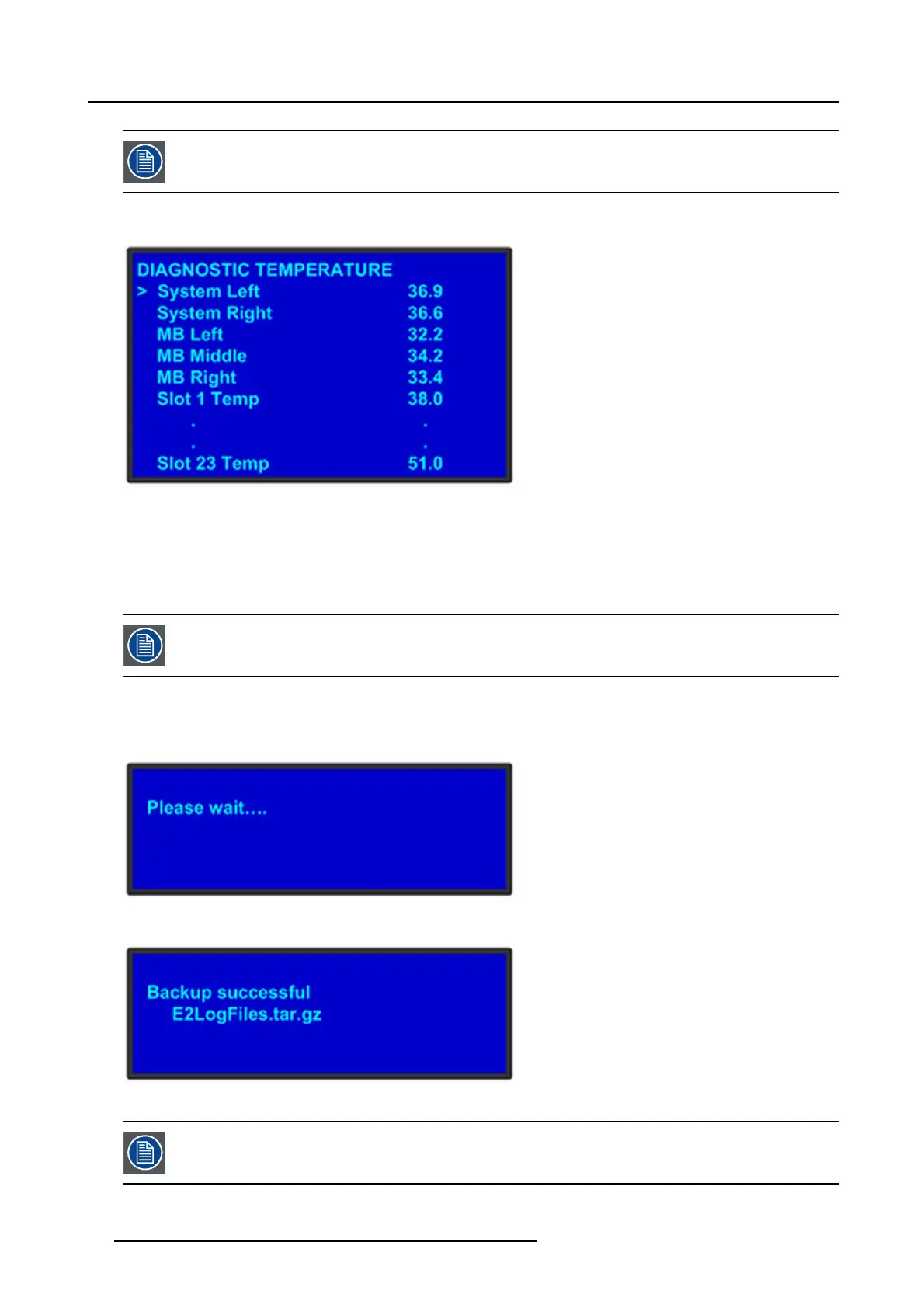

Image 5-26
The DIAGNOSTIC TEMPERATURE m enu will s how real time measurements for the System, Motherboard and all card slots. All
temperatures are shown in degrees Celsius.
Backup Log Files
Backup log files can be saved for customer service troubleshooting.
In the event the log files of the Event Mas ter unit need to be backed up, first install a USB stick in the unit’s
front p anel.
When Backup Lo g Files is s elected, the system will immediately write its log files to the USB stick. The following m enus will
be s hown during this process and the Event Master unit will automatically return to the DIAGNOST IC menu once this process is
comple te.
Image 5-27
Image 5-28
The file name will be “E2LogFiles.tar.gz”, and it can be found on the USB stick under the “E2\backup” direc-
tory.
80 R5905948 EVENT MASTER DEVICES 17/07/2017
