NOTE: If the boot configuration file is damaged, the Switch will automatically revert back to the default
configuration.
NOTE: If the boot image file is damaged, the Switch will automatically use the backup image file in the
next boot up.
Click the Copy button to see the following window.

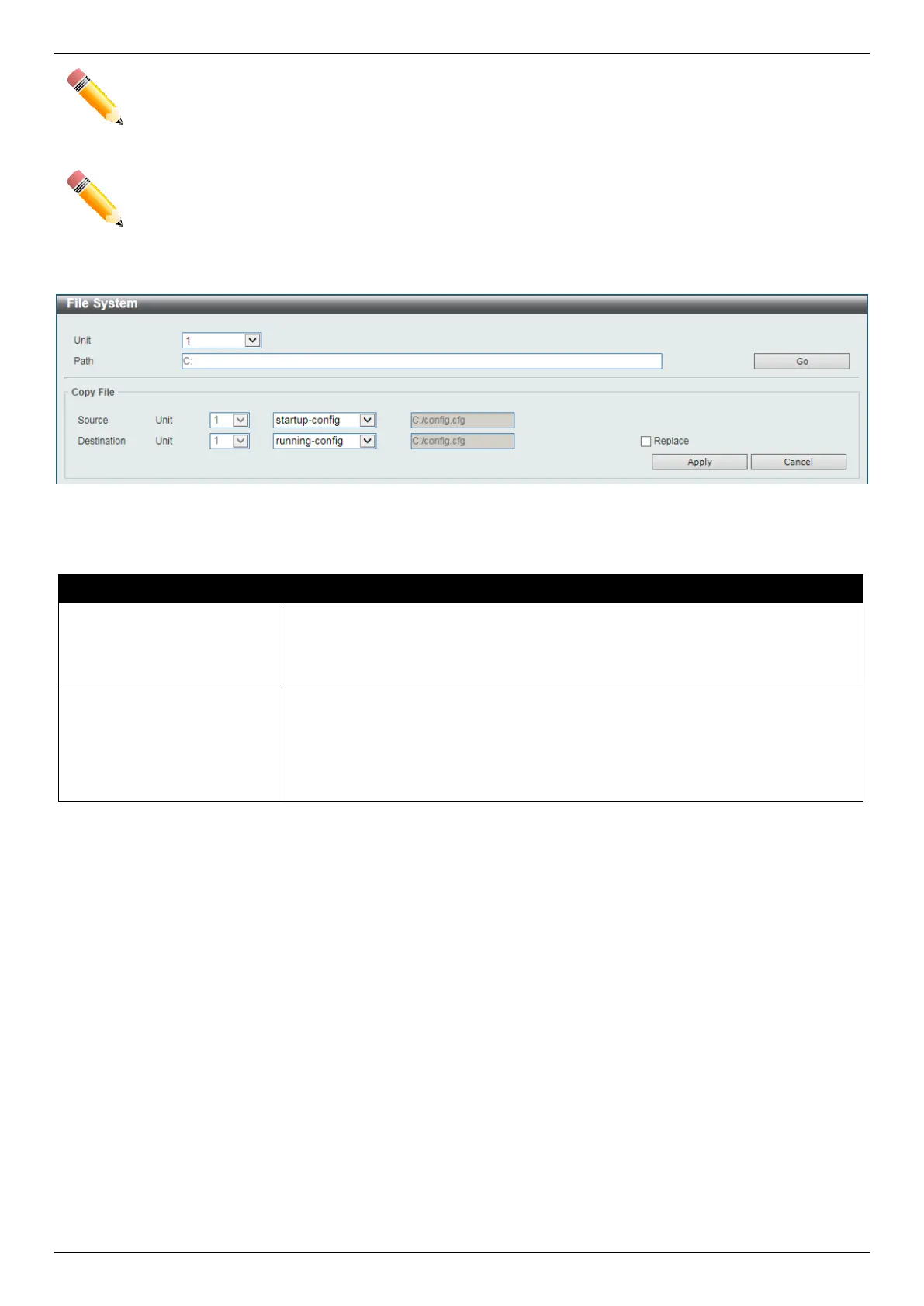

Figure 4-81 File System (Copy) Window
The fields that can be configured in Copy File are described below:
Parameter Description
Source
Select the source Switch Unit ID and type of source file that will be copied here.
Options to choose from are startup-config and Source File. Only after selecting
the Source File option can the source file path and filename be entered in the
space provided.
Destination
Select the destination Switch Unit ID and type of destination file that will be
copied here. Options to choose from are startup-config, running-config, and
Destination File. Only after selecting the Destination File option can the
destination file path and filename be entered in the space provided. Tick the
Replace check box to replace the current running configuration with the indicated
configuration file.
Click the Apply button to initiate the copy.
Click the Cancel button the discard the process.
Stacking
The Switch supports stacking 9 Switches together while being managed by one console connection to any one of the
console ports on the master Switch, or by an IP address through the MGMT port, or by multiple IP addresses through
any of the RJ45/SFP/SFP+ ports using Telnet, the Web User Interface, and SNMP. This cost effective Switch provides
an affordable solution for administrators to upgrade their networks using the SFP+ ports to scale and stack the
Switches. This increases overall reliability, serviceability, and availability of the network.
• Duplex Chain - The Duplex Chain topology stacks Switches together in a chain-link format. Using this method,
data transfer is only possible in one direction and if there is a break in the chain, then data transfer will be
affected.
• Duplex Ring - The Duplex Ring stacks Switches in a ring or circle format where data can be transferred in two
directions. This topology is very resilient due to the fact that if there is a break in the ring, data can still be
transferred through the stacking cables between Switches in the stack.
