ACL VLAN Filter
This window is used to display and configure the ACL VLAN filter settings.
To view the following window, click ACL > ACL VLAN Filter, as shown below:

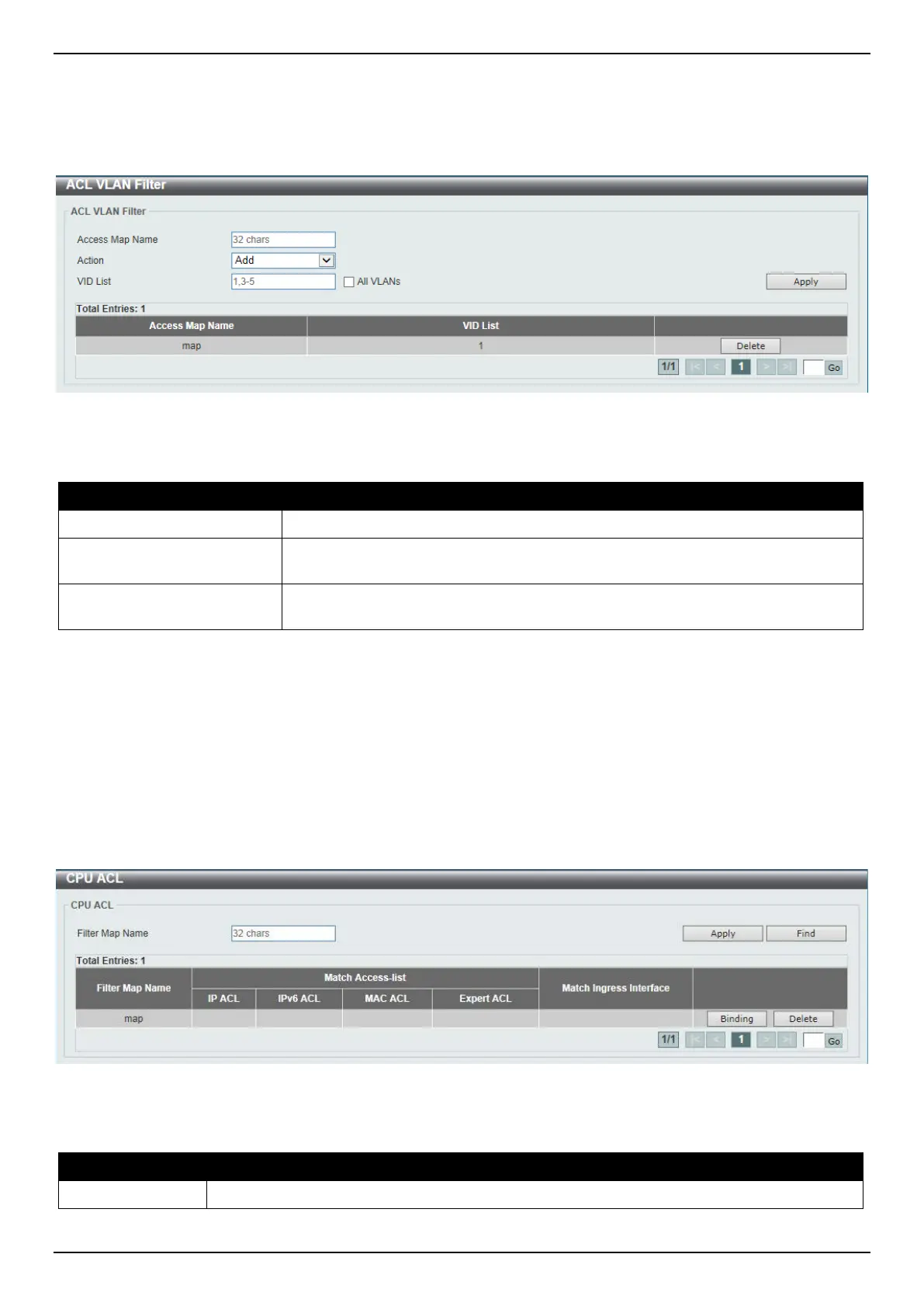

Figure 8-22 ACL VLAN Filter Window
The fields that can be configured are described below:
Parameter Description
Access Map Name
Enter the access map name here. This name can be up to 32 characters long.
Action
Select the action that will be taken here. Options to choose from are Add and
Delete.
VID List
Enter the VLAN ID list that will be used here. Select the All VLANs option to
apply this configuration to all the VLANs configured on this Switch.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
CPU ACL
This window is used to display and configure the CPU ACL settings.
To view the following window, click ACL > CPU ACL, as shown below:
Figure 8-23 CPU ACL Window
The fields that can be configured are described below:
Parameter Description
Filter Map Name
Enter the CPU ACL filter map name here. This name can be up to 32 characters long.
Click the Apply button to accept the changes made.
