DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
206
Parameter Description
are Default, IPv4 and IPv6.
Action
Select the action that will be taken here. Options to choose from are Remove and
Add.
Address
Enter the IP address that will be sent.
Click the Apply button to accept the changes made.
NOTE: The IPv4 or IPv6 address entered here should be an existing LLDP management IP address.
LLDP Management Address List
This window is used to view the LLDP management address list.
To view the following window, click L2 Features > LLDP > LLDP Management Address List, as shown below:

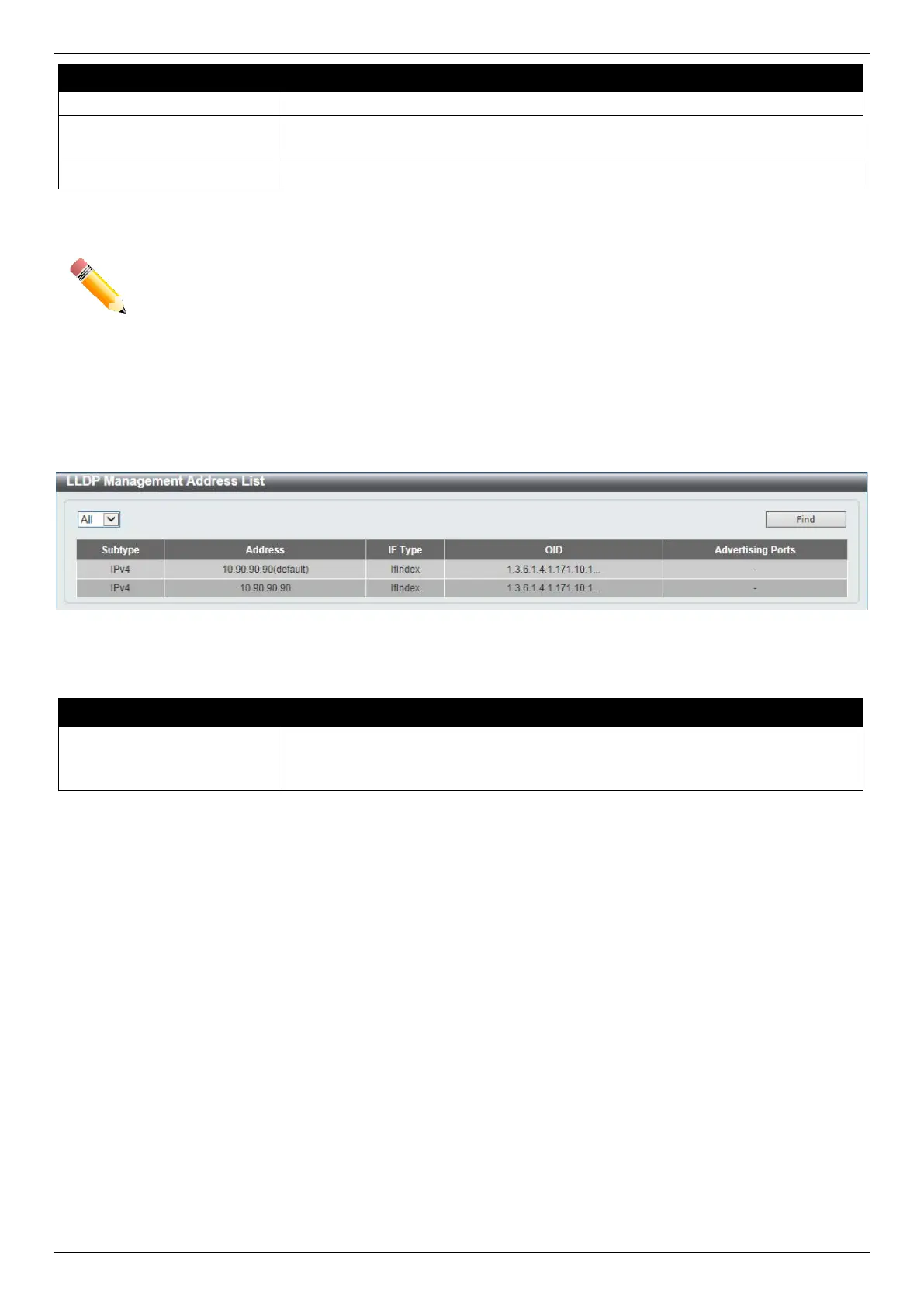

Figure 5-97 LLDP Management Address List Window
The fields that can be configured are described below:
Parameter Description
Subtype
Select the subtype. Options to choose from are All, IPv4 and IPv6. After selecting
the IPv4 option, enter the IPv4 address in the space provided. After selecting the
IPv6 option, enter the IPv6 address in the space provided.
Click the Find button to locate a specific entry based on the selection made.
LLDP Basic TLVs Settings
The Type-Length-Value (TLV) field allows specific information to be sent within LLDP packets. This window is used to
configure basic TLV settings. An active LLDP port on the Switch always includes mandatory data in its outbound
advertisements. There are four optional data types that can be configured to exclude one or more of these data types
from outbound LLDP advertisements. The mandatory data type includes four basic types of TLVs: end of LLDPDU
TLV, chassis ID TLV, port ID TLV, and TTL TLV. The mandatory data types cannot be disabled. There are also four
data types which can be optionally selected. These include: Port Description, System Name, System Description and
System Capability.
To view the following window, click L2 Features > LLDP > LLDP Basic TLVs Settings, as shown below:
