Parameter Description
VRF Name
Enter the name of the VRF instance here. This name can be up to 12 characters
long.
Interface VLAN
Enter the interface VLAN ID used here. This value must be between 1 and 4094.
IP Address
Select and enter the IP address to display here.
Mask
After the IP Address option was selected, enter the mask address for the IP
address here.
Hardware Address
Select and enter the MAC address to display here.
Type
Select the Type option here. Options to choose from are All and Dynamic.
Mgmt
Select this option to display the Management port information.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear All button to clear all dynamic ARP cache.
Click the Clear button to clear the dynamic ARP cache associated with the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Gratuitous ARP
This window is used to display and configure the gratuitous ARP settings. A gratuitous ARP request packet is an ARP
request packet where the source and the destination IP address are both set to the IP address of the sending device
and the destination MAC address is the broadcast address.
Generally, a device uses the gratuitous ARP request packet to discover whether the IP address is duplicated by other
hosts or to preload or reconfigure the ARP cache entry of hosts connected to the interface.
To view the following window, click L3 Features > Gratuitous ARP, as shown below:

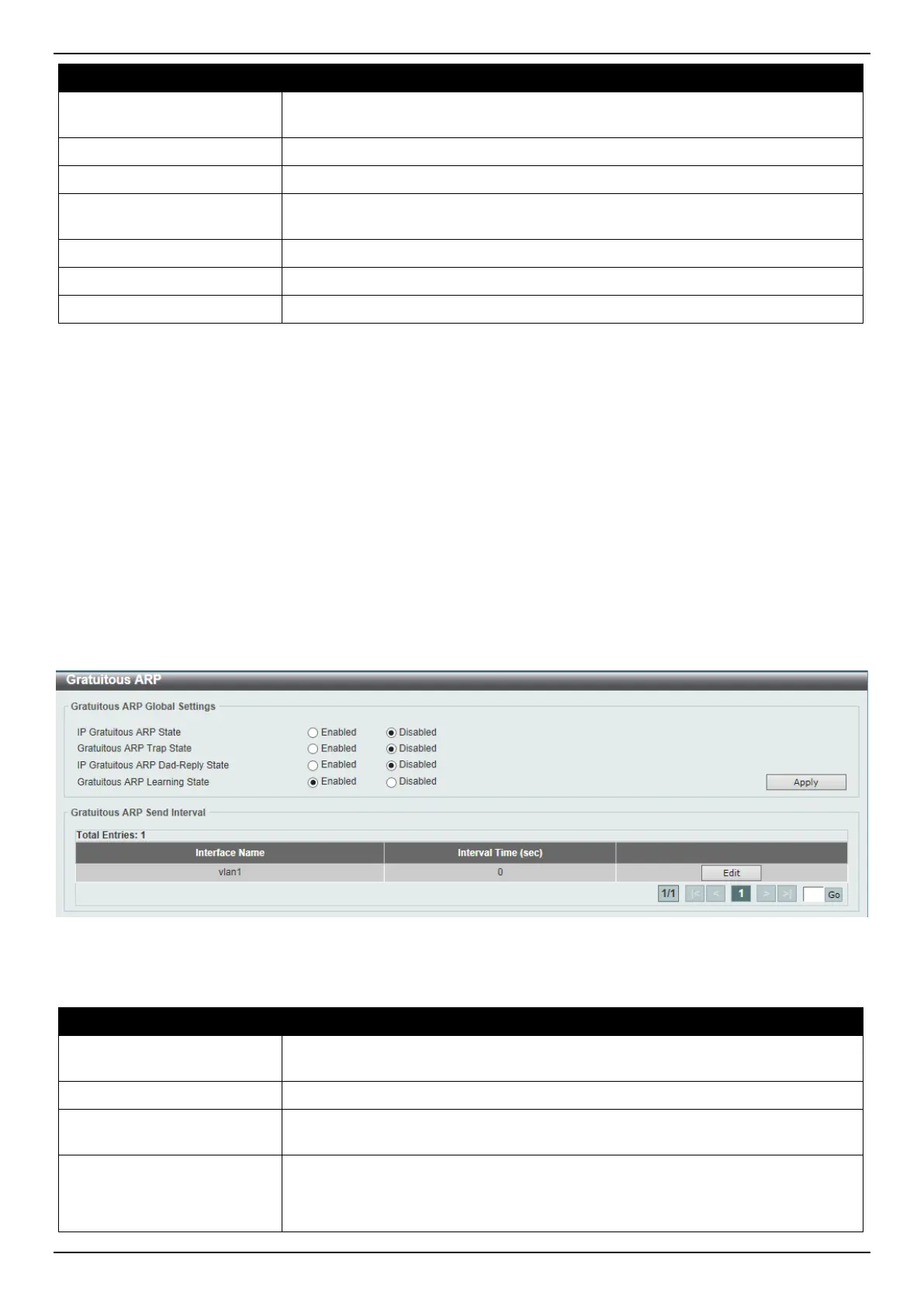

Figure 6-6 Gratuitous ARP Window
The fields that can be configured are described below:
Parameter Description
IP Gratuitous ARP State
Select to enable or disable the learning of gratuitous ARP packets in the ARP
cache table.
Gratuitous ARP Trap State
Select to enable or disable the gratuitous ARP feature trap state here.
IP Gratuitous ARP Dad-
Reply State
Select to enable or disable the IP gratuitous ARP Dad-reply state.
Gratuitous ARP Learning
State
Select to enable or disable the gratuitous ARP learning state. Normally, the
system will only learn ARP entries from ARP reply packets or a normal ARP
request packet that asks for the MAC address of the Switch IP address. This
option used to enable or disable the learning of ARP entries based on received
