Parameter Description

the space provided. This value must be between 8 and 10000000 kbps. Also,

enter the Burst Size value in the space provided. This value must be

between 0 and 128000 kilobytes.

• When Percent is selected, enter the input/output bandwidth percentage

value used in the space provided. This value must be between 1 and 100

percent (%). Also, enter the Burst Size value in the space provided. This

value must be between 0 and 128000 kilobytes.

• Select the None option to remove the rate limit on the specified port(s). The

specified limitation cannot exceed the maximum speed of the specified

interface. For the ingress bandwidth limitation, the ingress will send a pause

frame or a flow control frame when the received traffic exceeds the limitation.

Click the Apply button to accept the changes made.

Queue Rate Limiting

This window is used to display and configure the queue rate limiting settings.

To view the following window, click QoS > Basic Settings > Queue Rate Limiting, as shown below:

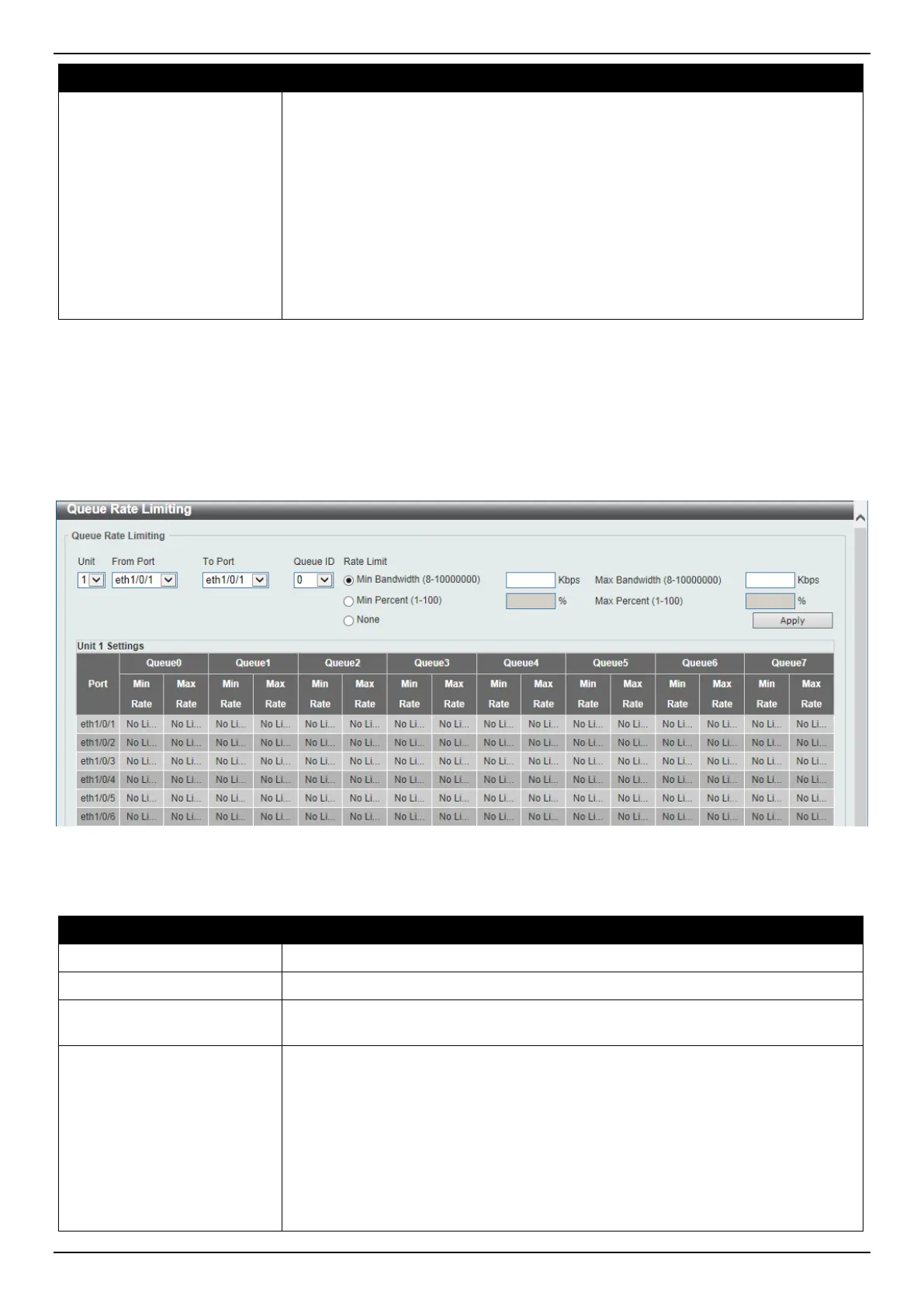

Figure 7-6 Queue Rate Limiting Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the range of ports that will be used for this configuration here.

Queue ID

Select the queue ID that will be configured here. Options to choose from are 0 to

Rate Limit

Select and enter the queue rate limit settings here.

• When the Min Bandwidth option is selected, enter the minimum bandwidth

rate limit value in the space provided. This value must be between 8 and

10000000 kbps. Also enter the maximum bandwidth (Max Bandwidth) rate

limit in the space provided. This value must be between 8 and 10000000

kbps.

When the minimal bandwidth is configured, the packet transmitted from the

queue can be guaranteed. When the maximum bandwidth is configured,

packets transmitted from the queue cannot exceed the maximum bandwidth
