Parameter Description
IPv6 Network Address
Enter the IPv6 address and prefix length here.
GE
Enter the minimum prefix length of the route that can be matched here. The range
is from 1 to 32 for IPv4 and 1 to 128 for IPv6.
LE
Enter the maximum prefix length of the route that can be matched here. The
range is from 1 to 32 for IPv4 and 1 to 128 for IPv6.
Click the Apply button to accept the changes made.
Click the Clear button to clear the information associated with the IP prefix list entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear IP All button to clear all the IP information associated with all IP prefix lists.
Click the Clear IPv6 All button to clear all the IPv6 information associated with all IP prefix lists.
Click the Edit button in the table to re-configure the specific entry.
Click the Clear button in the table to clear the information associated with the specific entry.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Route Map
This window is used to display and configure the route map settings.
To view the following window, click L3 Features > IP Route Filter > Route Map, as shown below:

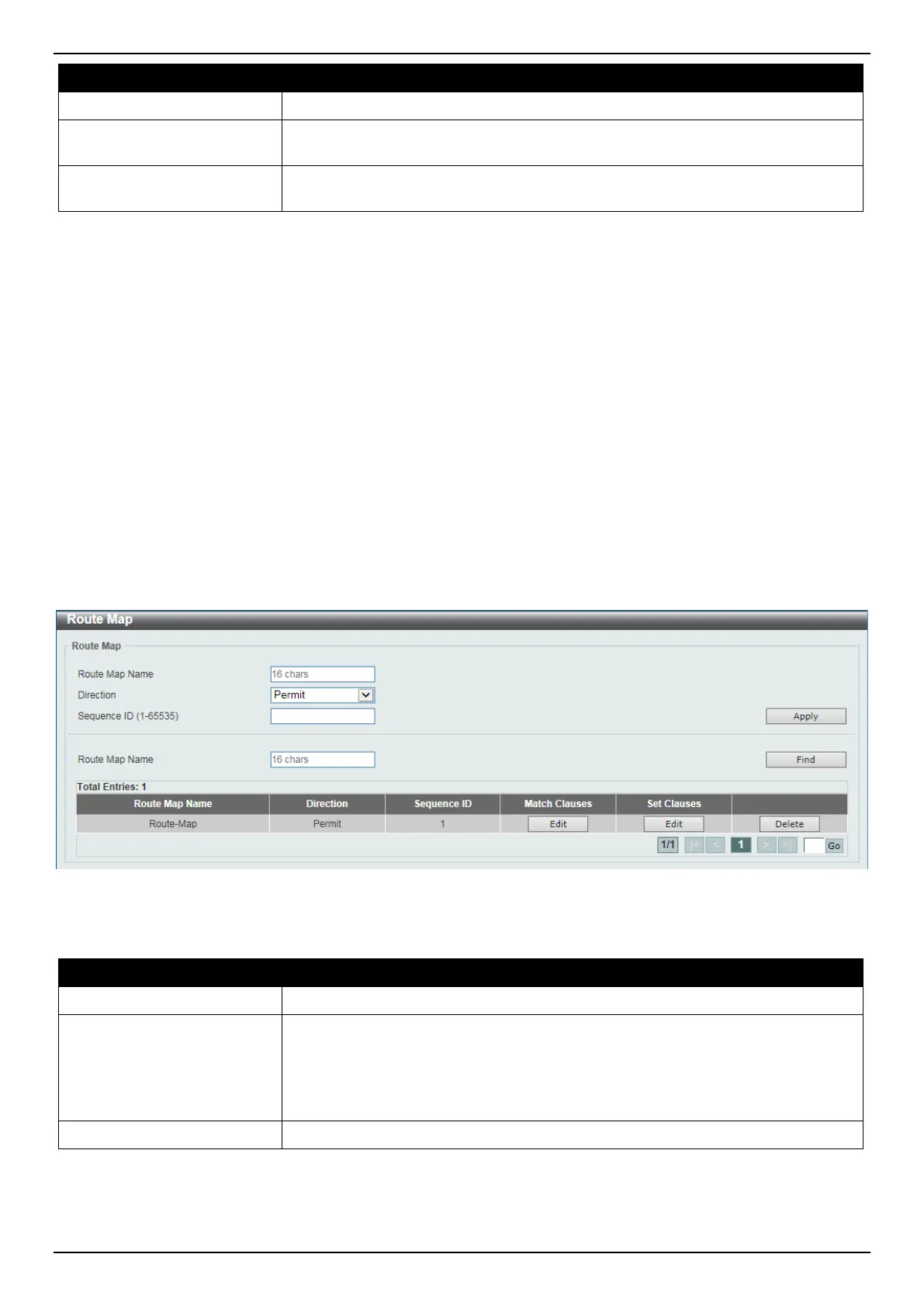

Figure 6-236 Route Map Window
The fields that can be configured are described below:
Parameter Description
Route Map Name
Enter the route map name here. This name can be up to 16 characters long.
Direction
Select the direction for this rule here. Options to choose from are Permit and
Deny.
• Permit - Specifies that routes that match the rule entry are permitted.
• Deny - Specifies that routes that match the rule entry are denied.
Sequence ID
Enter the sequence ID for this rule here. The range is from 1 to 65535.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Edit button to modify the specified entry.
