Parameter Description
• Transmit - Specifies that the exceed action is to transmit the packet
unmodified.
• Set-DSCP-1P - Specifies that the exceed action is to modify the DSCP and
802.1p values and then to transmit the packet with the new DSCP and
802.1p values. Enter the new DSCP and 802.1p values in the spaces
provided.
Violate Action
Select the violate action that will be taken here. This action will be taken on red
color packets. Option to choose from are:
• None - Specifies that no violate action will be taken.
• Drop - Specifies that the violate action is to drop the packet.
• Set-DSCP-Transmit - Specifies that the violate action is to modify the DSCP
value and then to transmit the packet with the new DSCP value. Enter the
new DSCP value in the space provided.
• Set-1P-Transmit - Specifies that the violate action is to modify the 802.1p
value and then to transmit the packet with the new 802.1p value. Enter the
new 802.1p value in the space provided.
• Transmit - Specifies that the violate action is to transmit the packet
unmodified.
• Set-DSCP-1P - Specifies that the violate action is to modify the DSCP and
802.1p values and then to transmit the packet with the new DSCP and
802.1p values. Enter the new DSCP and 802.1p values in the spaces
provided.
Color Aware
Select to enable or disable the color aware feature here. When disabled, the
policer works in the color blind mode. When enabled, the policer works in the
color aware mode.
Click the Back button to return to the previous window.
Click the Apply button to accept the changes made.
Policy Binding
This window is used to display and configure the policy binding settings.
To view the following window, click QoS > Advanced Settings > Policy Binding, as shown below:

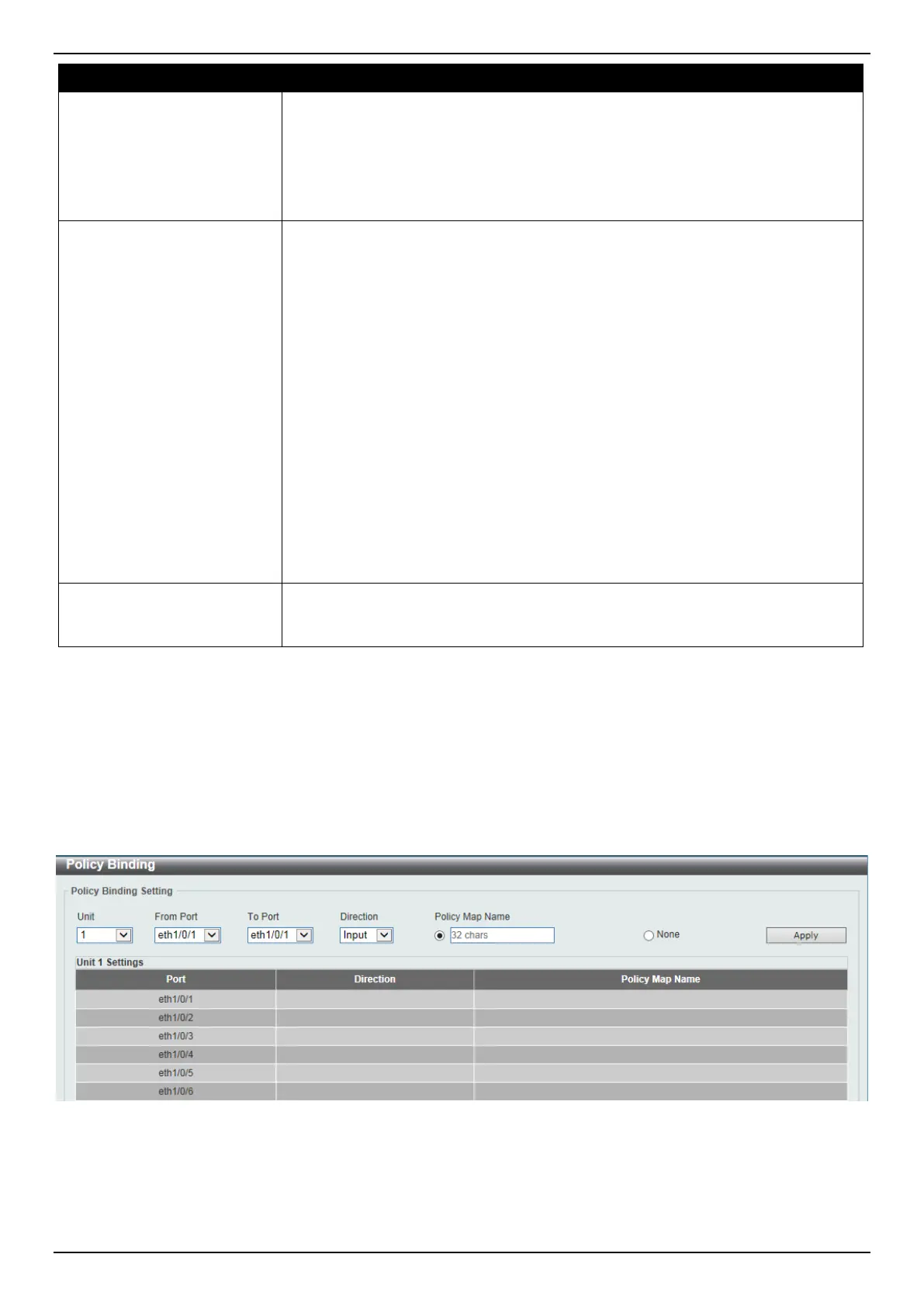

Figure 7-19 Policy Binding Window
The fields that can be configured are described below:
