Parameter Description
IPv6 Network Prefix / Prefix
Length
Select and enter the IPv6 address and prefix length value for the subnet VLAN
here.
VID
Enter the VLAN ID for the subnet VLAN here.
Priority
Select the priority value used here. This value is between 0 and 7. A lower value
takes higher priority.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Super VLAN
This window is used to display and configure the super VLAN settings. This is used to specify a VLAN as a super
VLAN. Super VLANs are used to aggregate multiple sub-VLANs (Layer 2 broadcast domains) into an IP subnet. A
super VLAN cannot have any physical member port. A super VLAN cannot be a sub-VLAN at the same time. Once an
IP interface is bound to a super VLAN, the proxy ARP will be enabled automatically on the interface for
communication between its sub-VLANs. Multiple super VLANs can be configured and each super VLAN can consist of
multiple sub-VLANs.
Private VLAN and super VLAN are mutually exclusive. A private VLAN cannot be configured as a super VLAN. Layer
3 routing protocols, multicast protocols, and the IPv6 protocol cannot run on a super VLAN interface.
To view the following window, click L2 Features > VLAN > Super VLAN, as shown below:

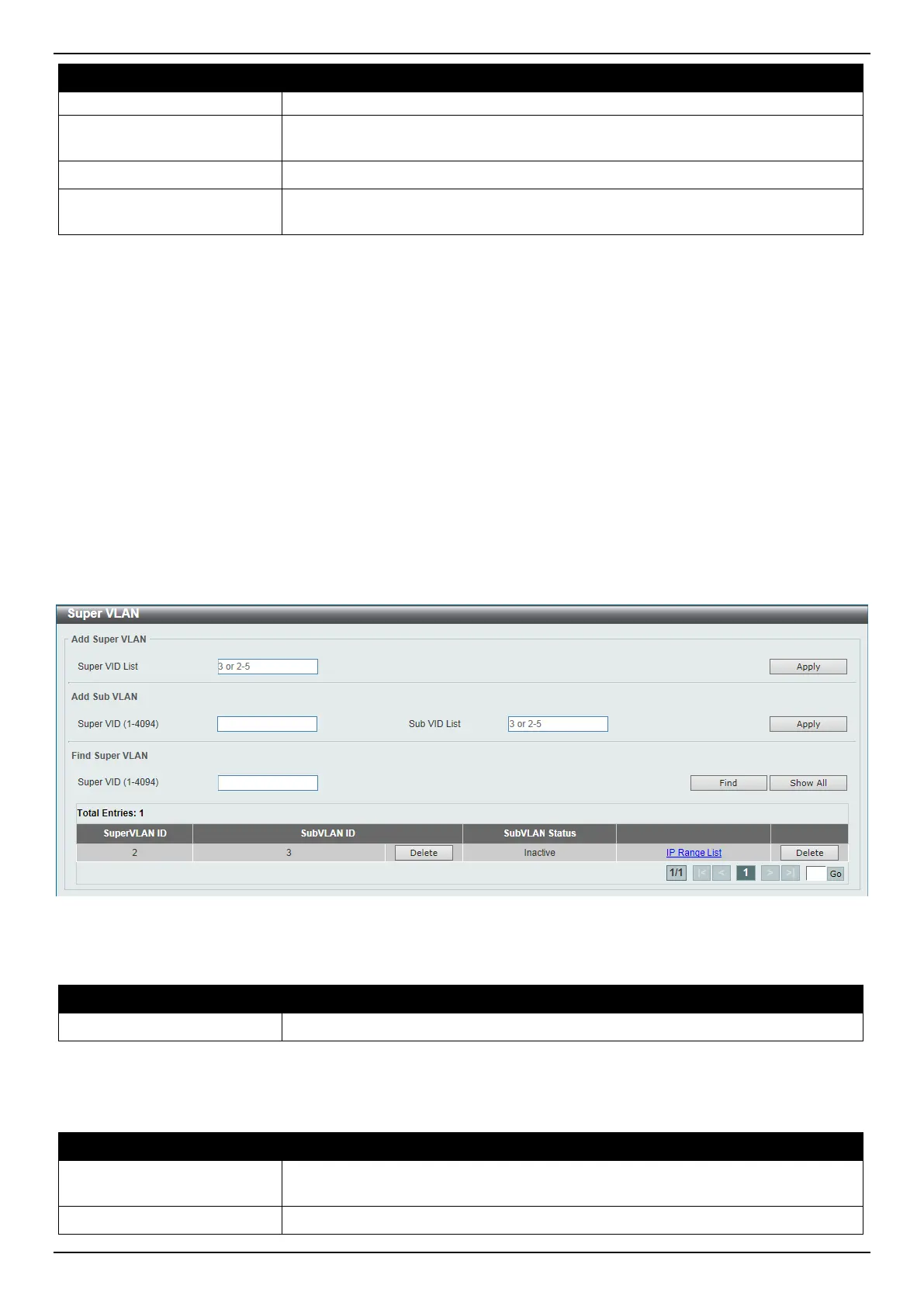

Figure 5-31 Super VLAN Window
The fields that can be configured in Add Super VLAN are described below:
Parameter Description
Super VID List
Enter the super VLAN ID(s) that will be created here.
Click the Apply button to accept the changes made.
The fields that can be configured in Add Sub VLAN are described below:
Parameter Description
Super VID
Enter the super VLAN ID that will be associated with the sub-VLAN(s) here. The
range is from 1 to 4094.
Sub VID List
Enter the sub-VLAN ID(s) that will be associated with the super VLAN here.
