DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
404

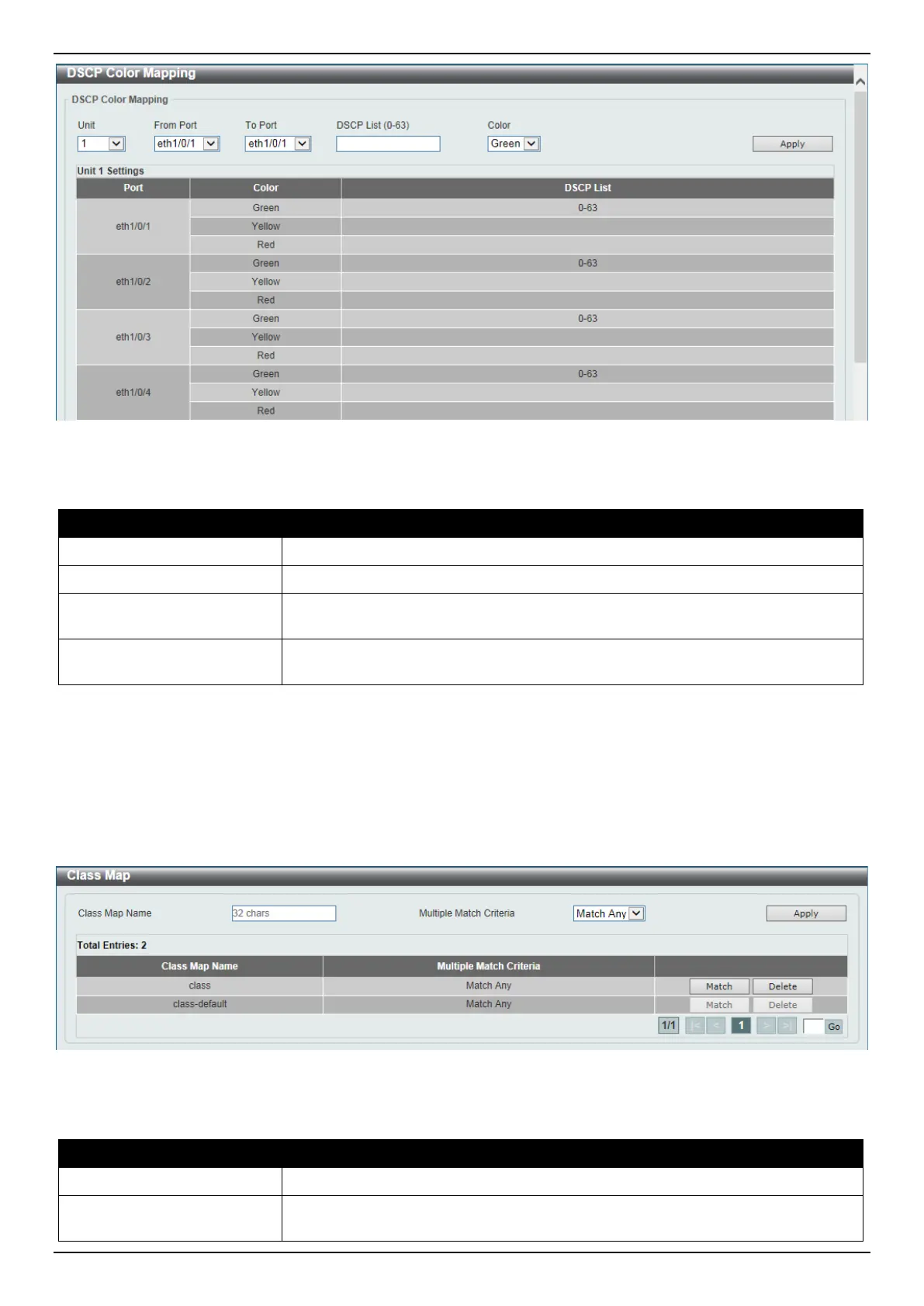

Figure 7-11 DSCP Color Mapping Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
DSCP List
Enter the DSCP list value here that will be mapped to a color. This value must be
between 0 and 63.
Color
Select the color option that will be mapped to the DSCP value. Options to choose
from are Green, Yellow, and Red.
Click the Apply button to accept the changes made.
Class Map
This window is used to display and configure the class map settings.
To view the following window, click QoS > Advanced Settings > Class Map, as shown below:
Figure 7-12 Class Map Window
The fields that can be configured are described below:
Parameter Description
Class Map Name
Enter the class map name here. This name can be up to 32 characters long.
Multiple Match Criteria
Select the multiple match criteria option here. Options to choose from are Match
All and Match Any.
