DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
131

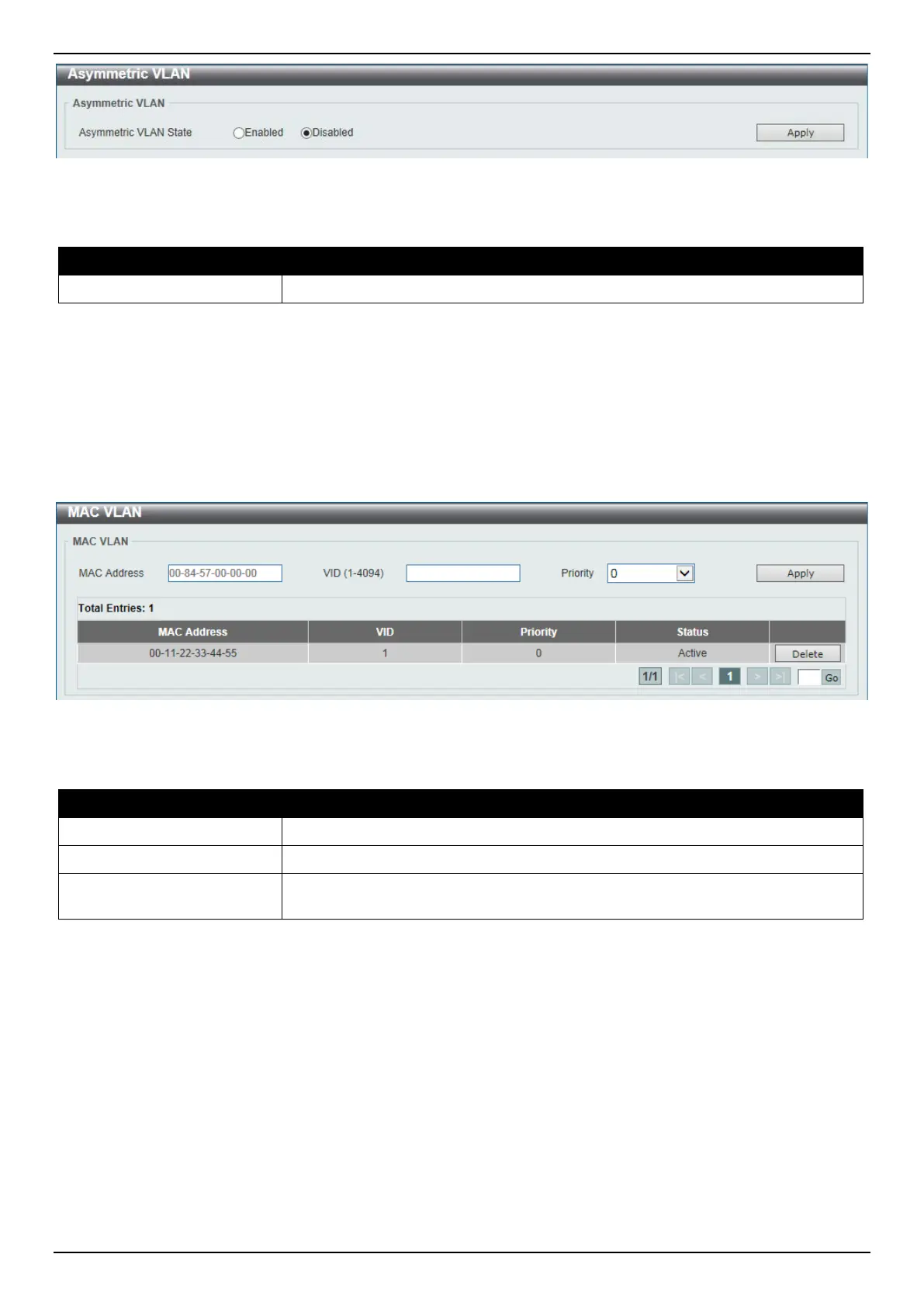

Figure 5-17 Asymmetric VLAN Window
The fields that can be configured are described below:
Parameter Description
Asymmetric VLAN State
Select to enable or disable the asymmetric VLAN feature here.
Click the Apply button to accept the changes made.
MAC VLAN
This window is used to display and configure the MAC-based VLAN information. When a static MAC-based VLAN
entry is configured, the VLAN operating on the port will be changed.
To view the following window, click L2 Features > VLAN > MAC VLAN, as shown below:
Figure 5-18 MAC VLAN Window
The fields that can be configured are described below:
Parameter Description
MAC Address
Enter the unicast MAC address.
VID
Enter the VLAN ID that will be used.
Priority
Select the priority that is assigned to untagged packets. This value is between 0
and 7.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
VLAN Interface
This window is used to display and configure the VLAN interface settings.
To view the following window, click L2 Features > VLAN > VLAN Interface, as shown below:
