Click the Apply button to accept the changes made.
After clicking the Please Select button, the following window will appear:

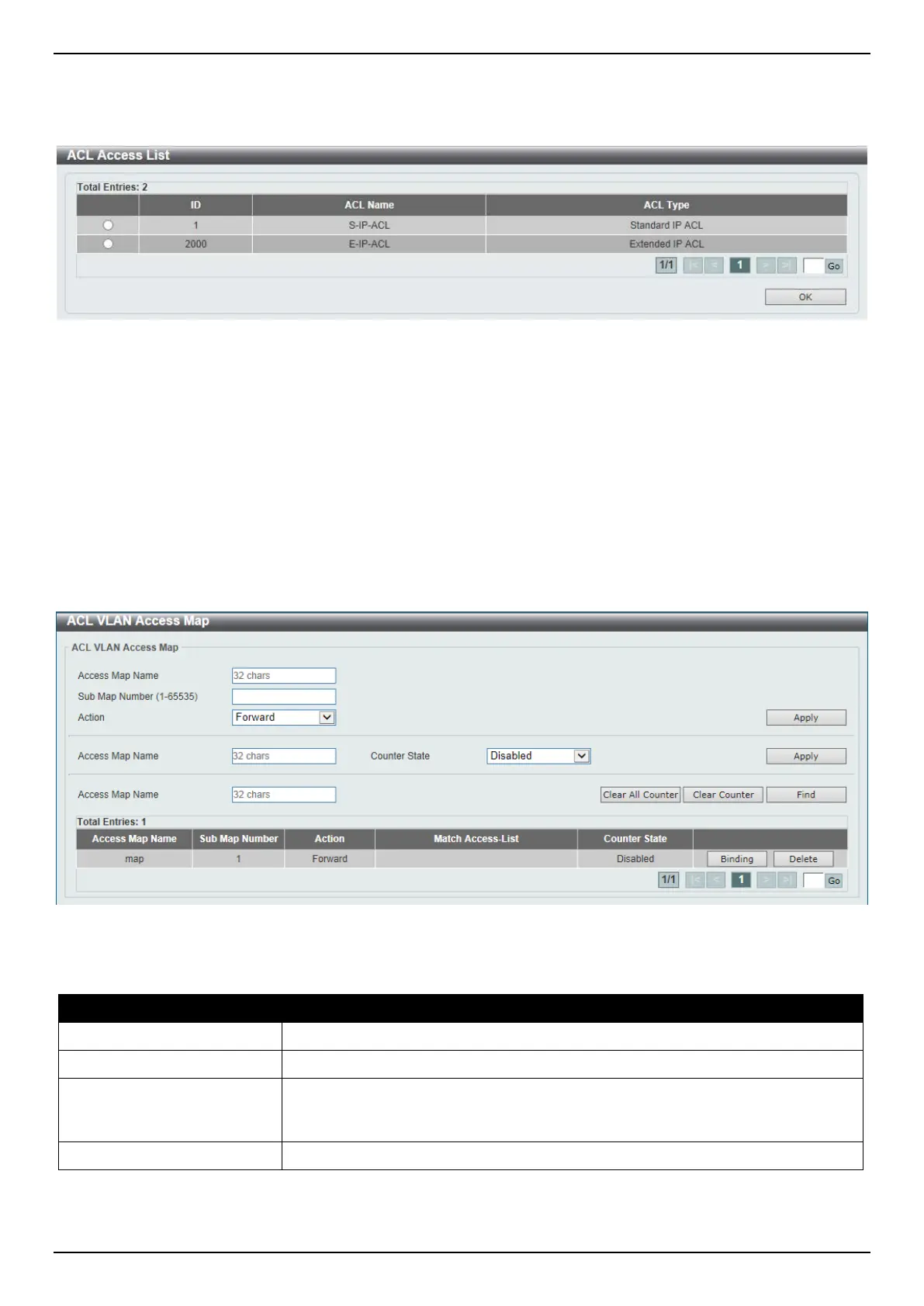

Figure 8-18 ACL Interface Access Group (Please Select) Window
Select the radio button next to the entry to use that ACL in the configuration.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the OK button to accept the selection made.
ACL VLAN Access Map
This window is used to display and configure the ACL VLAN access map settings.
To view the following window, click ACL > ACL VLAN Access Map, as shown below:
Figure 8-19 ACL VLAN Access Map Window
The fields that can be configured are described below:
Parameter Description
Access Map Name
Enter the access map name here. This name can be up to 32 characters long.
Sub Map Number
Enter the sub-map number here. This value must be between 1 and 65535.
Action
Select the action that will be taken here. Options to choose from are Forward,
Drop, and Redirect. When the Redirect option is selected, select the redirected
interface from the drop-down list.
Counter State
Select whether to enable or disable the counter state.
Click the Apply button to accept the changes made.
Click the Clear All Counter button to clear the counter information for all the access maps.
