DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
151

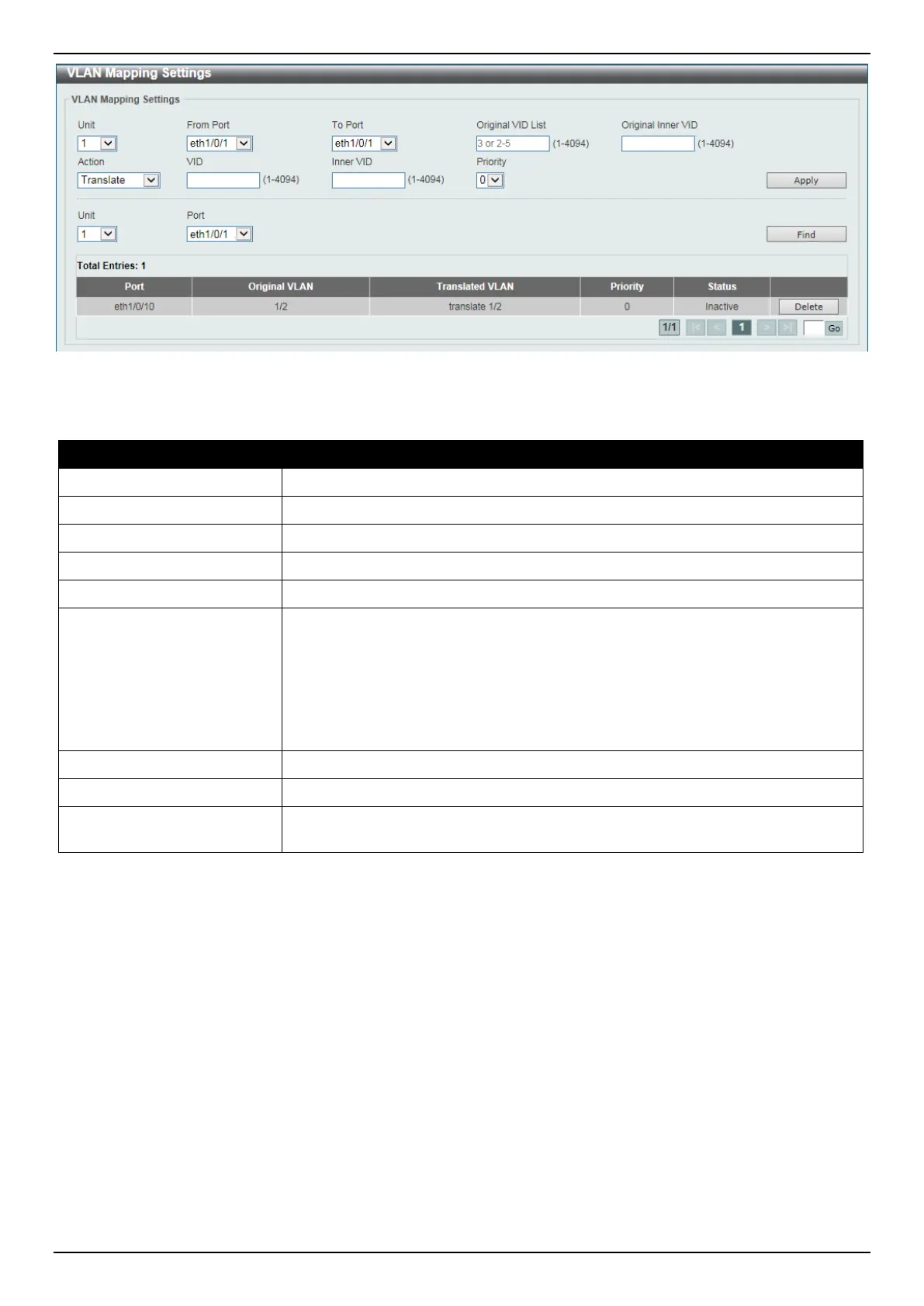

Figure 5-44 VLAN Mapping Settings Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit ID that will be used here.
From Port - To Port
Select the port range that will be used here.
Port
Select the port that will be used for the search here.
Original VID List
Enter the original VLAN ID list here. The range is from 1 to 4094.
Original Inner VID
Enter the original inner VLAN ID here. The range is from 1 to 4094.
Action
Select the action that will be taken here. Options to choose from are Translate
and Dot1q-tunnel.
• Translate - Specifies that the outer-VID will replace the outer-VID of the
matched packets.
• Dot1q-tunnel - Specifies that the outer-VID will be added for matched
packets.
VID
Enter the VLAN ID here. The range is from 1 to 4094.
Inner VID
Enter the inner VLAN ID here. The range is from 1 to 4094.
Priority
Select the 802.1p priority value here. The range is from 0 to 7. A lower value has
a higher priority.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete button to delete the specified entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
VLAN Mapping Profile
This window is used to display and configure the VLAN mapping profile settings.
To view the following window, click L2 Features > VLAN Tunnel > VLAN Mapping Profile, as shown below:
