DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
126
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
802.1v Protocol VLAN
Protocol VLAN Profile
This window is used to display and configure 802.1v protocol VLAN profiles. The 802.1v Protocol VLAN group settings
support multiple VLANs for each protocol and allow the user to configure untagged ports of different protocols on the
same physical port. For example, it allows the user to configure an 802.1Q and 802.1v untagged port on the same
physical port.
To view the following window, click L2 Features > VLAN > 802.1v Protocol VLAN > Protocol VLAN Profile, as
shown below:

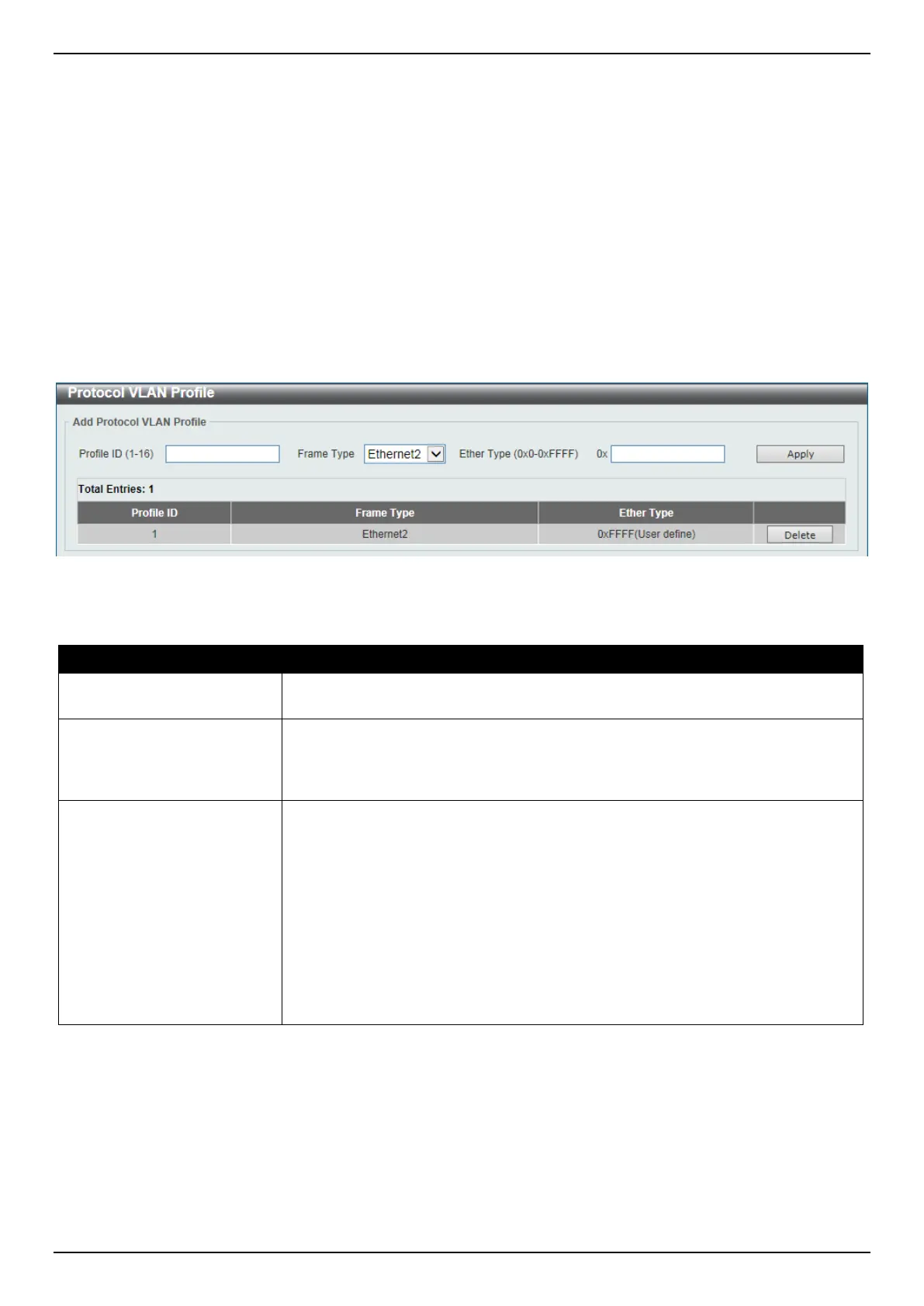

Figure 5-10 Protocol VLAN Profile Window
The fields that can be configured are described below:
Parameter Description
Profile ID
Enter the 802.1v protocol VLAN profile ID here. This value must be between 1
and 16.
Frame Type
Select the frame type option here. This function maps packets to protocol-defined
VLANs by examining the type octet within the packet header to discover the type
of protocol associated with it. Options to choose from are Ethernet 2, SNAP, and
LLC.
Ether Type
Enter the Ethernet type value for the group here. The protocol value is used to
identify a protocol of the frame type specified. The range of values are 0x0 to
0xFFFF. Depending on the frame type, the octet string will have one of the
following values:
• For Ethernet 2, this is a 16-bit (2-octet) hex value. For example, IPv4 is
0800, IPv6 is 86DD, ARP is 0806, etc.
• For IEEE802.3 SNAP, this is a 16-bit (2-octet) hex value.
• For IEEE802.3 LLC, this is a 2-octet IEEE 802.2 Link Service Access Point
(LSAP) pair. The first octet is for Destination Service Access Point (DSAP)
and the second octet is for Source.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Protocol VLAN Profile Interface
This window is used to display and configure the protocol VLAN profile interface settings.
To view the following window, click L2 Features > VLAN > 802.1v Protocol VLAN > Protocol VLAN Profile
Interface, as shown below:
