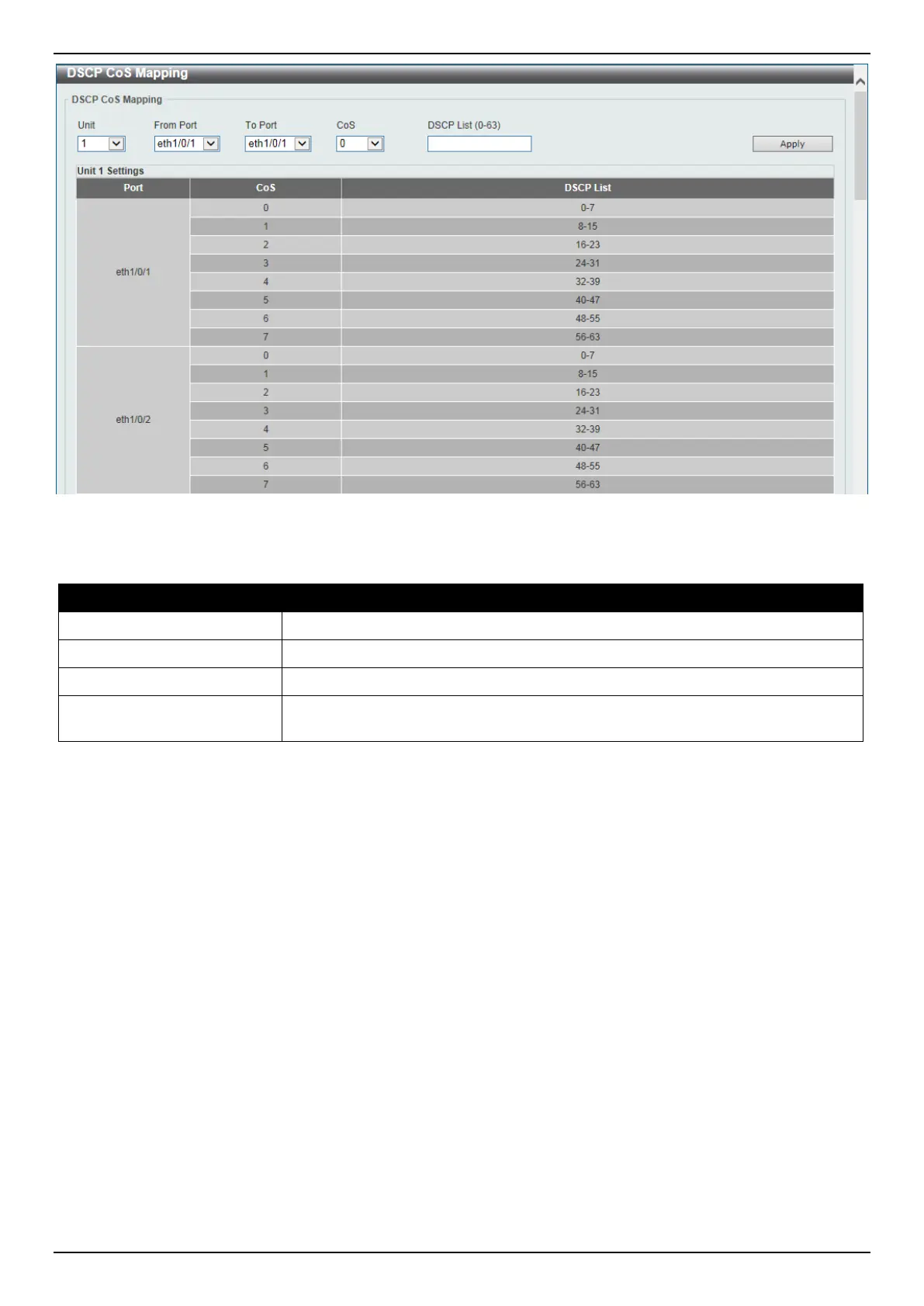

Figure 7-9 DSCP CoS Mapping Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
CoS
Select the CoS value to map to the DSCP list. Options to choose from are 0 to 7.
DSCP List
Enter the DSCP list value to map to the CoS value here. This value must be
between 0 and 63.
Click the Apply button to accept the changes made.
CoS Color Mapping
This window is used to display and configure the CoS color mapping settings.
To view the following window, click QoS > Advanced Settings > CoS Color Mapping, as shown below:
