Parameter Description
Match
CoS
Select the IEEE 802.1Q Class of Service (CoS) value to be matched here. The range is from 0 to 7.
When a packet is received, the packet will be given an internal CoS. This internal CoS is used to
select the transmit queue based on the CoS to queue map. The CoS queue with a higher number will
receive a higher priority. Select to None option to disable the matching of CoS values.
Click the Back button to return to the previous window.
Click the Apply button to accept the changes made.
Network QoS Policy Map
This window is used to display and configure the network QoS policy map settings.
To view the following window, click QoS > QoS PFC > Network QoS Policy Map, as shown below:

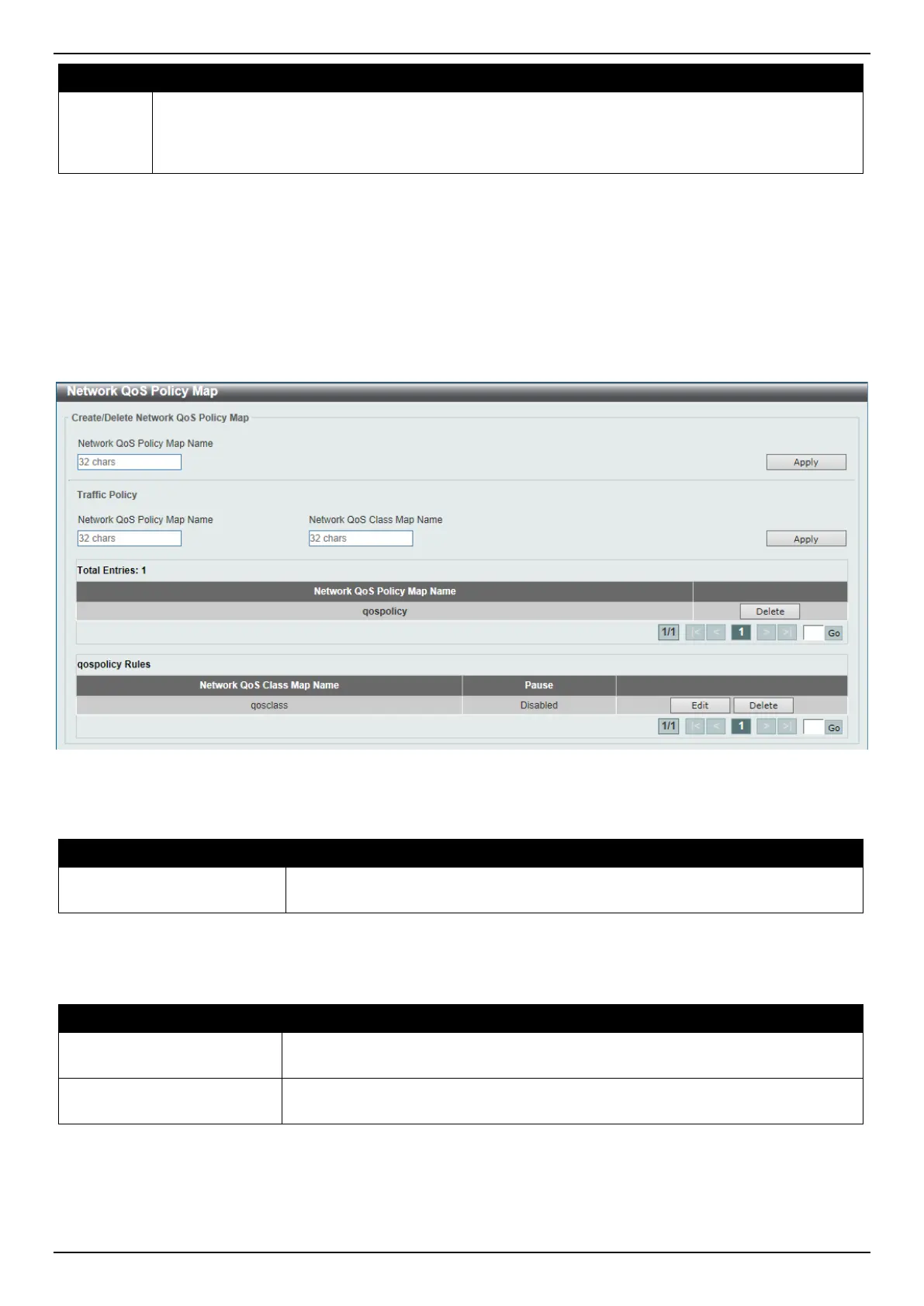

Figure 7-22 Network QoS Policy Map Window
The fields that can be configured in Create/Delete Network QoS Policy Map are described below:
Parameter Description
Network QoS Policy Map
name
Enter the network QoS policy map name here. This name can be up to 32
characters long.
Click the Apply button to accept the changes made.
The fields that can be configured in Traffic Policy are described below:
Parameter Description
Network QoS Policy Map
Name
Enter the network QoS policy map name here that will be associated with the
class map. This name can be up to 32 characters long.
Network QoS Class Map
Name
Enter the network QoS class map name here that will be associated with the
policy map. This name can be up to 32 characters long.
Click the Apply button to accept the changes made.
Click the Edit button to modify the specified entry.
Click the Delete button to delete the specified entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
