Parameter Description
• Prefix - Specifies to display information on the intra-area-prefix LSAs.
• Link - Specifies to display information about the link LSAs.
• Inter-Area Prefix - Specifies to display information only about LSAs based
on inter-area prefix LSAs.
• Inter-Area Router - Specifies to display information only about LSAs based
on inter-area router LSAs.
• External - Specifies to display information only about the external LSAs.
Area ID
Select the area ID option here. Options to choose from are All and Area ID. To
display all the LSAs of the specified area, select the Area ID option and enter the
OSPF area ID in the space provided. It can be specified as an IPv4 address.
Link State
Select the link state option here. Options to choose from are All, Self Originate,
and Adv Router.
• All - Specifies to display all the LSAs.
• Self Originate - Specifies to display only self-originated LSAs (from the local
router).
• Adv-Router - Specifies to display all the LSAs of the advertising router.
Enter the router ID in the space provided. The router ID can be specified as
an IPv4 address.
Click the Find button to locate a specific entry based on the information entered.
Click the Show Detail button to view more detailed information for the specified entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Show Detail button, the following page will appear.

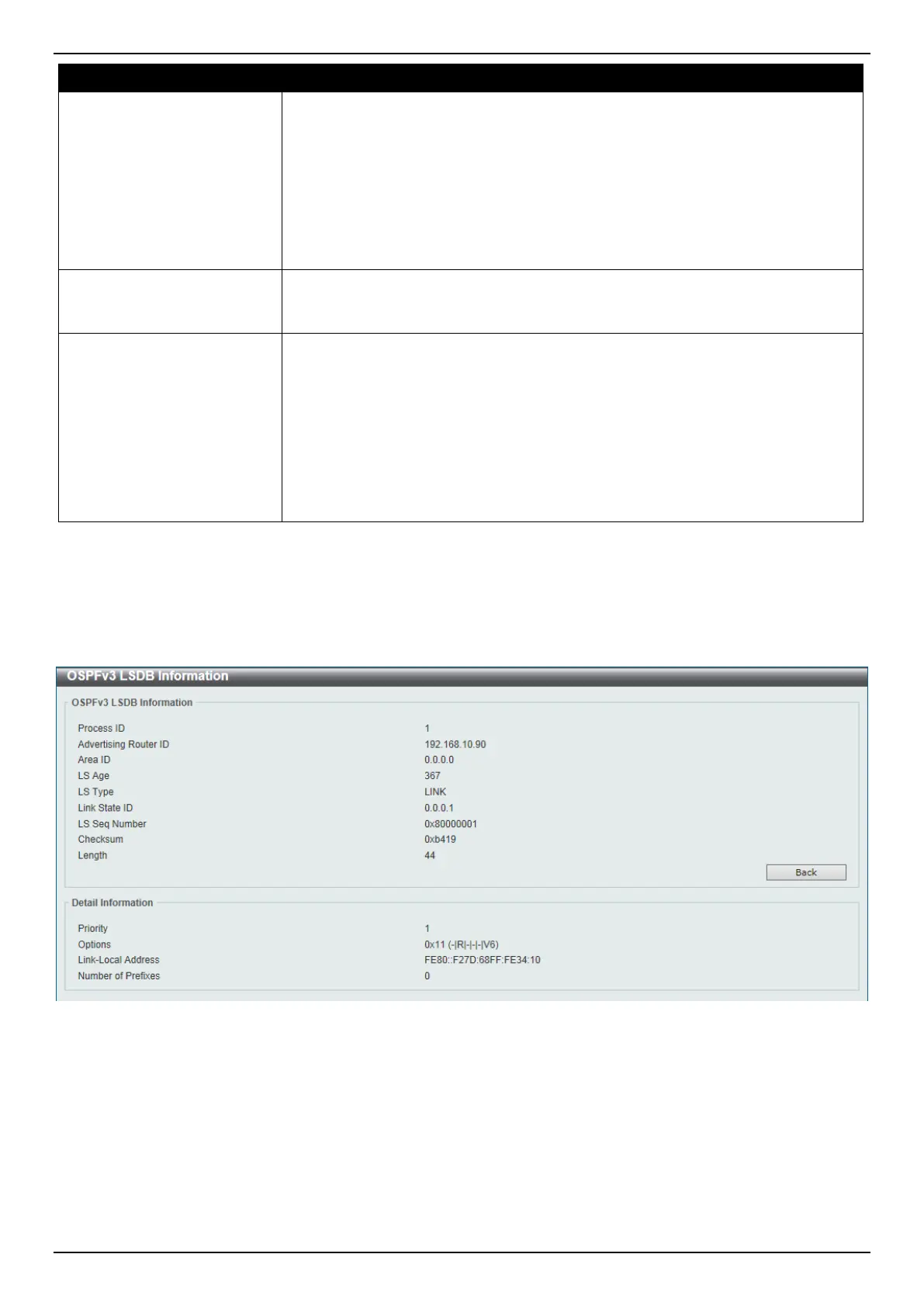

Figure 6-91 OSPFv3 LSDB Table (Show Detail) Window
Click the Back button to return to the previous window.
OSPFv3 Neighbor Table
This window is used to find and display the OSPFv3 neighbor information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Neighbor Table, as shown below:
