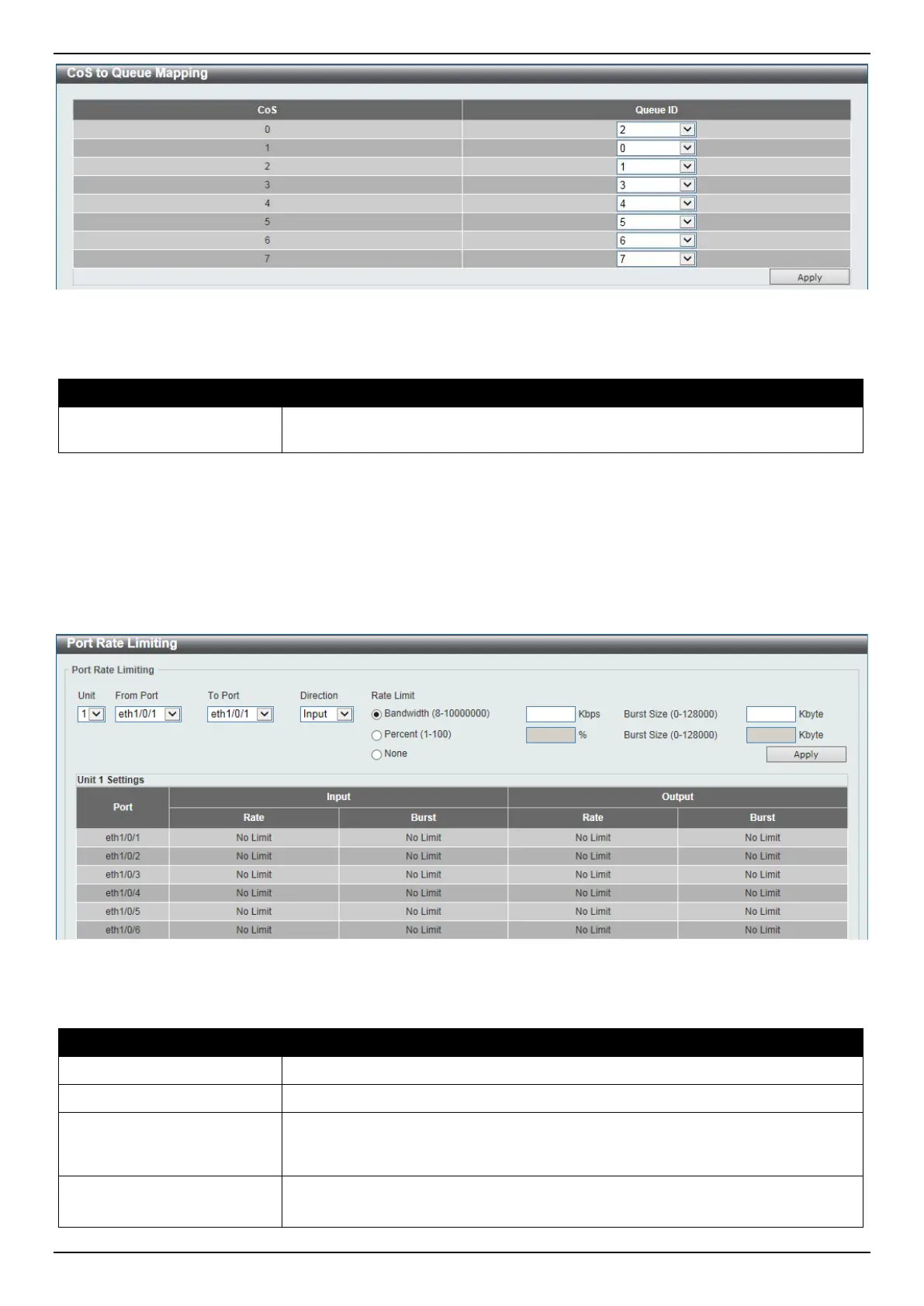

Figure 7-4 CoS to Queue Mapping Window
The fields that can be configured are described below:
Parameter Description
Queue ID
Select the queue ID that will be mapped to the corresponding CoS value. Options
to choose from are 0 to 7.
Click the Apply button to accept the changes made.
Port Rate Limiting
This window is used to display and configure the port rate limiting settings.
To view the following window, click QoS > Basic Settings > Port Rate Limiting, as shown below:
Figure 7-5 Port Rate Limiting Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
Direction
Select the direction option here. Options to choose from are Input and Output.
When Input is selected, the rate limit for ingress packets is configured. When
Output is selected, the rate limit for egress packets is configured.
Rate Limit
Select and enter the rate limit value here.
• When Bandwidth is selected, enter the input/output bandwidth value used in
