Parameter Description
MAC Address
Enter the MAC address for the LM test here.
Period
Select the time period here. This specifies the transmitting interval of the LM PDU.
Options to choose from are 100ms, 1sec, and 10sec.
PDU Priority
Select the PDU priority value here. The range is from 0 to 7. This specifies the
802.1p priority to be set in the LMM messages transmitted by the MEP. The
default value is the PDU priority of the MEP.
Click the Apply button to accept the changes made.
The fields that can be configured in Clear CFM LM are described below:
Parameter Description
Type
Select the type of information to clear here. Options to choose from are:
• Result - Specifies to clear the stored LM results.
• Statistics - Specifies to clear the stored statistics of ETH-LM frames (LMM
and LMR).
Click the Clear button to clear the CFM LM statistics information based on the selection made.
Click the Clear All button to clear all the CFM LM statistics information.
Click the Back button to return to the previous window.
CFM Port Settings
This window is used to display and configure the CFM port settings.
To view the following window, click OAM > CFM > CFM Port Settings, as shown below:

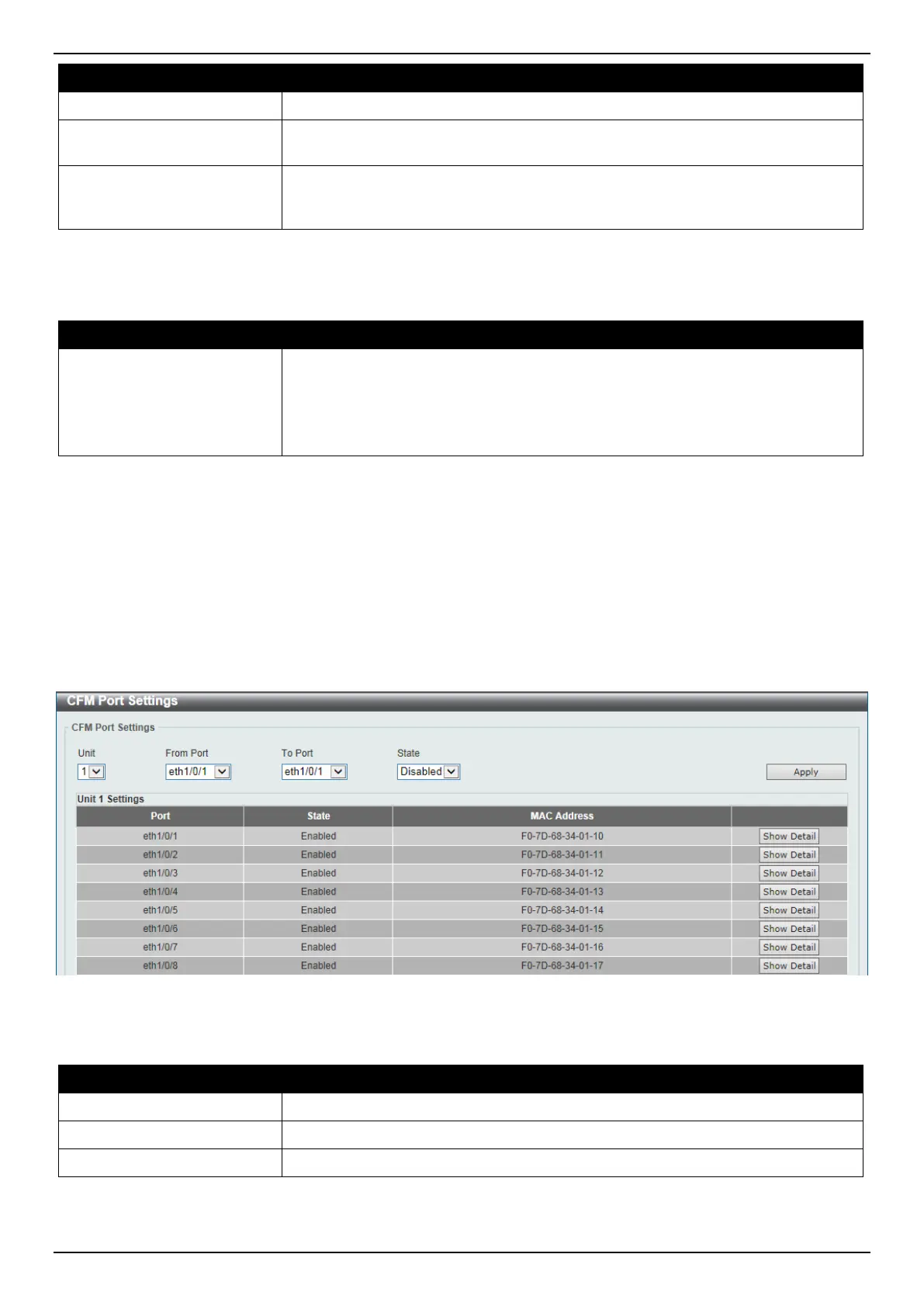

Figure 10-12 CFM Port Settings Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit ID that will be used here.
From Port - To Port
Select the Switch port range that will be used here.
State
Select the enable or disable the CFM feature on the specified port(s) here.
Click the Apply button to accept the changes made.
Click the Show Detail button to more detailed information about the CFM settings on the specified port.
