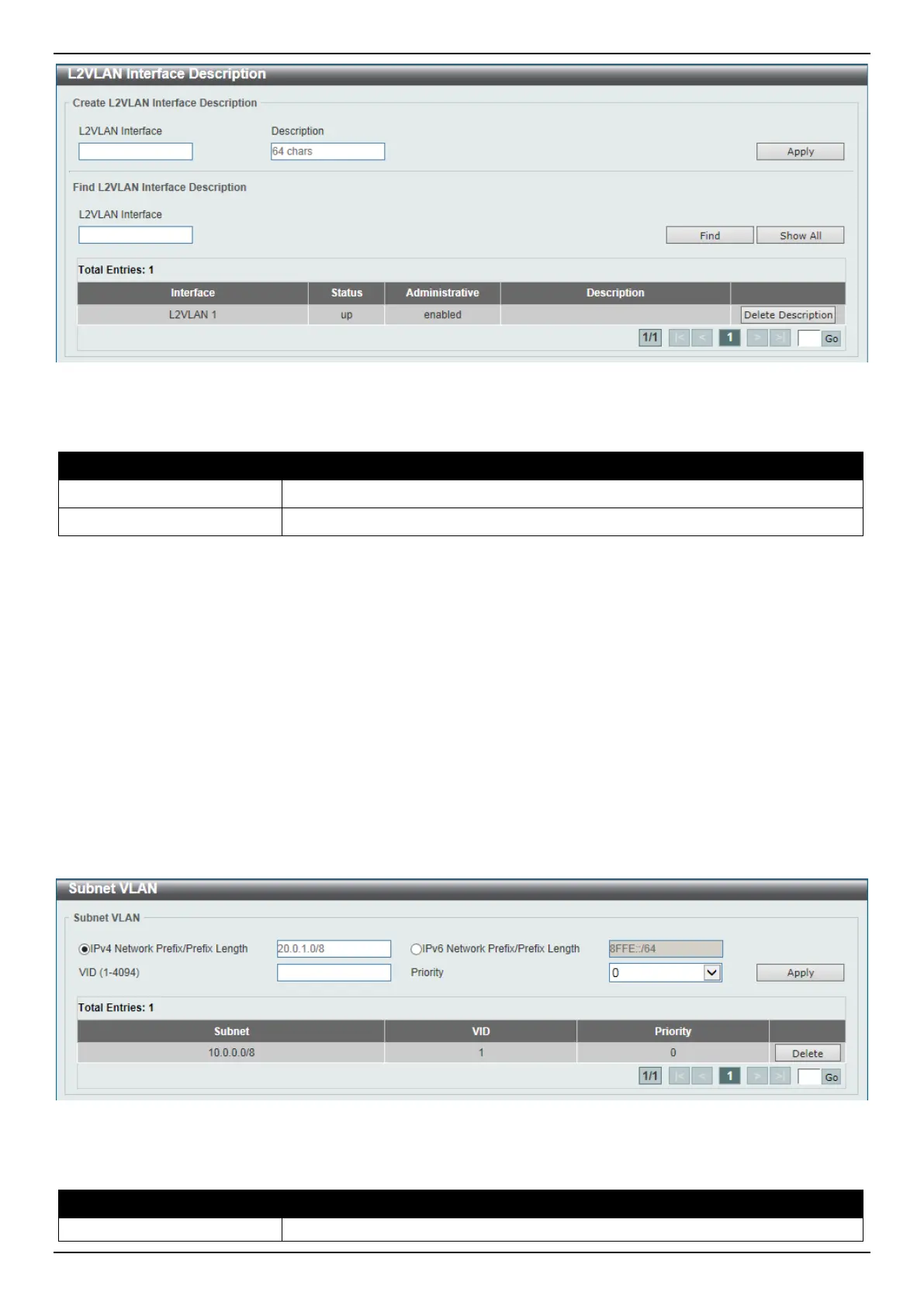

Figure 5-29 L2VLAN Interface Description Window
The fields that can be configured are described below:
Parameter Description
L2VLAN Interface
Enter the ID of the Layer 2 VLAN interface here.
Description
Enter the description for the Layer 2 VLAN interface here.
Click the Apply button to accept the changes made.
Click the Find button to generate the display based on the information entered.
Click the Show All button to display all the available entries.
Click the Delete Description button to remove the description from the specified Layer 2 VLAN.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Subnet VLAN
This window is used to display and configure the subnet VLAN settings. A subnet VLAN entry is an IP subnet-based
VLAN classification rule. If an untagged or priority-tagged IP packet is received on a port, its source IP address will be
used to match the subnet VLAN entries. If the source IP is in the subnet of an entry, the packet will be classified to the
VLAN defined for this subnet.
To view the following window, click L2 Features > VLAN > Subnet VLAN, as shown below:
Figure 5-30 Subnet VLAN Window
The fields that can be configured are described below:
Parameter Description
IPv4 Network Prefix / Prefix
Select and enter the IPv4 address and prefix length value for the subnet VLAN
