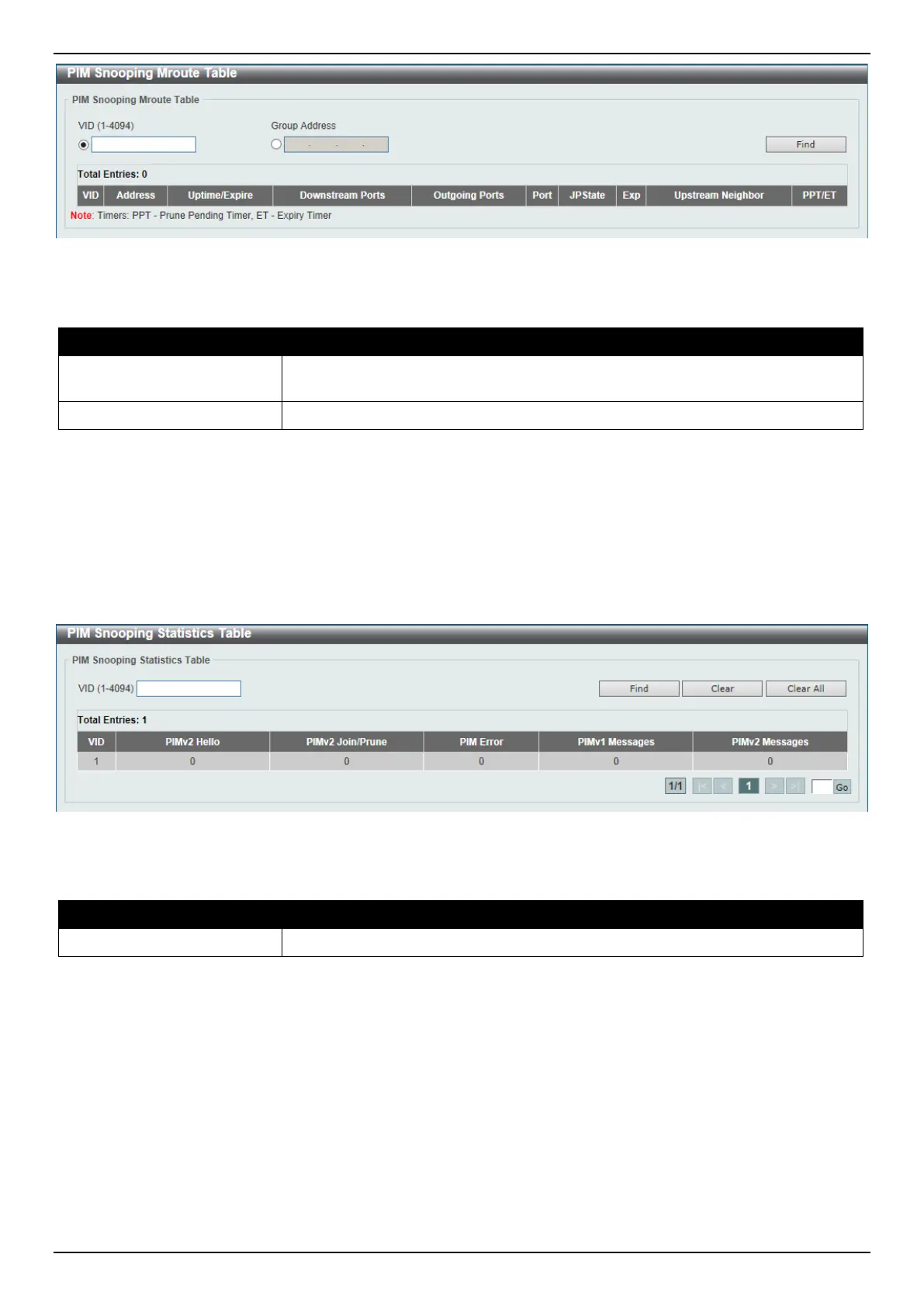

Figure 5-92 PIM Snooping Mroute Table Window
The fields that can be configured are described below:
Parameter Description
VID
Select and enter the VLAN ID that will be used in this display here. The range is
from 1 to 4094.
Group Address
Select and enter the group address here.
Click the Find button to generate the display based on the information entered.
PIM Snooping Statistics Table
This window is used to view and clear the PIM snooping statistics table.
To view the following window, click L2 Features > L2 Multicast Control > PIM Snooping > PIM Snooping
Statistics Table, as shown below:
Figure 5-93 PIM Snooping Statistics Table Window
The fields that can be configured are described below:
Parameter Description
VID
Select and enter the VLAN ID that will be used here. The range is from 1 to 4094.
Click the Find button to generate the display based on the information entered.
Click the Clear button to clear the statistics information related to the specified VLAN.
Click the Clear All button to clear all the statistics information displayed in the table.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Multicast Filtering
This window is used to display and configure the Layer 2 multicast filtering settings.
To view the following window, click L2 Features > L2 Multicast Control > Multicast Filtering, as shown below:
