DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
541
After clicking the Show Detail button, the following page will appear.

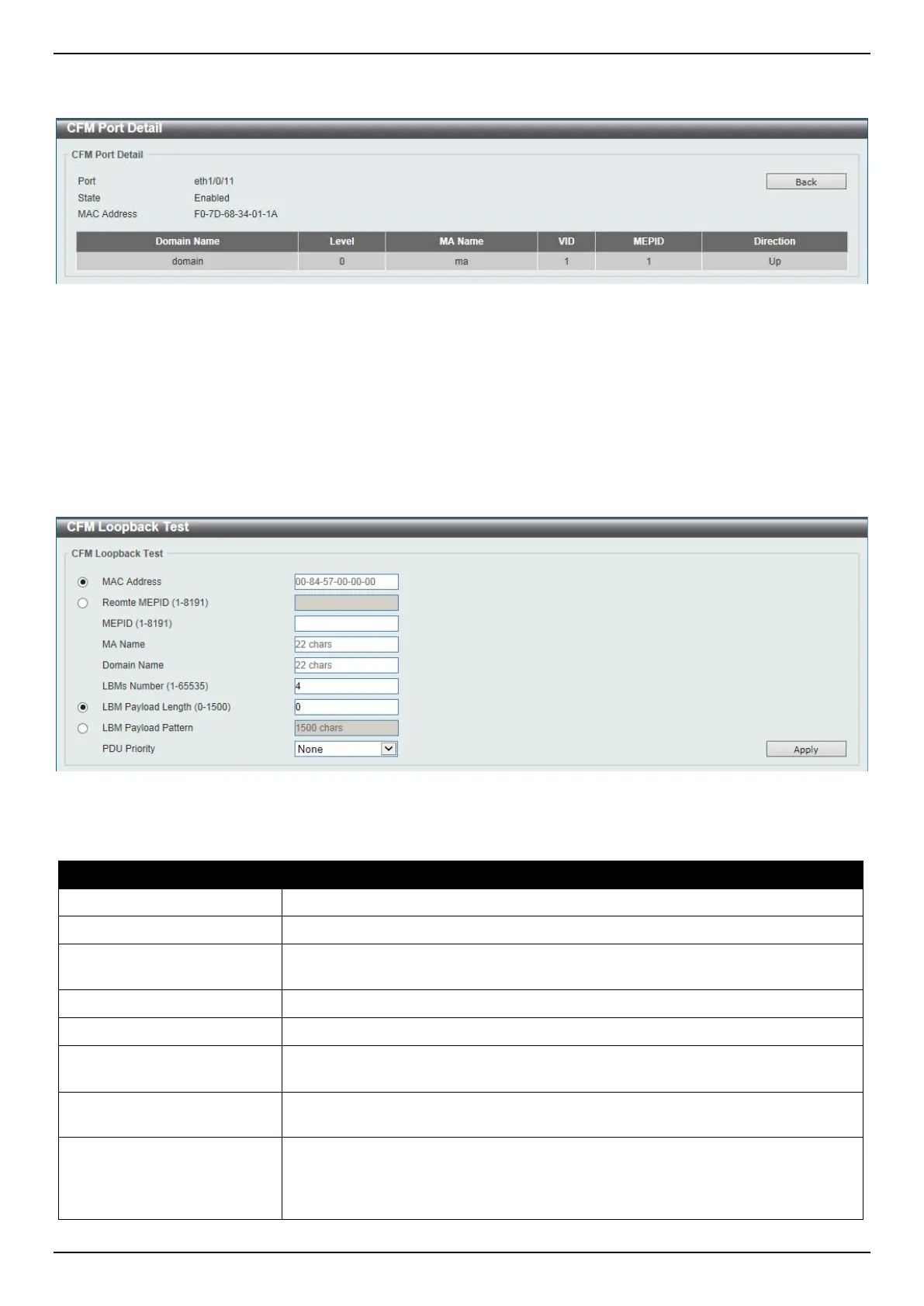

Figure 10-13 CFM Port Settings (View Detail) Window
Click the Back button to return to the previous window.
CFM Loopback Test
This window is used to display and configure the CFM loopback test settings.
To view the following window, click OAM > CFM > CFM Loopback Test, as shown below:
Figure 10-14 CFM Loopback Test Window
The fields that can be configured are described below:
Parameter Description
MAC Address
Select and enter the destination MAC address here.
Remote MEPID
Select and enter the remote MEP ID here. The range is from 1 to 8191.
MEPID
Enter the MEP ID that will initiate the loopback test here. The range is from 1 to
8191.
MA Name
Enter the MA name here. This name can be up to 22 characters long.
Domain Name
Enter the MD name here. This name can be up to 22 characters long.
LBMs Number
Enter the number of LBMs to be sent here. The range is from 1 to 65535. By
default, this value is 4.
LBM Payload Length
Select and enter the payload length of the LBM to be sent here. The range is from
0 to1500. By default, this value is 0.
LBM Payload Pattern
Select and enter the LBM payload pattern here. This specifies an arbitrary amount
of data to be included in a Data TLV, along with an indication whether the Data
TLV is to be included. This string can be up to 1500 characters long. No spaces
are allowed.
