DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
212

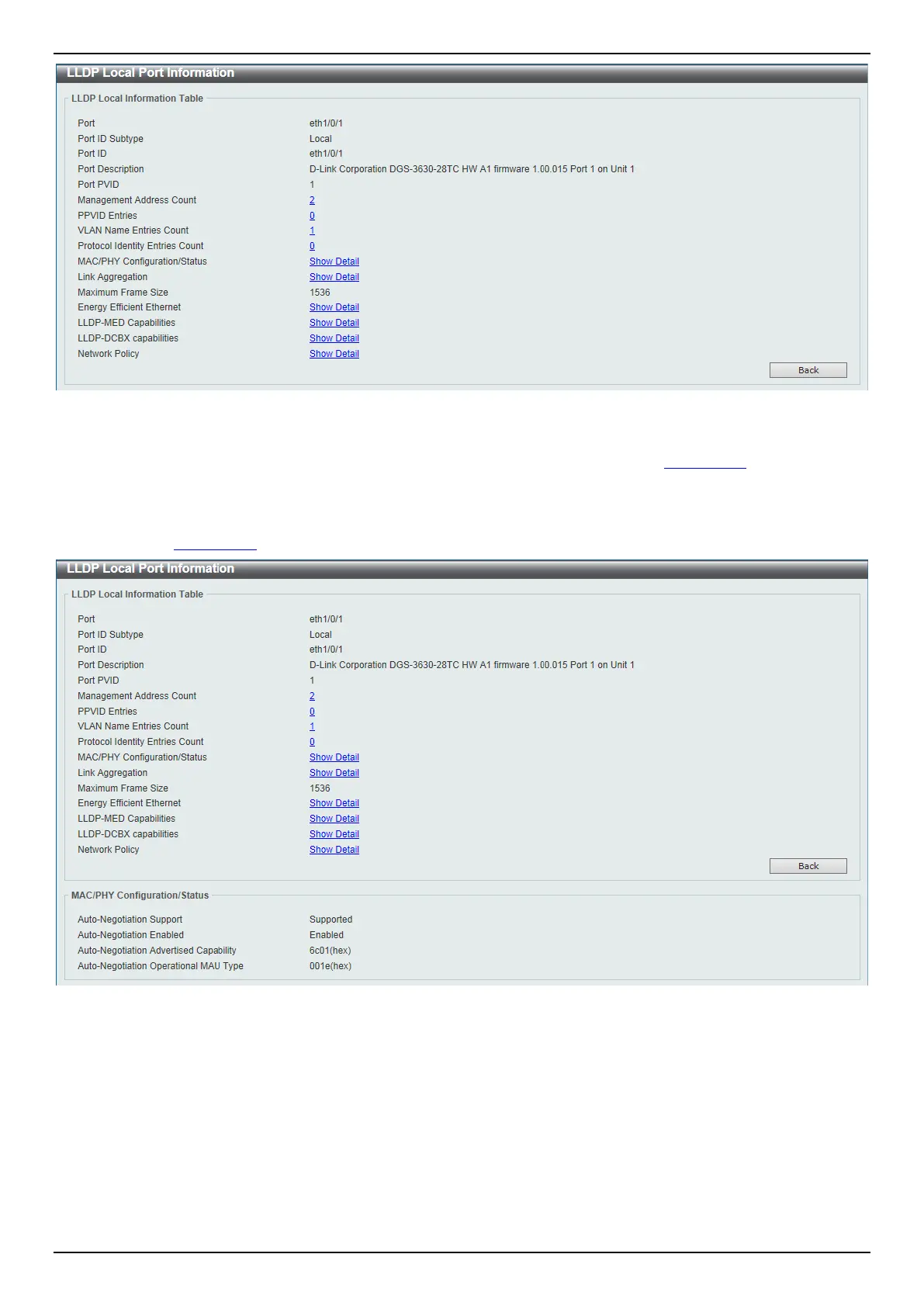

Figure 5-105 LLDP Local Port Information (Show Detail) Window
To view more details about, for example, the MAC/PHY Configuration/Status, click the Show Detail hyperlink.
Click the Back button to return to the previous window.
After clicking the Show Detail hyperlink, a new section will appear at the bottom of the window.
Figure 5-106 LLDP Local Port Information (Show Detail) Window
Click the Back button to return to the previous window.
LLDP Neighbor Port Information
This window is used to display the LLDP information learned from neighboring switches. The Switch receives packets
from a remote station but is able to store the information locally.
To view the following window, click L2 Features > LLDP > LLDP Neighbor Port Information, as shown below:
