Parameter Description
• CPU - Specifies to display the historical CPU utilization information.
• Port - Specifies to display the historical port utilization information.
Unit
Select the Switch unit that will be used here.
From Port - To Port
Select the range of ports that will be used here.
Time Based
Select the time-based statistical count value here. Options to choose from are:
• 15 Minutes - Specifies to display 15-minute based statistics count.
• 1 Day - Specifies to display daily based statistics count.
For 15-minute based statistics, slot 1 represents the time from 15 minutes ago
until now, slot 2 represents the time from 30 minutes ago until 15 minutes ago and
so on. For 1-day based statistics, slot 1 represents the time from 24 hours ago
until now and slot 2 represents the time from 48 hours ago until 24 hours ago.
Slot Index
Select the slot index here. Options to choose from are All, and 1 to 5.
Click the Find button to display entries in the table based on the information selected.
Statistics
Port
This window is used to view the port statistics information.
To view the following window, click Monitoring > Statistics > Port, as shown below:

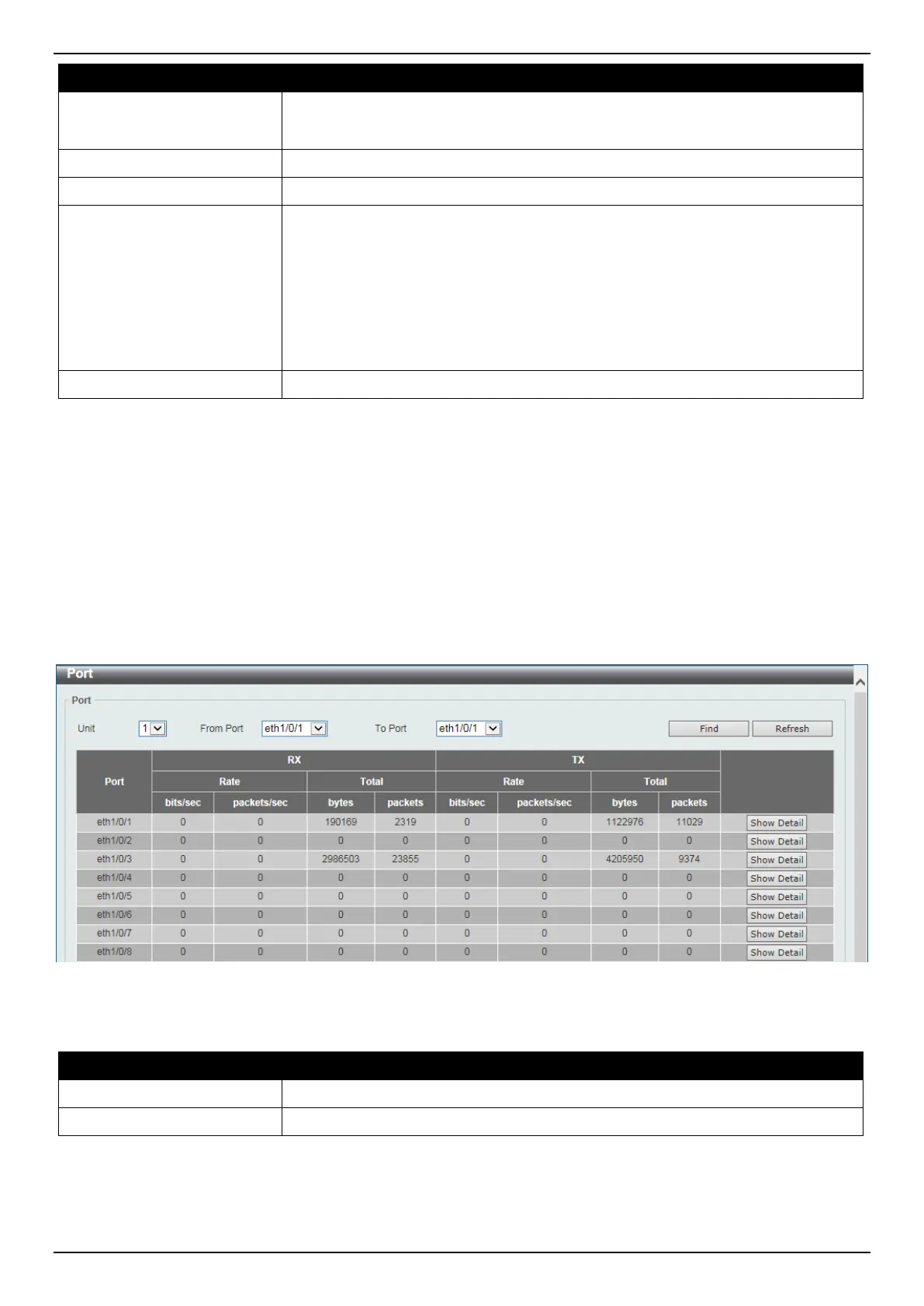

Figure 13-6 Port Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used in this display here.
From Port - To Port
Select the range of ports that will be used in this display here.
Click the Find button to display entries in the table based on the information selected.
Click the Refresh button to refresh the information displayed in the table.
Click the Show Detail button to view more detailed statistics information on the specified port.
