DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
448
Parameter Description
• Mask - Enter the inner VLAN ID mask value here. The range is from 0x0 to
0xFFF.
VLAN Range
Select and enter the VLAN range that will be associated with this ACL rule here.
Enter the starting and ending VLANs in the spaces provided. The range is from 1
to 4094.
CoS
Select the CoS value that will be used here. The range is from 0 to 7.
• Mask - Enter the CoS mask value here. The range is from 0x0 to 0x7.
Inner CoS
After selecting the CoS value, select the inner CoS value that will be used here.
The range is from 0 to 7.
• Mask - Enter the inner CoS mask value here. The range is from 0x0 to 0x7.
Time Range
Enter the name of the time range profile that will be used in this ACL rule here.
This name can be up to 32 characters long.
Click the Apply button to accept the changes made.
Click the Back button to discard the changes made and return to the previous page.
ACL Interface Access Group
This window is used to display and configure the ACL interface access group settings.
To view the following window, click ACL > ACL Interface Access Group, as shown below:

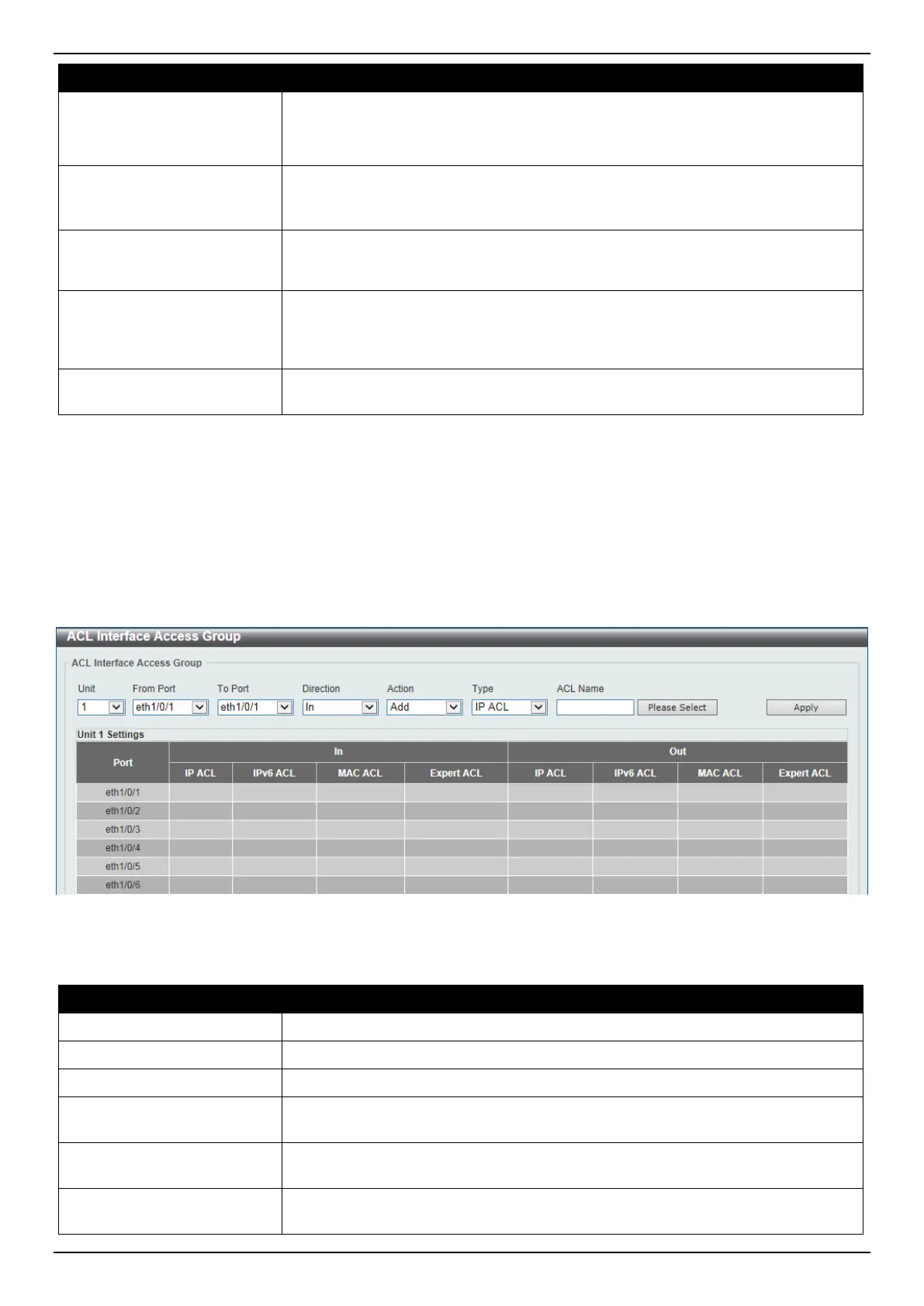

Figure 8-17 ACL Interface Access Group Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
Direction
Select the direction here. Options to choose from are In and Out.
Action
Select the action that will be taken here. Options to choose from are Add and
Delete.
Type
Select the ACL type here. Options to choose from are IP ACL, IPv6 ACL, MAC
ACL, and Expert ACL.
ACL Name
Enter the ACL name here. This name can be up to 32 characters long. Click the
Please Select button to select an existing ACL from the list.
