The fields that can be configured are described below:
Parameter Description
ACL Type
Select the ACL type that will be used to display the type of existing access lists in
the table here. Options to choose from are IP ACL, Expert IP ACL, IPv6 ACL,
Expert IPv6 ACL, MAC ACL, and Expert ACL.
ACL List
Select the radio button of the access list in the table that will be used here.
Click the Find button to display a list of access lists based on the selection made.
Click the Show All button to display all configured access lists.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the Apply button to use the selected access list.
PIM Neighbor Table
This window is used to find and display PIM neighbor information.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Neighbor Table, as shown below:

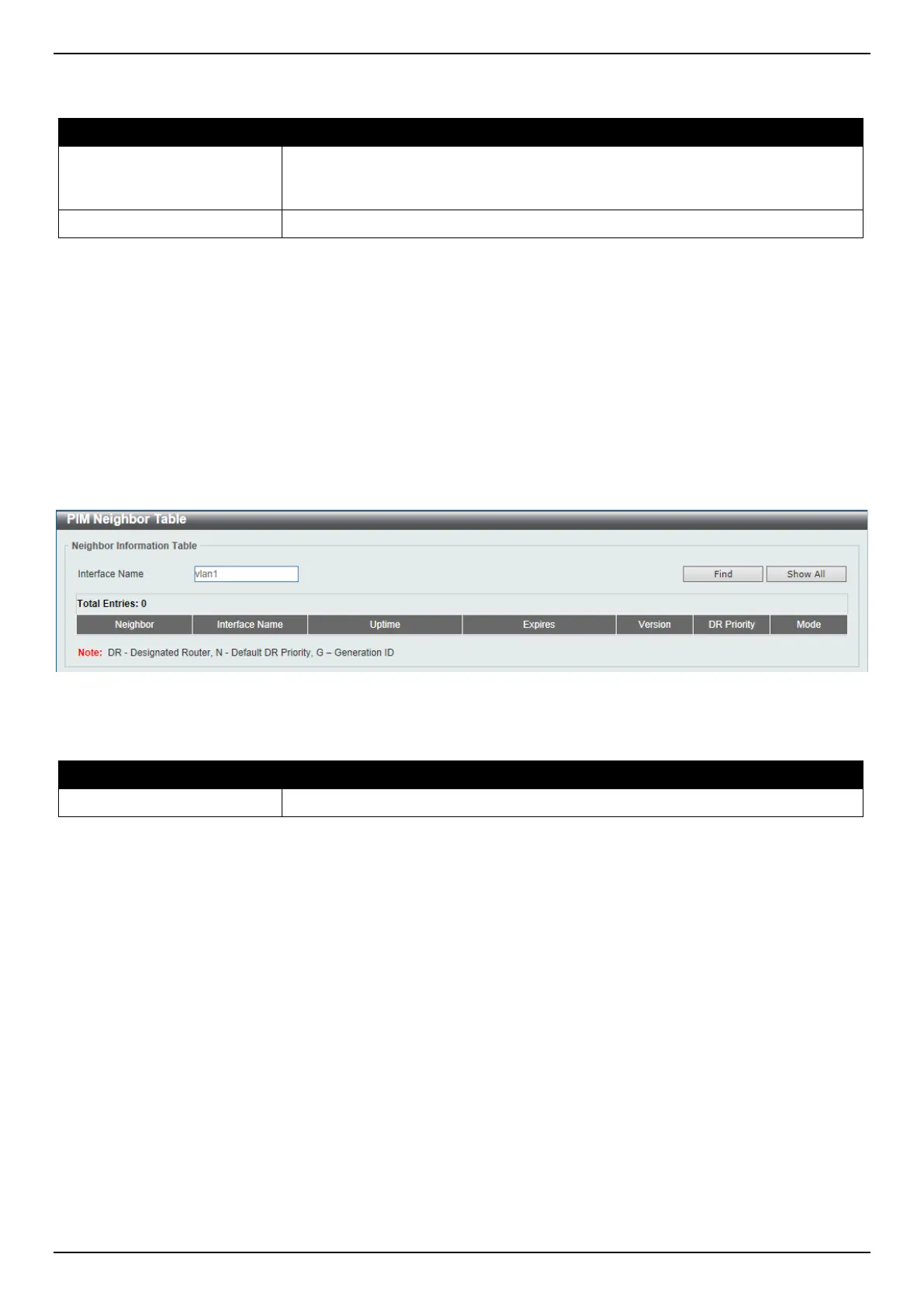

Figure 6-129 PIM Neighbor Table Window
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the VLAN interface name here to display PIM-SM neighbor information.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the entries.
PIM for IPv6
In this section, the settings associated with PIM Sparse Mode for IPv6 (PIM-SMv6) will be configured and not the
settings associated with PIM Dense Mode for IPv6 (PIM-DMv6).
PIM for IPv6 Interface
This window is used to display and configure the PIM IPv6 interface settings.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 Interface, as shown below:
