D-Link DGS-3630 SERIES Reference Guide

DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
569

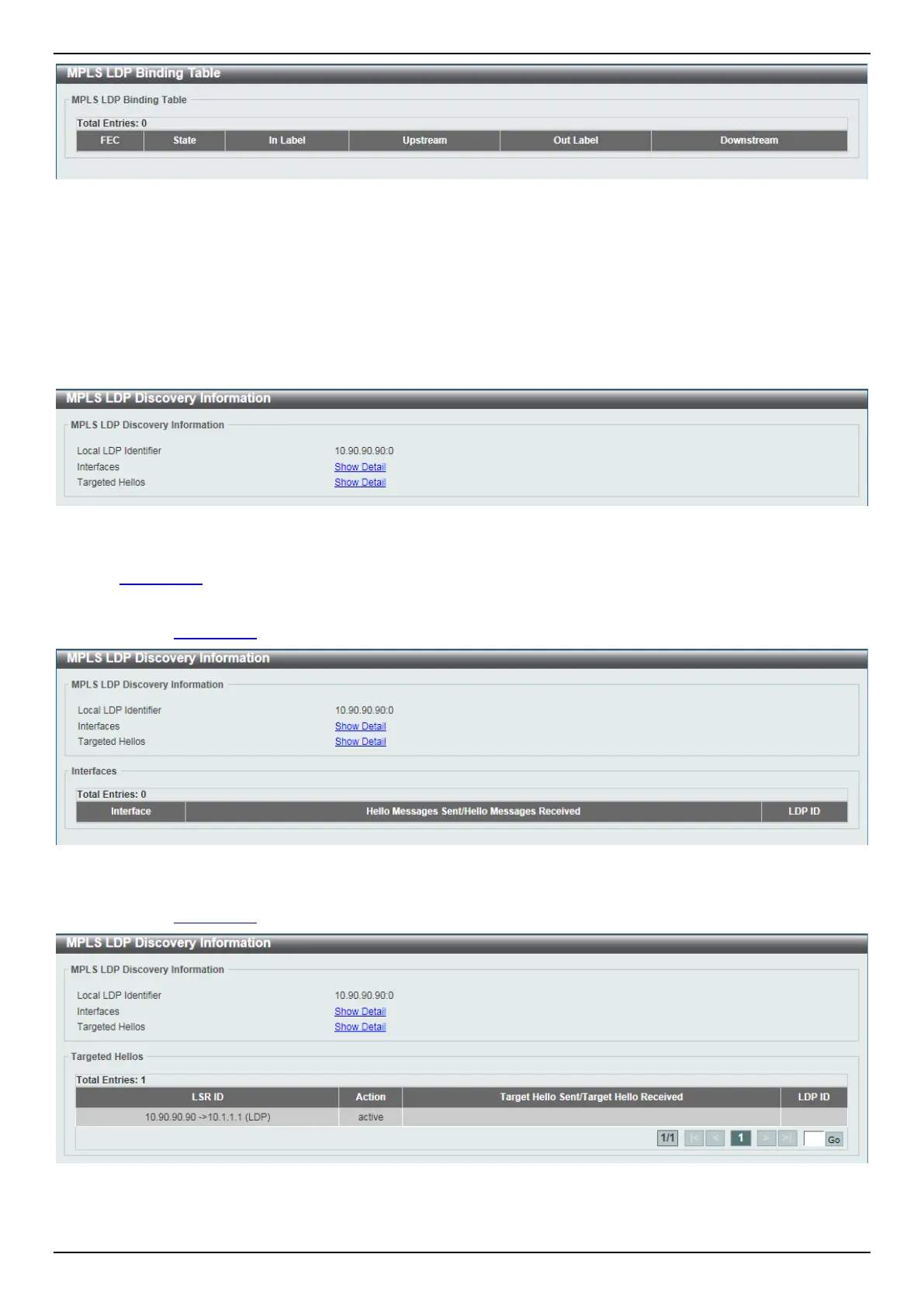

Figure 11-13 MPLS LDP Binding Table Window
MPLS LDP Discovery Information
This window is used to display MPLS LDP discovery information.
To view the following window, click MPLS > MPLS LDP Discovery Information, as shown below:
Figure 11-14 MPLS LDP Discovery Information Window
Click the Show Detail link to view more detailed information related to the topic.
After clicking the Show Detail link next to Interfaces, the following page will appear.
Figure 11-15 MPLS LDP Discovery Information (Show Detail) Window
After clicking the Show Detail link next to Targeted Hellos, the following page will appear.
Figure 11-16 MPLS LDP Discovery Information (Show Detail) Window
