CFM Counter CCM
This window is used to view and clear the CFM CCM counter information.
To view the following window, click OAM > CFM > CFM Counter CCM, as shown below:

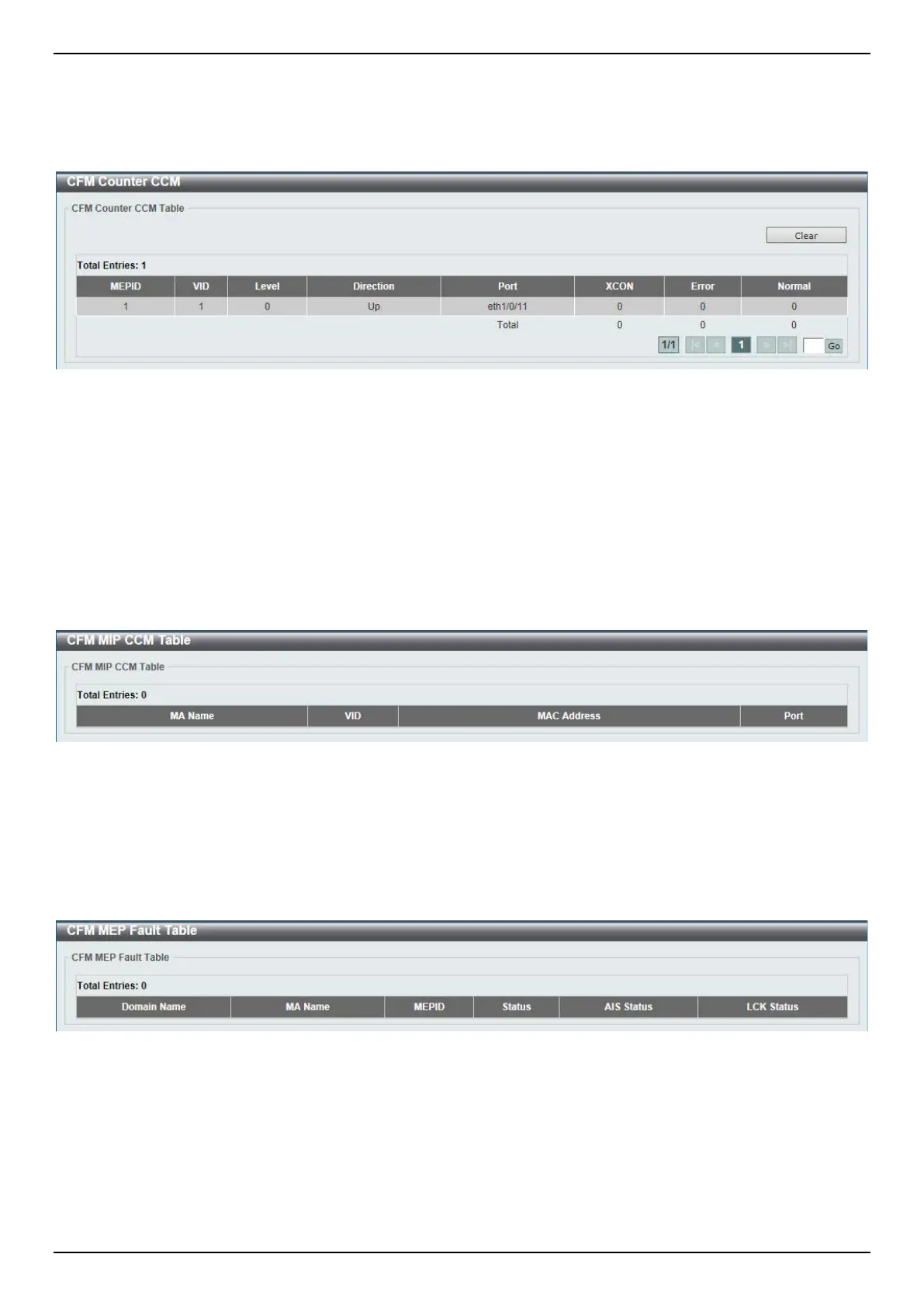

Figure 10-18 CFM Counter CCM Window
Click the Clear button to clear the counter information associated with all entries.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
CFM MIP CCM Table
This window is used to display the MIP CCM database entries.
To view the following window, click OAM > CFM > CFM MIP CCM Table, as shown below:
Figure 10-19 CFM MIP CCM Table Window
CFM MEP Fault Table
This window is used to display the MEPs that have faults.
To view the following window, click OAM > CFM > CFM MEP Fault Table, as shown below:
Figure 10-20 CFM MEP Fault Table Window
Cable Diagnostics
The cable diagnostics feature is designed primarily for administrators or customer service representatives to verify and
test copper cables; it can rapidly determine the quality of the cables and the types of error.
To view the following window, click OAM > Cable Diagnostics, as shown below:
