Parameter Description
Clone
Select this option to enable the clone feature.
From Port - To Port
Select the range of ports that will be used in the clone feature here.
Click the Apply button to accept the changes made.
Click the Back button to discard the changes made and return to the previous page.
When Trunk Promiscuous was selected as the VLAN Mode, the following page will appear.

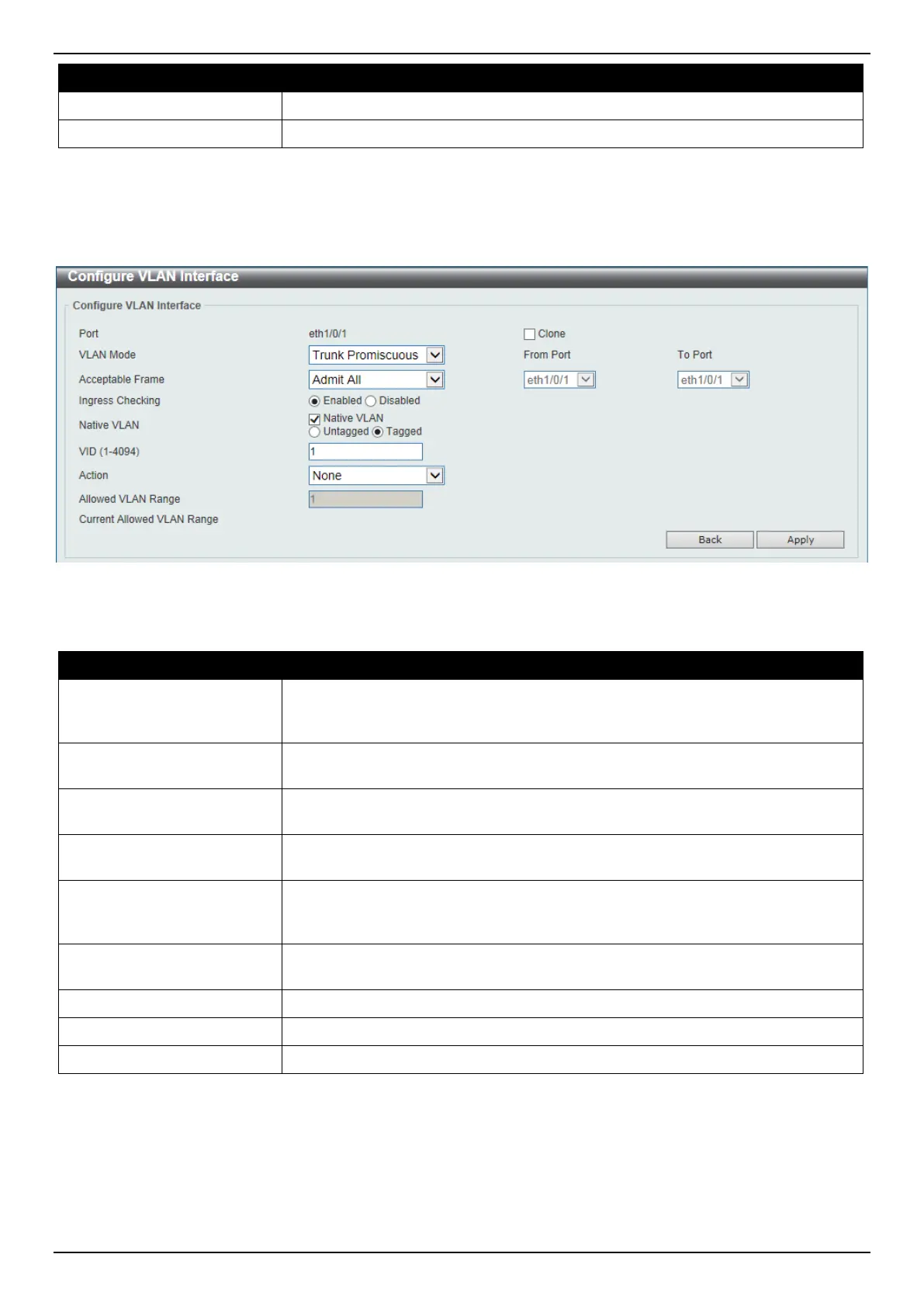

Figure 5-27 VLAN Interface (Trunk Promiscuous) Window
The fields that can be configured are described below:
Parameter Description
VLAN Mode
Select the VLAN mode option here. Options to choose from are Access, Hybrid,
Trunk, 802.1Q-Tunnel, Promiscuous, Host, Trunk Promiscuous, and Trunk
Secondary.
Acceptable Frame
Select the acceptable frame behavior option here. Options to choose from are
Tagged Only, Untagged Only, and Admit All.
Ingress Checking
After selecting Trunk Promiscuous as the VLAN Mode the following parameter
will be available. Select to enable or disable the ingress checking function.
Native VLAN
Tick this option to enable the native VLAN function. Also select if this VLAN
supports Untagged or Tagged frames.
VID
After ticking the Native VLAN option the following parameter will be available.
Enter the VLAN ID used for this configuration here. This value must be between 1
and 4094.
Action
Select the action that will be taken here. Options to choose from are All, Add,
Remove, Except, and Replace.
Allowed VLAN Range
Enter the allowed VLAN range here.
Clone
Select this option to enable the clone feature.
From Port - To Port
Select the range of ports that will be used in the clone feature here.
Click the Apply button to accept the changes made.
Click the Back button to discard the changes made and return to the previous page.
When Trunk Secondary was selected as the VLAN Mode, the following page will appear.
