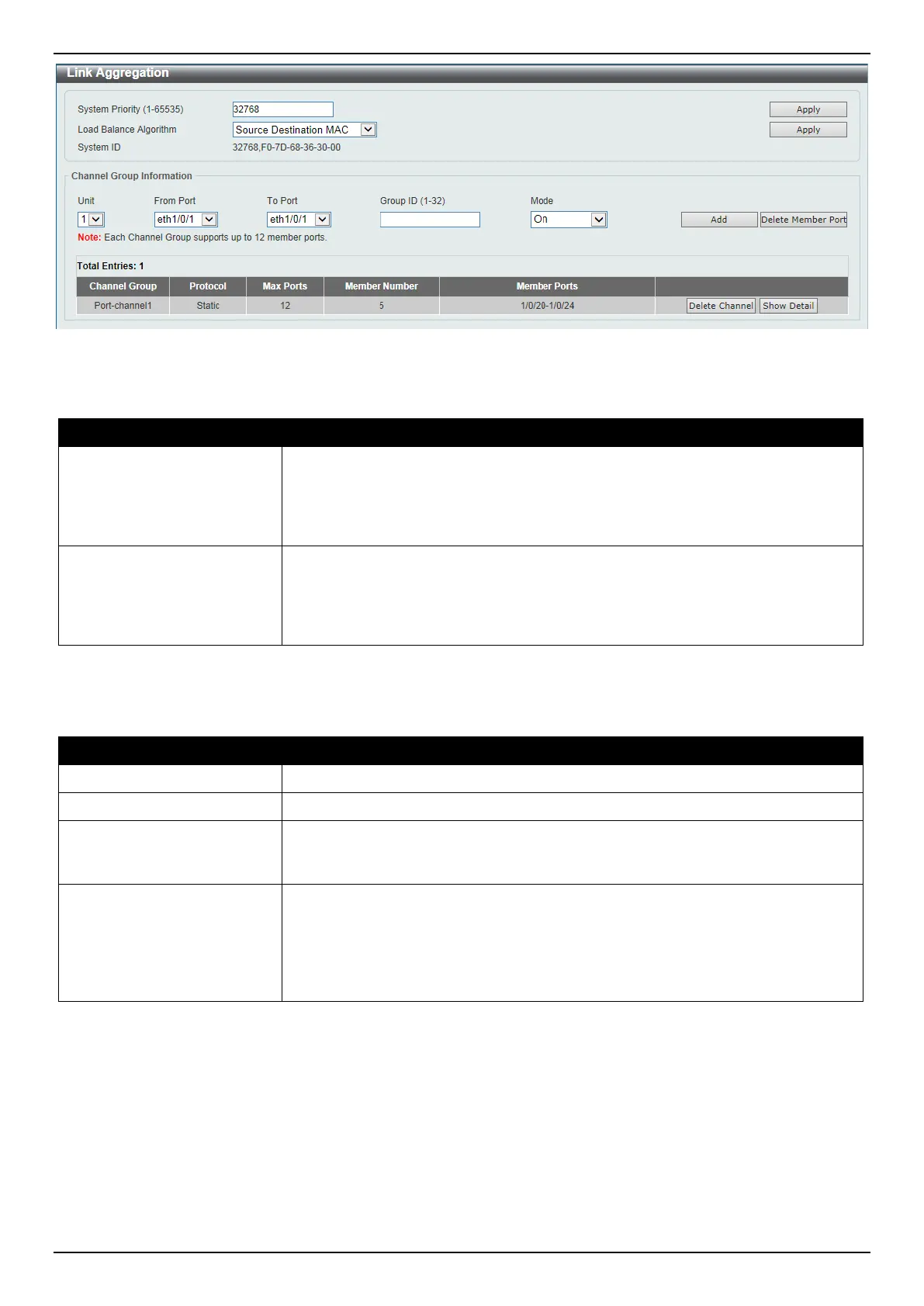

Figure 5-64 Link Aggregation Window
The fields that can be configured for Link Aggregation are described below:
Parameter Description
System Priority
Enter the system priority value used here. This value must be between 1 and
65535. By default, this value is 32768. The system priority determines which ports
can join a port-channel and which ports are put in the stand-alone mode. The
lower value has a higher priority. If two or more ports have the same priority, the
port number determines the priority.
Load Balance Algorithm
Select the load balancing algorithm that will be used here. Options to choose from
are Source MAC, Destination MAC, Source Destination MAC, Source IP,
Destination IP, Source Destination IP, Source L4 Port, Destination L4 Port,
and Source Destination L4 Port. By default, this option is Source Destination
MAC.
Click the Apply button to accept the changes made.
The fields that can be configured for Channel Group Information are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the list of ports that will be associated with this configuration here.
Group ID
Enter the channel group number here. This value must be between 1 and 32. The
system will automatically create the port-channel when a physical port first joins a
channel group. An interface can only join one channel-group.
Mode
Select the mode option here. Options to choose from are On, Active, and
Passive. If the mode On is specified, the channel group type is static. If the mode
Active or Passive is specified, the channel group type is LACP. A channel group
can only consist of either static members or LACP members. Once the type of
channel group has been determined, other types of interfaces cannot join the
channel group.
Click the Add button to add a new channel group.
Click the Delete Member Port button, to delete the member port(s) specified from the group.
Click the Delete Channel button to delete the specified channel group.
Click the Show Detail button to view more detailed information about the channel.
After clicking the Show Detail button, the following page will be available.
