Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
SVID
Select and enter the SVID here. The range is from 1 to 4094.
VPLS Name
Enter the VPLS instance name here. This name can be up to 32 characters long.
Click the Apply button to accept the changes made.
Click the Edit button to configure more detailed settings related to the specific entry.
Click the Show Detail button to view more detailed information about the specific entry.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Edit button, the following page will appear.

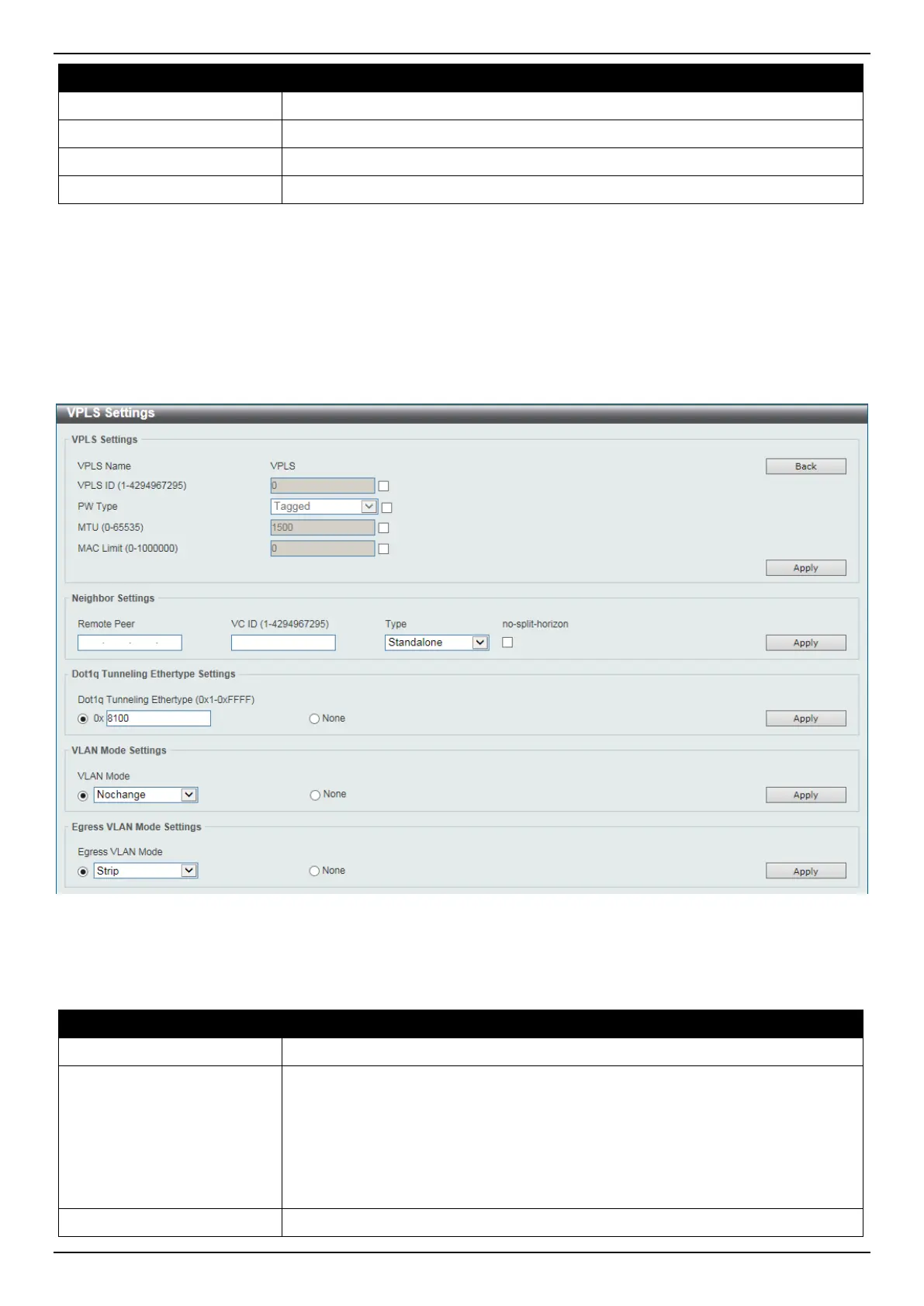

Figure 12-6 VPLS Settings (Edit) Window
Click the Back button to return to the previous window.
The fields that can be configured for VPLS Settings are described below:
Parameter Description
VPLS ID
Select and enter the VPLS instance ID here. The range is from 1 to 4294967295.
PW Type
Select the PW type here. Options to choose from are:
• Raw - Specifies that the service type is in the Ethernet-raw mode. It means
that the encapsulation of all PWs in the VPLS is in the Ethernet-raw mode.
• Tagged - Specifies that the service type is in the Ethernet-tagged mode. It
means that the encapsulation of all PWs in the VPLS is in the Ethernet-
tagged mode.
MTU
Select and enter the local AC link’s MTU value of a VPLS that will be advertised
