DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

595

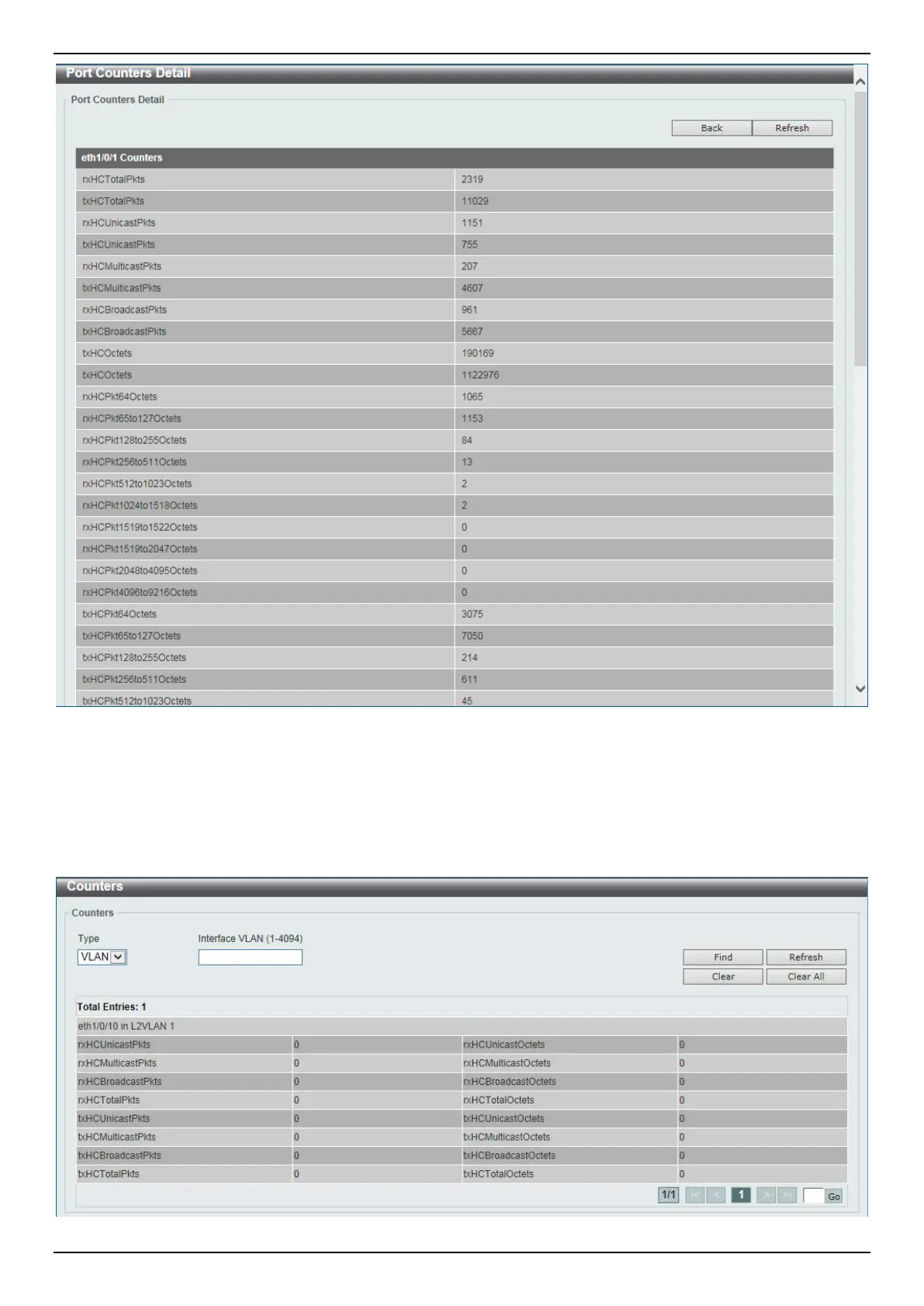

Figure 13-14 Counters (Show Detail) Window

Click the Back button to return to the previous window.

Click the Refresh button to refresh the information displayed in the table.

After selecting VLAN as the Type, the following window will appear:

Figure 13-15 Counters (VLAN) Window
