Uso e manutenzione
Maintenance operations
sezione / section
D 4
34 ST3 - M.Y. 2004 - edizione/edition 00

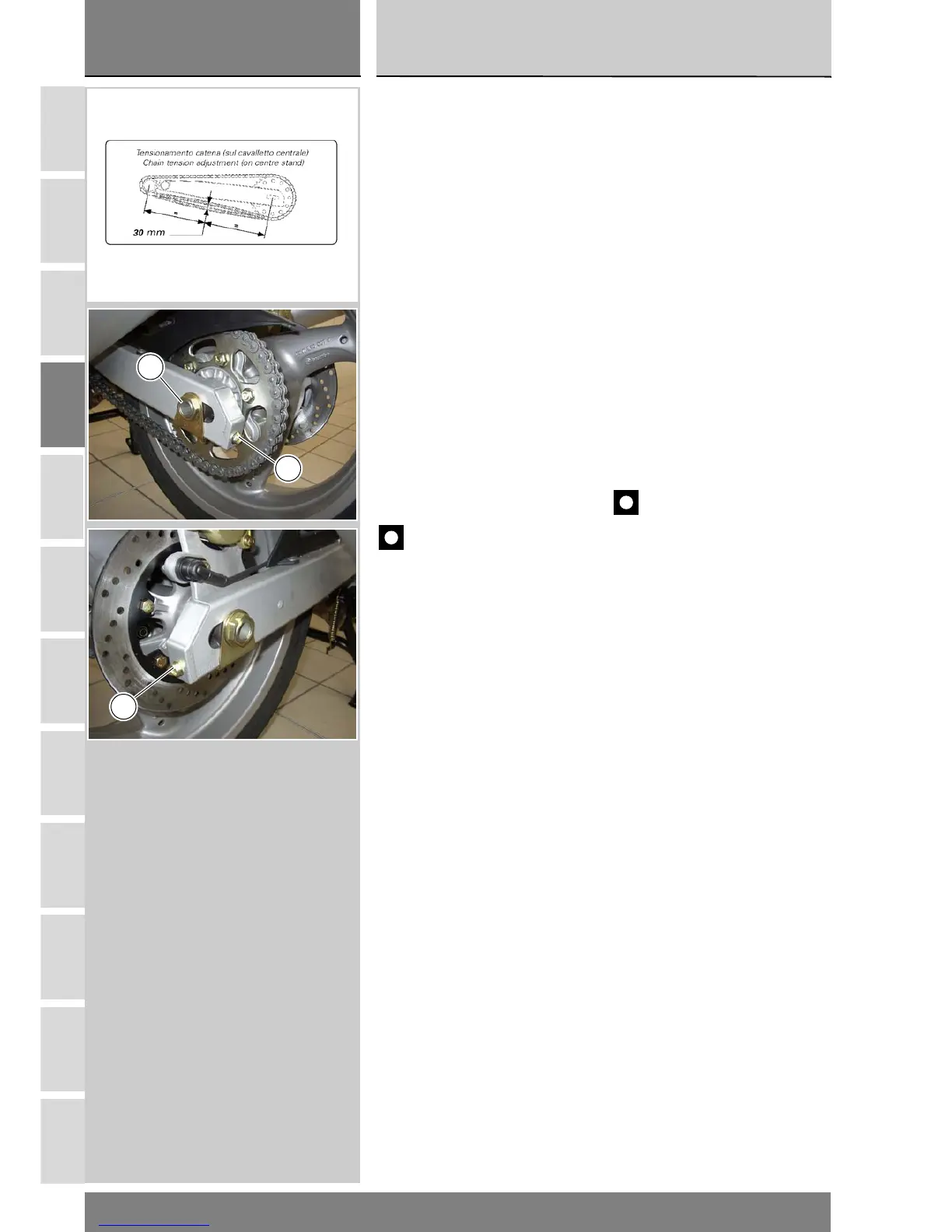

Regolazione tensione
catena
Posizionare il motociclo sul cavalletto
centrale.
Girare lentamente la ruota posteriore
per trovare la posizione in cui la
catena risulta più tesa.
Spingere la catena con un dito verso
l’alto in corrispondenza della mezzeria
del forcellone (vedi targhetta
adesiva).
Il ramo inferiore della catena deve
poter compiere una escursione di
circa 30 mm.
Per registrare la tensione procedere
come segue:
Allentare il dado (1) sul lato sinistro
del perno ruota.
Avvitare della stessa entità, in senso
orario, la vite (2) tendicatena su
entrambi i rami del forcellone per
aumentare la tensione o svitare per
diminuirla. In quest’ultimo caso è
necessario spingere in avanti la ruota.
Importante
Una catena non correttamente
tesa è causa di una veloce usura degli
organi di trasmissione.
Verificare la corrispondenza, su
entrambi i lati del forcellone, delle
tacche di posizionamento; in questo
modo sarà garantito il perfetto
allineamento della ruota.
Bloccare il dado (1) del perno ruota
alla coppia prescritta (Sez. C 3).
Bloccare le viti (2) tendicatena alla
coppia prescritta (Sez. C 3).
Adjusting chain tension
Place the motorcycle on the side
stand.
Turn the rear wheel slowly until
finding the position at which the chain
is tightest.
Push the chain upwards with one
finger at swingarm mid-length (see
label).
The lower length of the chain should
have 30 mm slack.
When required, adjust tension as
follows:
Undo the nut (1) on the wheel shaft
left side.
Turn the chain tension adjuster screw
(2) on either side of the swingarm
clockwise by the same number of
turns to stretch or counter clockwise
to slacken.
In the latter case, you will need to
push the wheel forward.
Caution
A slack chain will lead to early
wear of the transmission
components.
Check that the reference marks on
both sides of the swingarm are lined
up with marks on sliding shoe (4).
This indicates perfect wheel
alignment.
Tighten the nut (1) of the wheel shaft
to the specified torque (Sect. C 3).
Tighten the chain tension adjuster
screws (2) to the specified torque
(Sect. C 3).
1
2
2
