A
B
C
D
E
F
G
H
L
M
N
P
Motore
Engine
sezione / section
N 6.1
117ST3 - M.Y. 2004 - edizione/edition 00

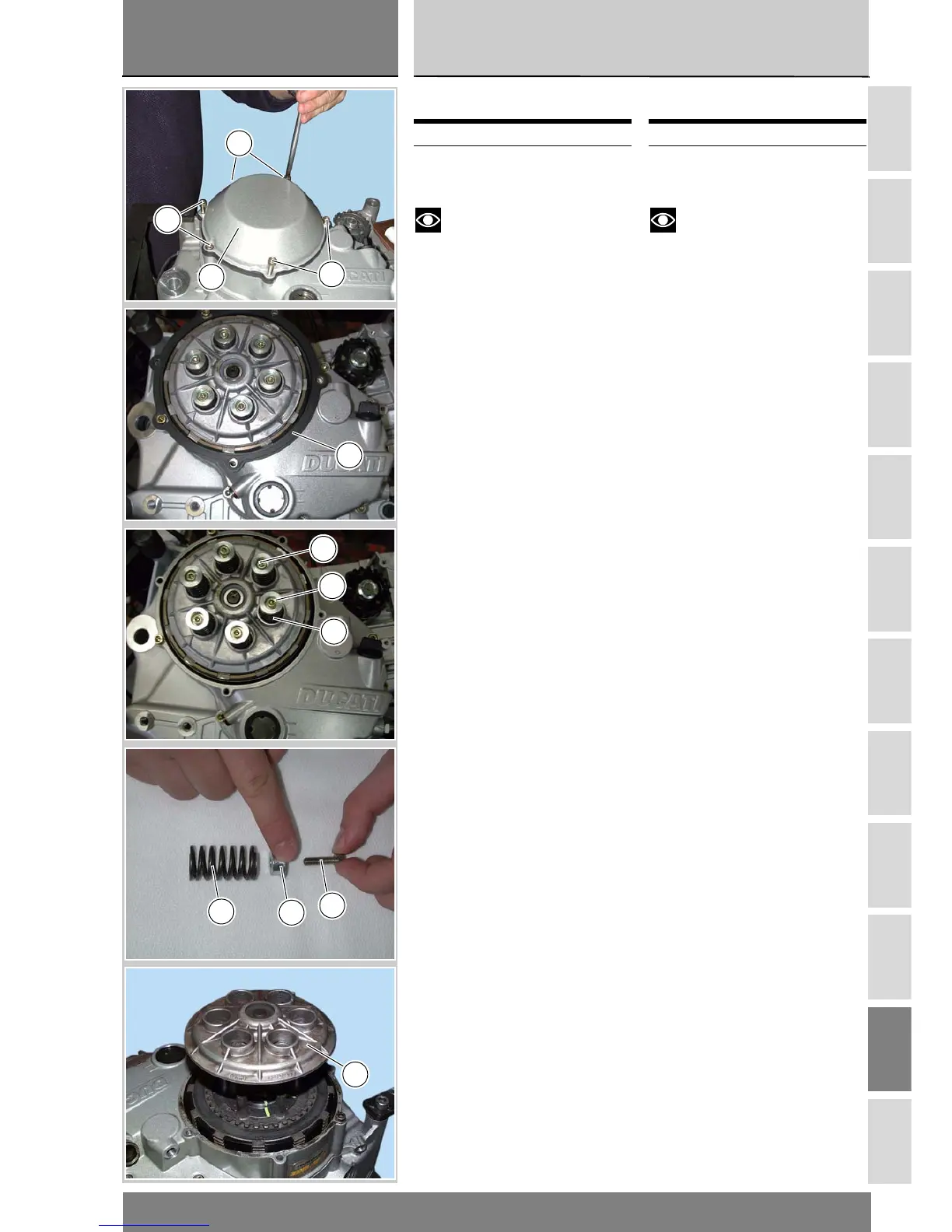

Smontaggio frizione
Note
Per una migliore chiarezza le
immagini rappresentano un motore
rimosso dal telaio.
Svitare le quattro viti (23) e le due viti
(16) di fissaggio del coperchio
ispezione frizione (22).
Rimuovere il coperchio e la
guarnizione insonorizzante (15).
Svitare le viti (4) di fissaggio ed
estrarre gli scodellini (2) e le molle (1)
della frizione.
Sfilare lo spingidisco (12).
Operazioni Rif. Sez.
Rimuovere le carene
laterali
E 2
Disassembling the clutch
Note
For precision purposes, the
figures show an engine removed
from the frame.
Undo the four retaining screws (23)
and the two retaining screws (16)
from the clutch inspection cover (22).
Remove the cover and the sound
deadening gasket (15).
Unscrew the retaining screws (4) and
remove the spring caps (2) and the
clutch springs (1).
Pull out the pressure plate (12).
Operations See Sect.
Remove the side
fairings
E 2
22
23
16
23
15
4
2
1
1
2
4
12
