A
B
C
D
E
F
G
H
L
M
N
P
Motore
Engine
sezione / section
N 2.1
14 ST3 - M.Y. 2004 - edizione/edition 00

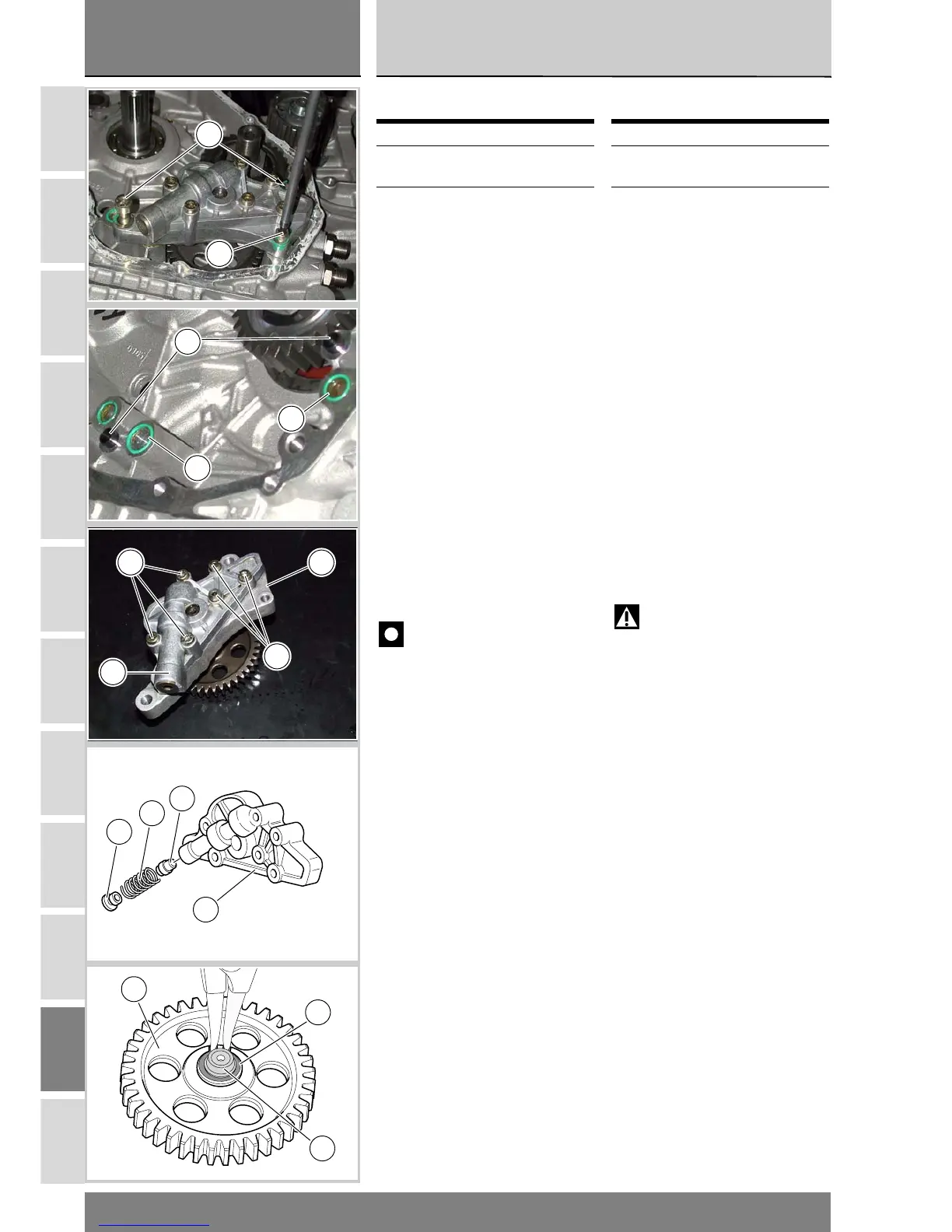

Smontaggio pompa olio
Svitare e rimuovere le viti (9) e (10) di
fissaggio pompa completa.
Rimuovere la pompa olio e sfilare dal
semicarter gli anelli OR (3) e (4) le due
boccole di centraggio (15).
Scomposizione pompa olio
Fissare la pompa olio in morsa senza
danneggiare l'ingranaggio di
trasmissione della pompa.
Importante
Assicurarsi che sulle ganasce
della morsa siano presenti le apposite
protezioni.
Svitare le viti di fissaggio (6) quindi
rimuovere il coperchio (2) dal corpo
pompa (5).
Rimuovere il tappo (14) e sfilare la
molla (16) e valvola by pass (17).
Verificare le loro condizioni.
Rimuovere l’anello seeger (19), sfilare
la bussola (13) e l’anello elastico (20).
Sfilare l’ingranaggio comando pompa
(12).
Operazioni Rif. Sez.
Rimuovere la carena
destra
E 2
Rimuovere il coperchio
frizione
N 6.2
Removing the oil pump
Undo and remove the screws (9) and
(10) fixing the complete pump.
Remove the oil pump and slide the
two O-Ring (3) and (4) and the two
centering bushes (15) out of the two
casings.
Oil pump disassembly
Vice the oil pump by making sure not
to damage the pump drive gear.
Attenzione
Make sure that vice jaws are
duly protected.
Unscrew the retaining screws (6)
then remove cover (2) from pump
body (5).
Remove plug (14) and slide out spring
(16) and by-pass valve (17). Check for
proper operating conditions.
Remove circlip (19), take out bushing
(13) and snap ring (20).
Remove pump gear (12).
Operations See Sect.
Remove the RH side
fairing
E 2
Remove the clutch
cover
N 6.2
9
10
15
3
4
6 5
6
2
17
14
16
2
19
12
13
