Impianto di alimentazione / Scarico
Fuel system / Exhaust system
sezione / section
L 7
22
A
A
B
C
D
E
F
G
H
L
M
N
P
ST3 - M.Y. 2004 - edizione/edition 00

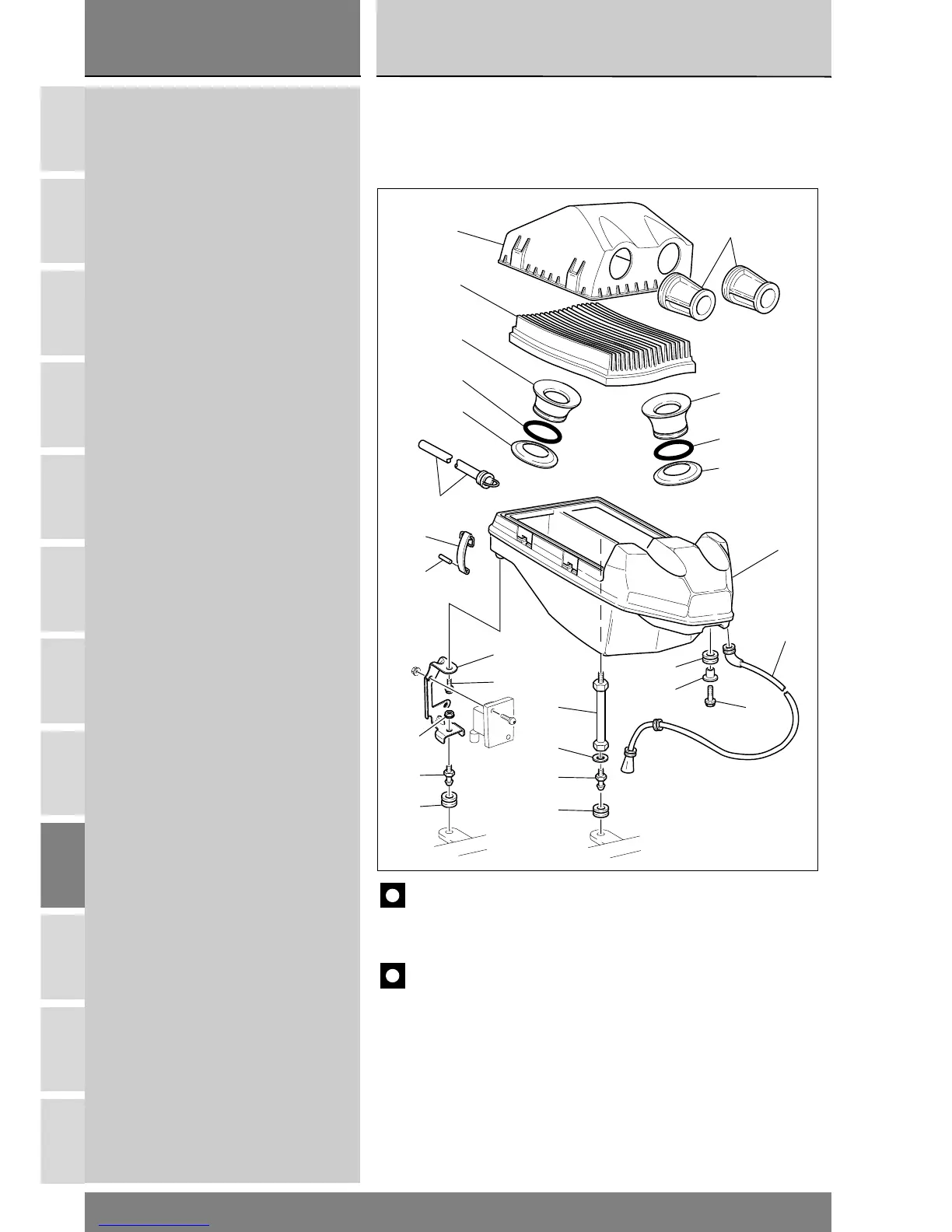

7 - FILTRO ARIA
1 Coperchio scatola filtro
2 Cornetto presa aria
3 Elemento filtrante
4 Cornetto aspirazione aria cilindro verticale
5 Cornetto aspirazione aria cilindro orizzon-
tale
6 Guarnizione OR
7 Guarnizione
8 Tubo sfiato scatola filtro aria
9 Gancio
10 Spina
11 Scatola filtro aria
12 Tubo sfiato
13 Gommino
14 Distanziale
15 Vite
16 Colonnetta
17 Rosetta
18 Piolo
19 Dado
20 Vite
21 Staffa
2
1
3
6
5
7
4
6
7
8
16
21
17
18
13
18
19
13
10
13
14
15
12
11
9
20
7 - AIR FILTER
1 Filter box cover
2 Air inlet horn
3 Filter cartridge
4 Air duct to vertical cylinder
5 Air duct to horizontal cylinder
6O ring
7Seal
8 Filter box breather hose
9 Clip
10 Pin
11 Filter box
12 Breather hose
13 Grommet
14 Spacer
15 Screw
16 Post
17 Washer
18 Stud
19 Nut
20 Screw
21 Bracket
Importante
I riferimenti in grassetto all’interno di questo capitolo indicano che i
particolari richiamati non sono presenti nelle immagini a fianco del testo, ma
devono essere ricercati nella presente tavola esplosa.
Caution
Bold reference numbers in this section identify parts not shown in the
figures next to the text. Look up the exploded view diagram.
