Mototelaio
Frame
sezione / section
H 4
17ST3 - M.Y. 2004 - edizione/edition 00

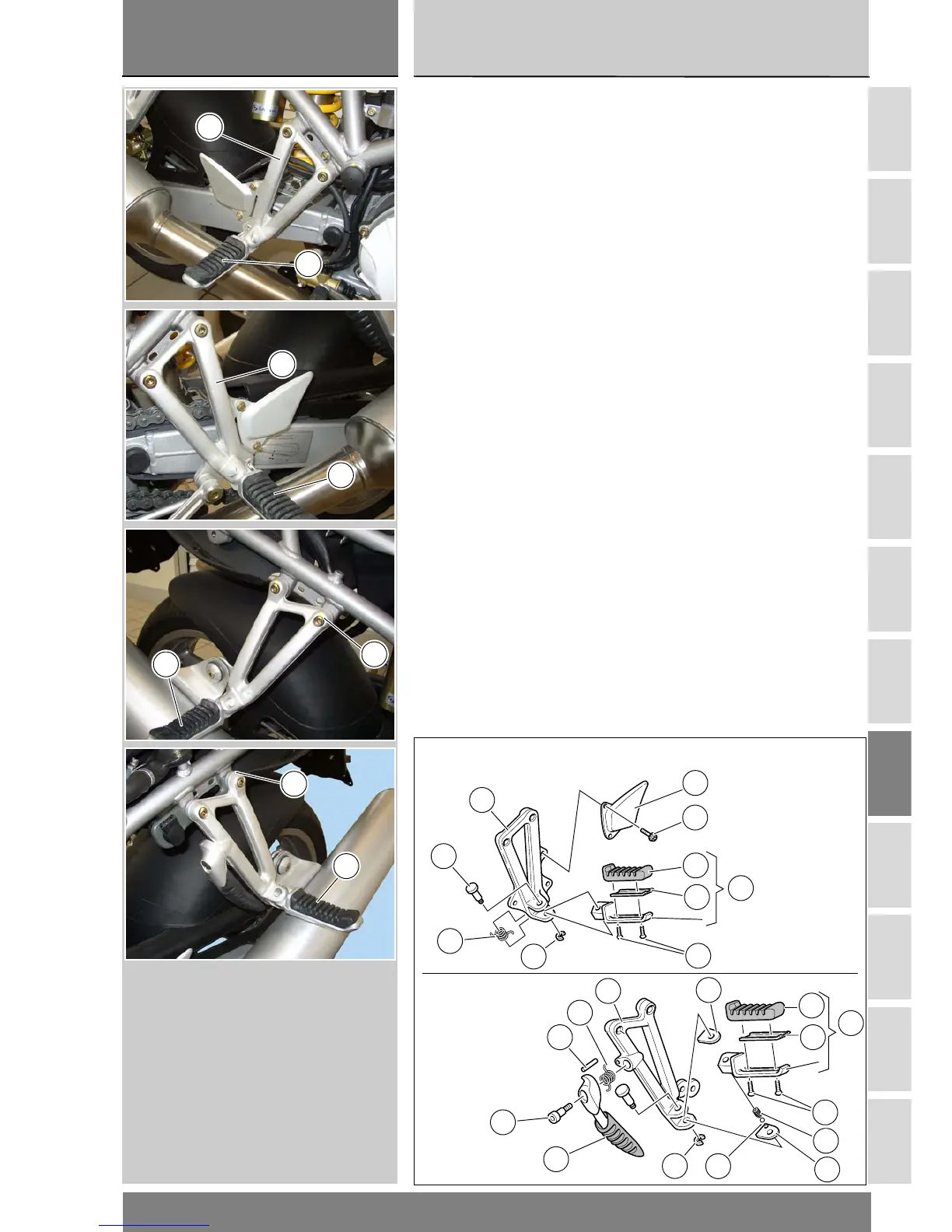

Refer to the exploded diagrams to
remove the rider footpegs (5) and (10)
from their mounting brackets (20) and
(22).
Also refer to the exploded diagrams
to remove and disassemble the
passenger footpegs (12) and (13).
Per la rimozione delle pedane anteri-
ori (5) e (10) dalle piastre portapedane
anteriori (20) e (22) seguire quanto ri-
portato negli esplosi.
Allo stesso modo operare anche per
quanto riguarda la rimozione e la
scomposizione delle pedane posteri-
ori (12) e (13).
7
2
1
4
3
6
8
22
9
5
24
23
25
26
4
12
3
27
14
6
5
14
17
16
PEDANA ANTERIORE/
FRONT FOOTPEG
PEDANA POSTERIORE/
REAR FOOTPEG
10
20
5
22
13
28
12
27
