Keysight x-series Programmer's Reference

3 VMA Mode
3.1 Digital Demod Measurement

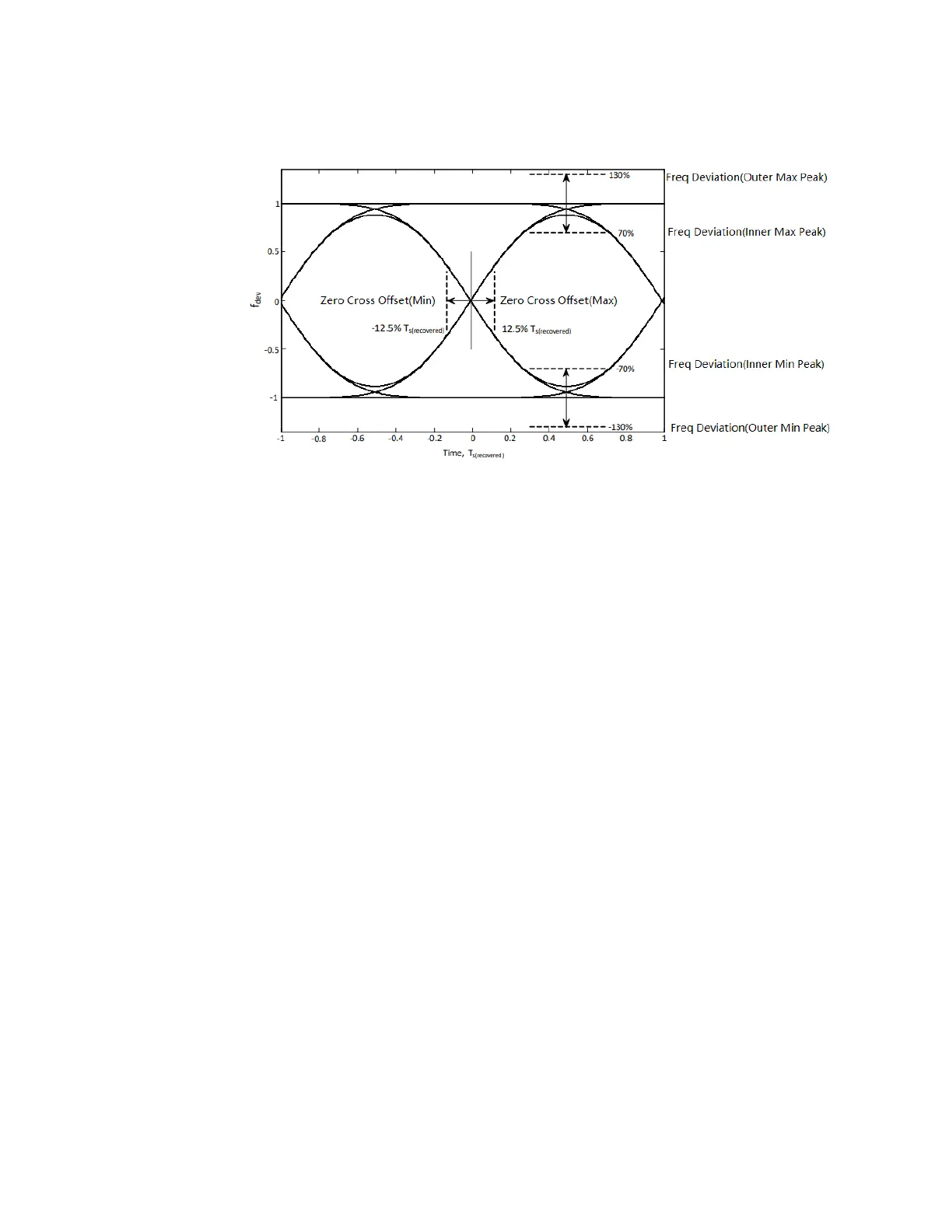

Frequency Deviation Tolerance:
Modulation frequency tolerance is measured as a percentage of the frequency
deviation fdev, dictated by the modulation index. In the case of 2-FSK, the measure
frequency deviation f at decision point shall be constrained to the range of 70% fdev
<|f| <130% fdev.
–
Outer Max Peak is the largest frequency deviation at crest as a percentage of the
frequency deviation.
–
Inner Max Peak is the smallest frequency deviation at crest as a percentage of
the frequency deviation.
–
Inner Min Peak is the smallest frequency deviation at bottom as a percentage of
the frequency deviation.
–
Outer Min Peak is the largest frequency deviation at bottom as a percentage of
the frequency deviation.
Zero Crossing Tolerance:
In the case of 2-FSK, the excursions for the zero crossings for all trajectories of the
eye diagram shall be constrained to within +/-12.5% rms of the symbol time Ts,
–
Zero Crossing Offset(Max) is the maximum zero-crossing offset at the right as
the percentage of the symbol time Ts.
–
Zero Crossing Offset (Min) is the minimum zero-crossing offset at the left as the
percentage of the symbol time Ts.
225 Vector Modulation Analyzer Mode User's &Programmer's Reference

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
