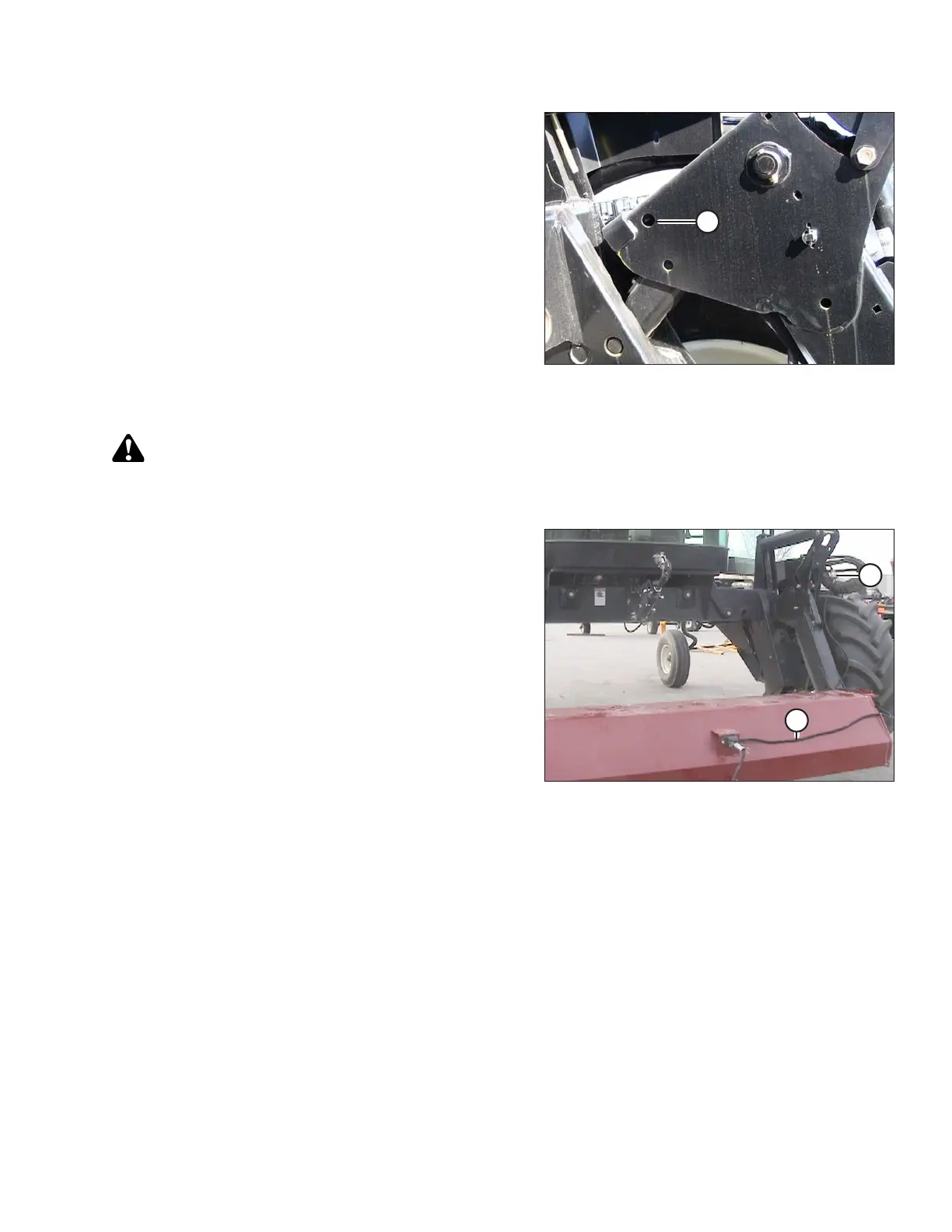

Figure 4.55: Lift Arms
17. Remove the temporary lift pins (A) (should be loose in
lift arm) and place into storage holes on weight box.
Converting from Transport Mode to Field Operation
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
Figure 4.56: Electrical Harness
1. Stop the engine and remove the key from the ignition.
2. Disconnect electrical harness at connector (B) from the
windrower and store harness (A) on weight box.
OPERATION
To Next Page
