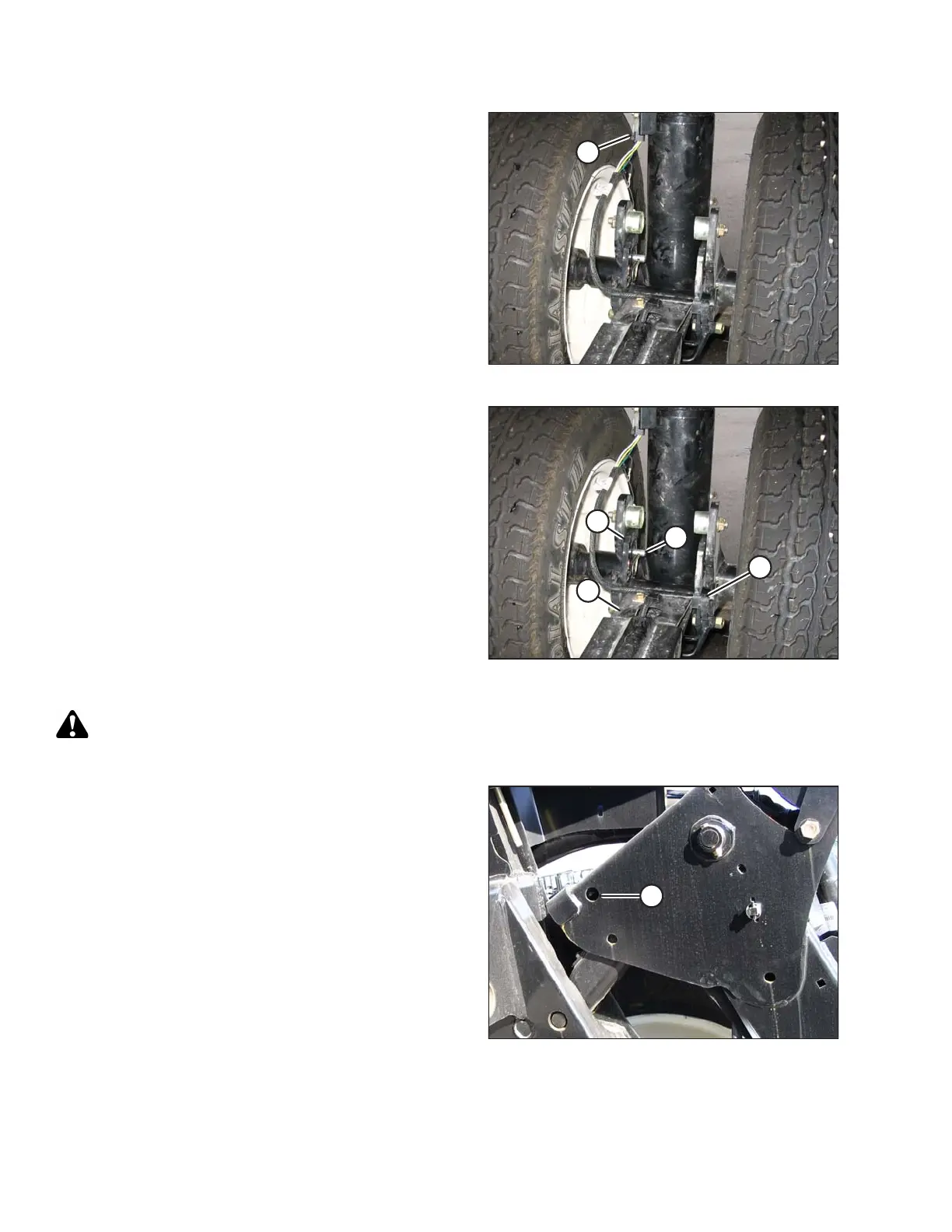

Figure 4.57: Header Transport Wheel
3. Disconnect wiring connector (A) at front wheel.
1000713
A
B
C
D
Figure 4.58: Header Transport Wheel
4. Remove clevis pin (D).
5. Push latch (C) and lift tow-bar (A) from hook. Release
latch and replace clevis pin.
6. Unhook tow-bar from weight box.
CAUTION
Check to be sure all bystanders have cleared the area.
1000712
A
Figure 4.59: Lift Arms
7. Start the engine and lower lift arms until rear of lift arms
floats up and away from the lift arm mechanism.
8. Stop the engine and remove the key from the ignition.
9. Remove temporary lift pins (A) from weight box and
install pins (F) into holes at rear of lift arms.
10. Start the engine and fully raise lift arms. Stop the engine
and remove the key from the ignition.
11. Engage lift cylinder safety props. Refer to 4.4.1
Engaging and Disengaging Header Safety Props: M
Series Self-Propelled Windrower, page 194.
