a. Engage header.
b. Set HEADER INDEX switch (B) to ON.
c. Press the DISPLAY SELECTOR button (E) on the GSL to display ##.## MIN REEL at (A) or press the
FAST (C) or SLOW (D) switch.
The displayed value (##.##) = reel speed (rpm or mph or km/h
28
).
d. Press FAST (C) or SLOW (D) until the desired minimum reel speed is achieved.
2. Set the reel index as follows:
IMPORTANT:
Reel index can only be adjusted while operating at a ground speed faster than minimum reel speed plus
header index value.

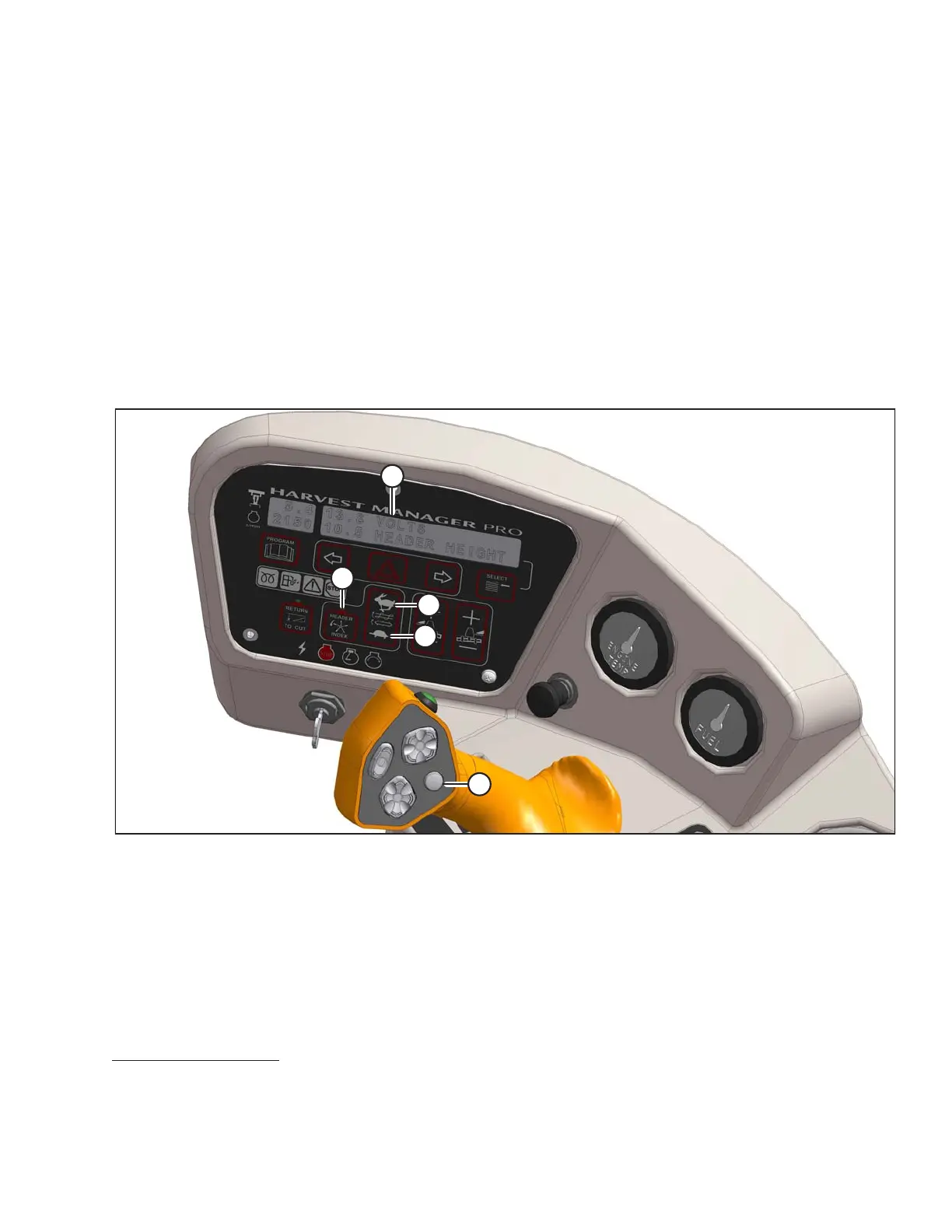

Figure 4.238: Operator Console
1000793
A
B
C
D
E
a. Set the HEADER INDEX switch (B) to ON.
b. Press the DISPLAY SELECTOR button (E) on the GSL to display ##.## ##.# REEL IND
29
or press the
FAST (C) or SLOW (D) switch.
• The displayed value (##.##) = reel speed (mph or km/h or rpm
28
)
• The displayed value (##.#) = reel index value
OPERATION
28. Depending on CDM programming.
29. REEL IND will only be displayed when operating at a ground speed faster than minimum reel speed plus
header index value.
