Trimble S User Manual

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 94 P/N 57150002, Revision 5.0
F
6 Mount transmitter
unit.
A. Thread the tracker
transmitter board
carefully through the
gap and place the ball
in position, see Fig. 5-
88 on page 5-92
B. Mount the transmitter
unit in the opposite
way, mount the two
screws with the
springs, see Fig. 5-90
on page 5-93 .
C. Tighten both screws to
the stop and release:
Horizontal screw - 2
turns (5,0 mm)
Vertical screw - 5
turns (6,5 mm)
D. Mount the tracker
transmitter board, see
Fig. 5-72 on page 5-75
.
It is possible to use a
vernier to check the
height of the screws.

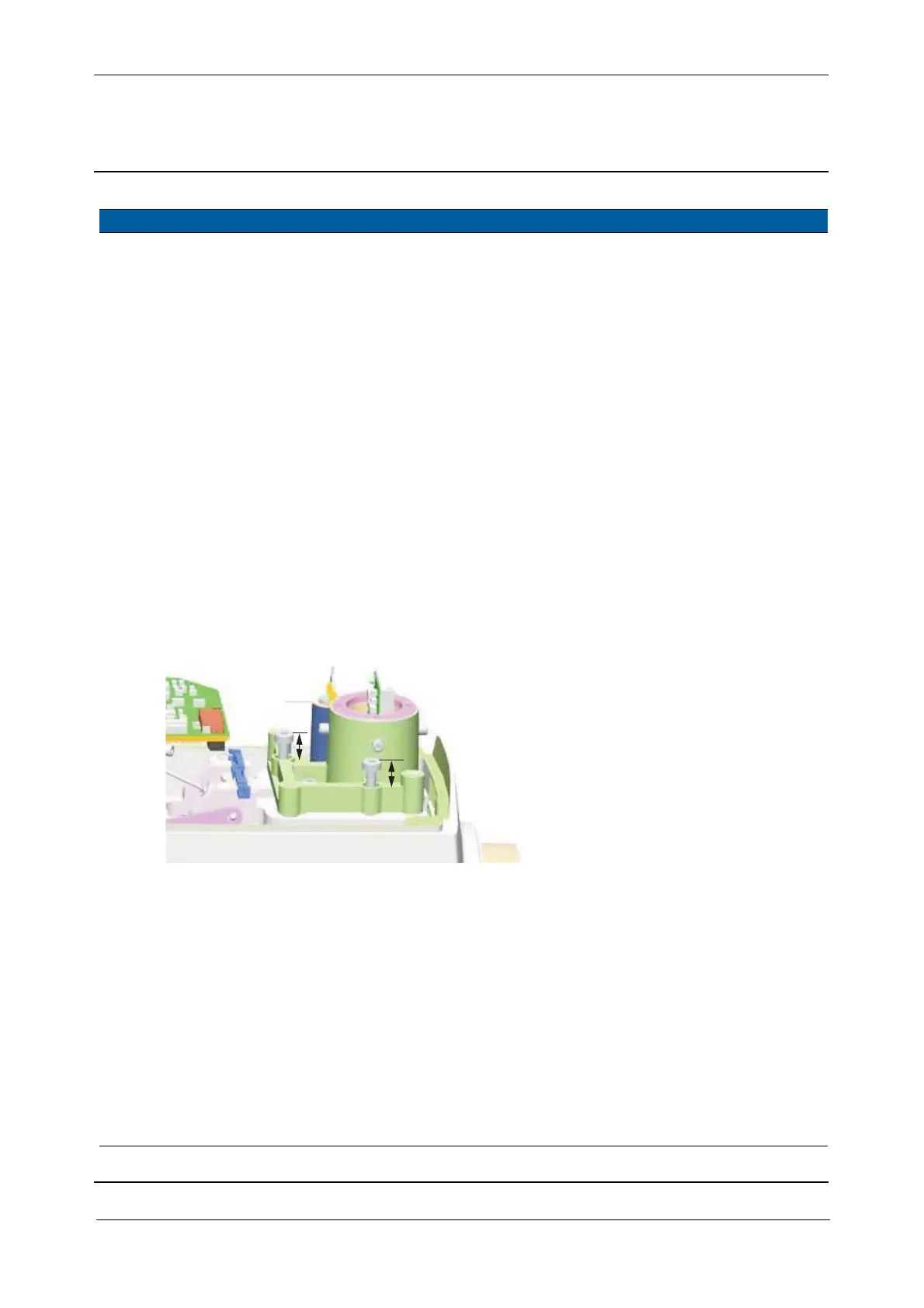

Fig. 5-92 Fixing screws of the Transmitter unit
7 Mount reference fibre
and connect cables.
A. Mount the reference
fibre.
B. Connect transmitter
unit coaxial cable to
Transceiver board.
C. Connect filter motor
cable to the
Transceiver board.
See Fig. 5-89 on page 5-
92 .
8 Perform optical
adjustments.
See page 6-90.
9 Adjust reference fibre. See page 6-72.
Item Performance Action Result Notes
2 turns
1. Tighten the screws
until stop is reached.
2. Then turn them back:
2turns=5,0mm
5turns=6,5mm
(5,0 mm)
5turns
(6,5 mm)
C
C
