Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 95 Trimble S, VX, SPS & RTS Service Manual
F

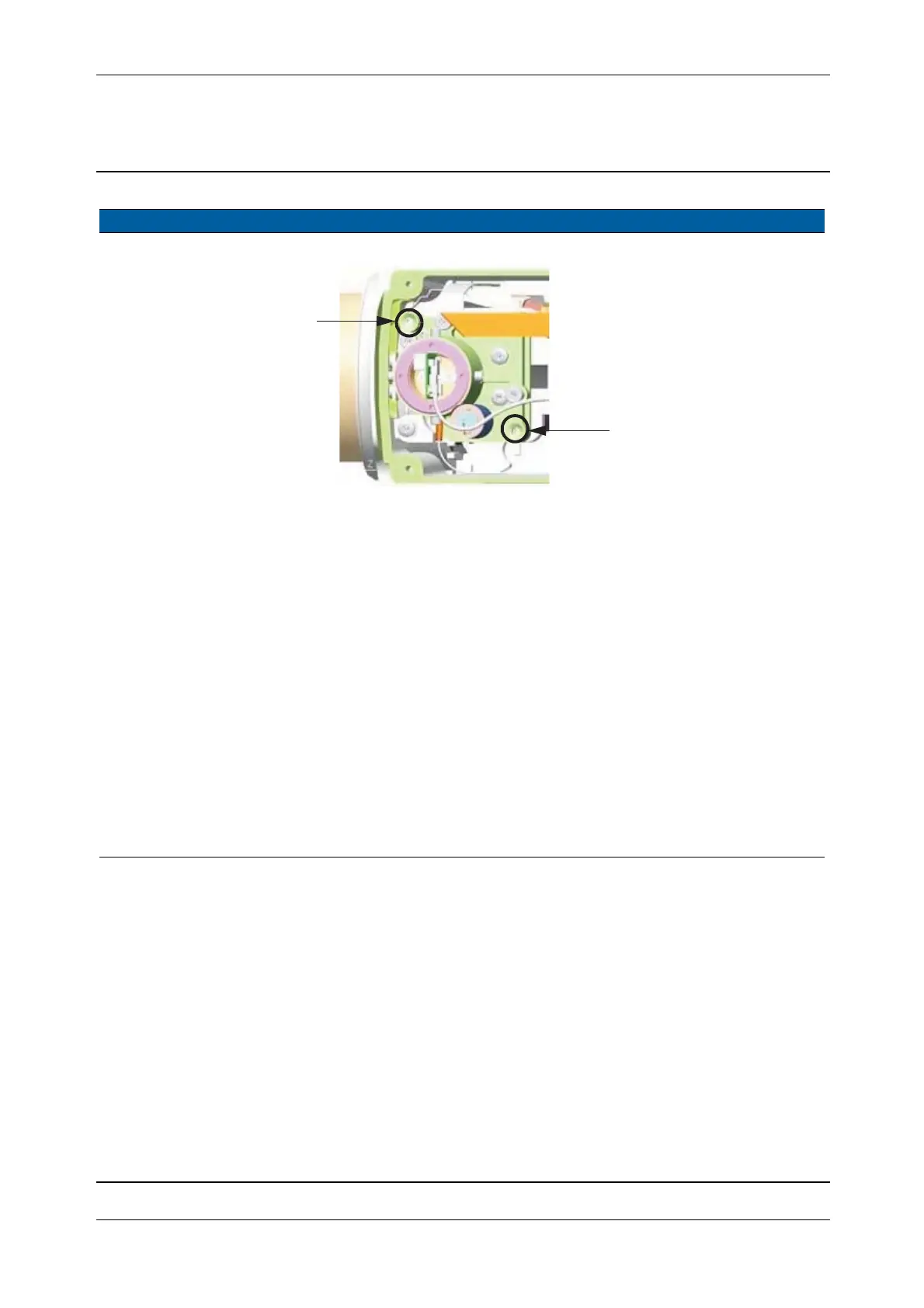

Fig. 6-105 transmitter position screws
5 Position transmitter
beam (laser pointer) to
transmitter prism.
A. Unscrew the long
screw two turns, see
Fig. 6-110 on page 6-
100 .
B. Select
Switch filter
motor HIGH/LOW
check
box.
C. Click Filter motor
LOW.
D. Loosen the three
screws which are
holding the EDM
frame.
E. Position the beam spot
by moving the EDM
frame, see Fig. 6-107
on page 6-96 .
F. Tighten the three
screws.
70 Ncm. The spot has to be
positioned centred
and as low as possible
without reflecting
under the prism, see
Fig. 6-107 on page 6-
96 .
Item Performance Description Result Notes
Vertical adjustment
Horizontal adjustment
