5-10 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Print-Quality Troubleshooting
Engine Test Print
Isolate printer hardware problems to either the Engine Control or Image
Processor Board by running the Engine Test print. If the print is successfully
printed, focus on the Image Processor Board or its components (RAM, Hard
Drive, Configuration Card, etc.). If the print fails, refer to Section 4 for print
engine troubleshooting help.
1. Press the Test Print button located on the Rear Panel.
2. The printer prints the 600 x 600 test print unless an error status from the
Engine Control Board is present.

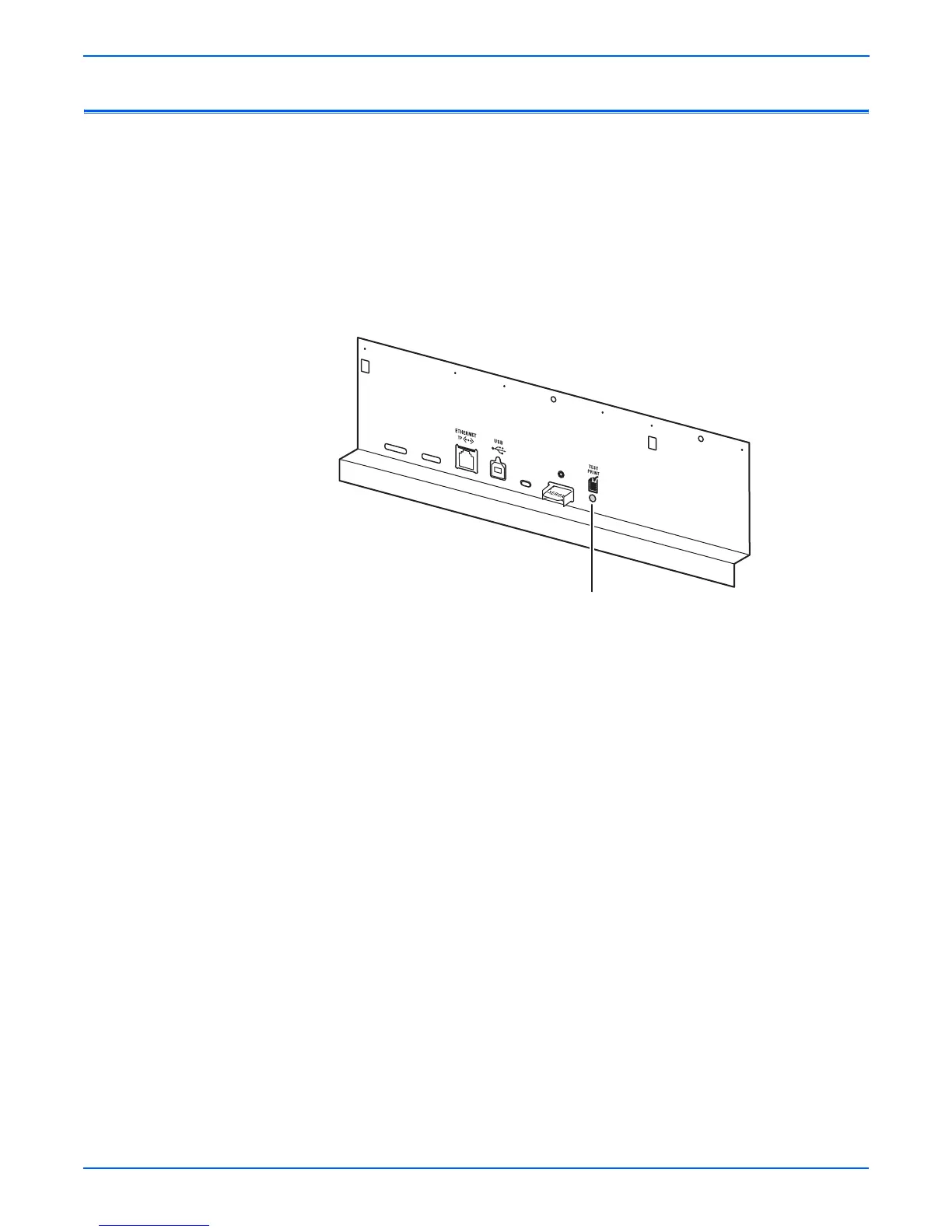

Test Print Button s6360-364
