8-130 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly

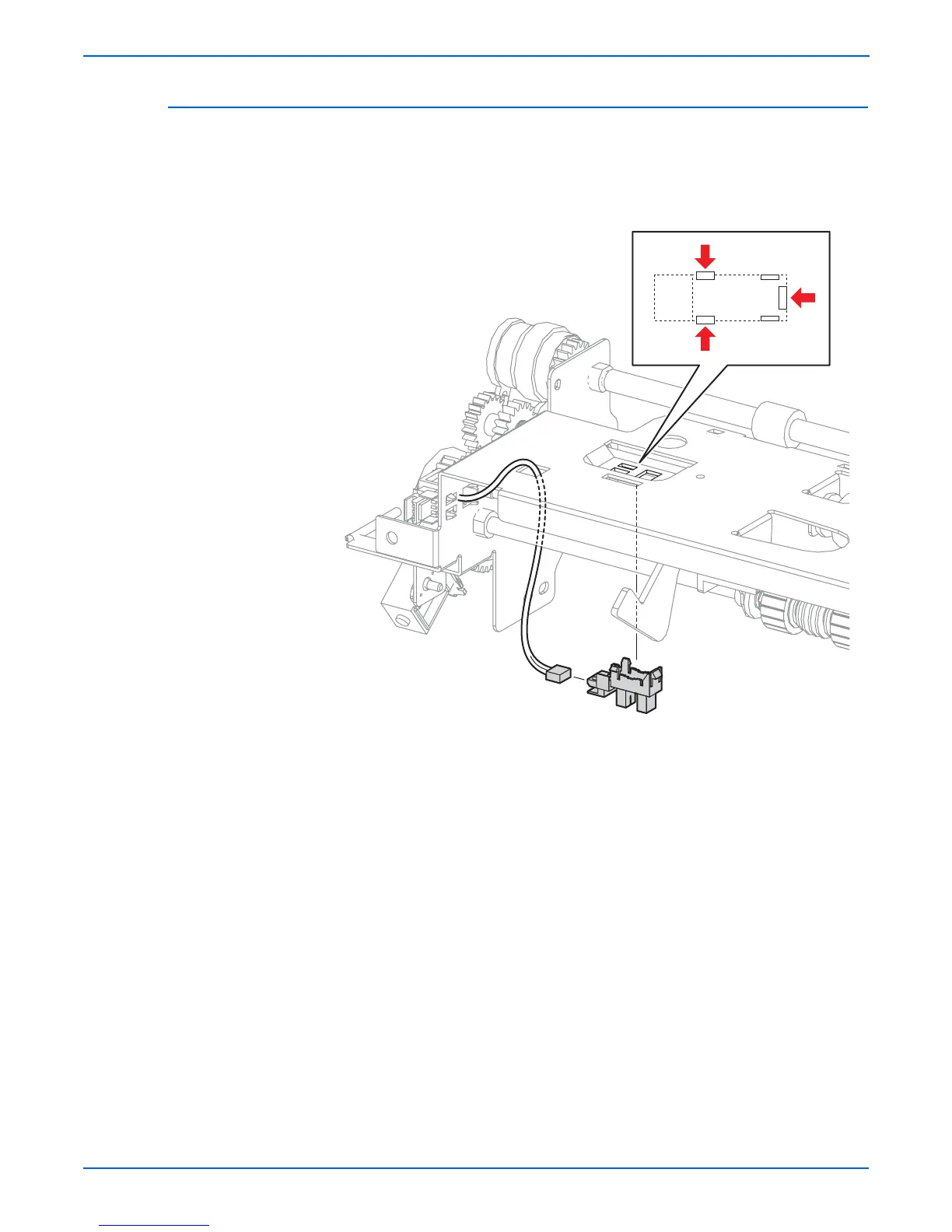

Low Paper Sensor (PL12.5.7)
1. Remove the Paper Pick Assembly (page 8-124).
2. Disconnect the Low Paper Sensor connector (P/J823).
3. Release the 3 hooks on the Low Paper Sensor and remove the sensor.
s6360-267
