Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-81
Service Parts Disassembly

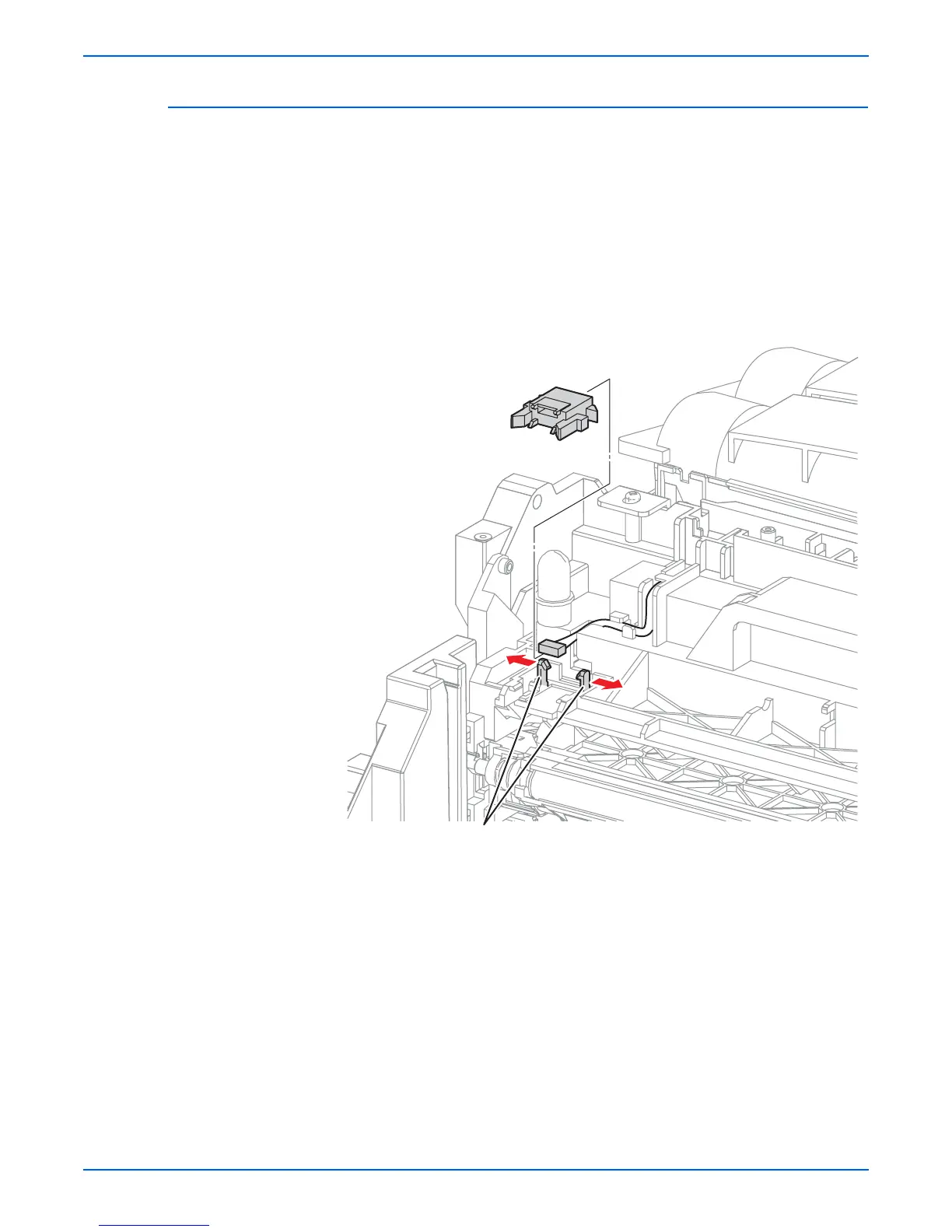

CRUM Connector (PL7.1.4)
1. Open Door A.
2. Remove the Imaging Unit.
3. Disconnect (P/J710) from the CRUM connector and remove the harness
from the guide.
4. Open the hook that secures the CRUM connector to its holder on the
upper left side of Developer Frame Assembly and remove the connector.
Replacement Note
Engage the two front connector guides, and then snap the connector
into place.
s6360-197
Hooks
