8-152 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Retard Roller Assembly (PL11.4.12)

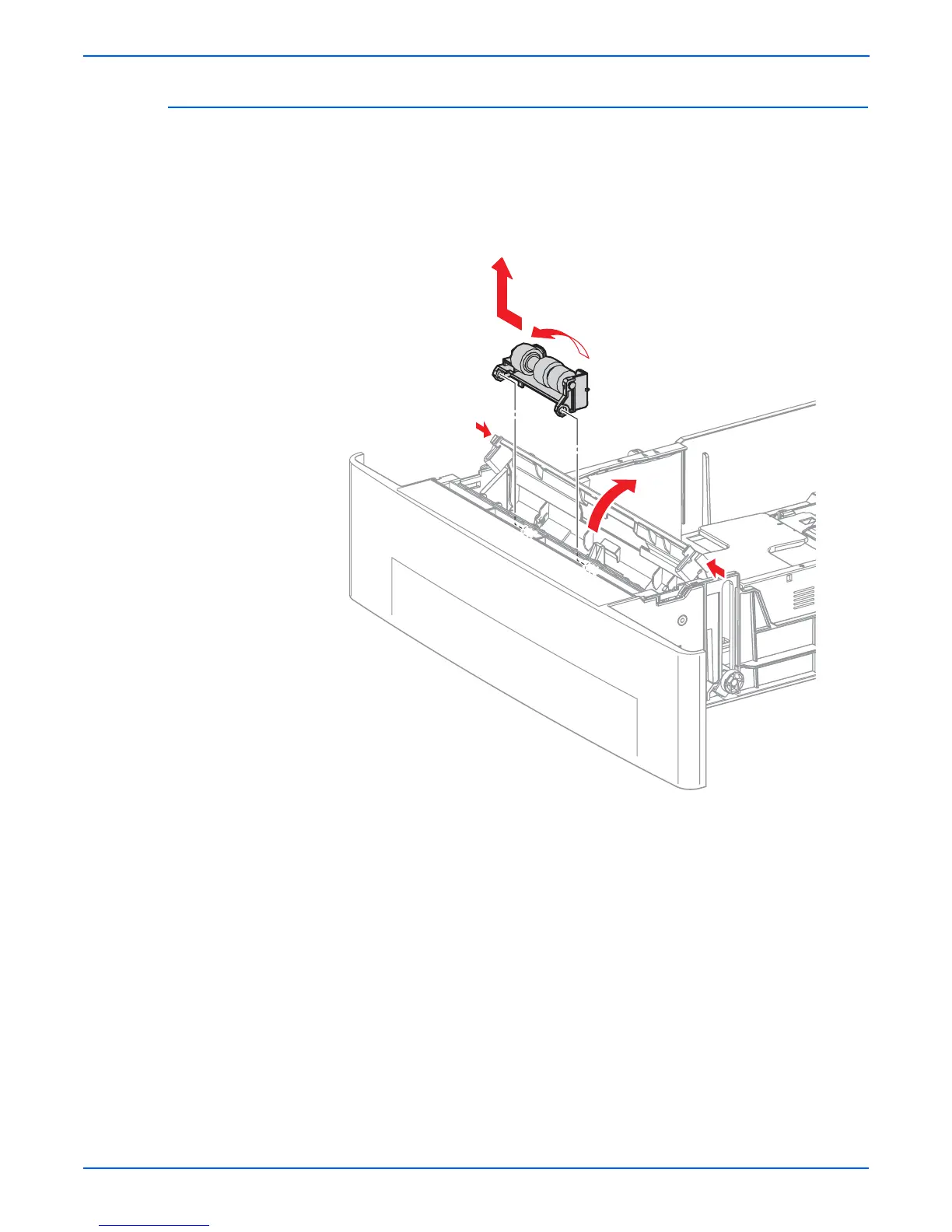

1. Remove the tray.
2. Release the 2 hooks at the left and right of the Turn Chute by pushing
inward and open the chute.
3. Rotate the Retard Holder 90 degrees.
4. Slide the Retard Roller Assembly to the left and remove it from the 2
bosses, and then lift it upward.
s6360-138
