Service Parts Disassembly
Upper Chute (PL3.3.15)
1. Remove the tray.

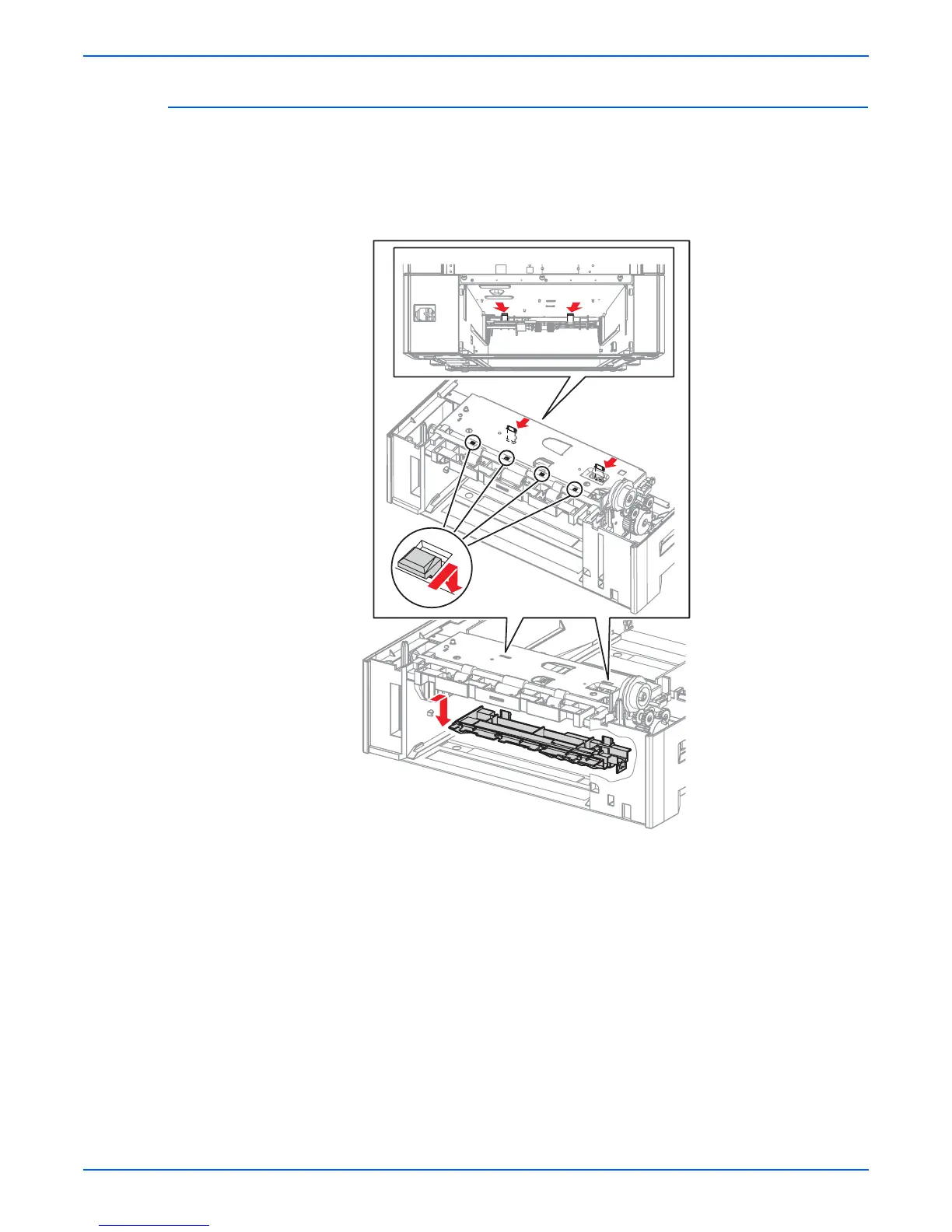

2. Release the 2 hooks that secure the Upper Chute to the Paper Pick
Assembly. Slide the Upper Chute first to the back, release the 4 hooks,
and then remove the Upper Chute downward.
s6360-151
Note
Hooks
